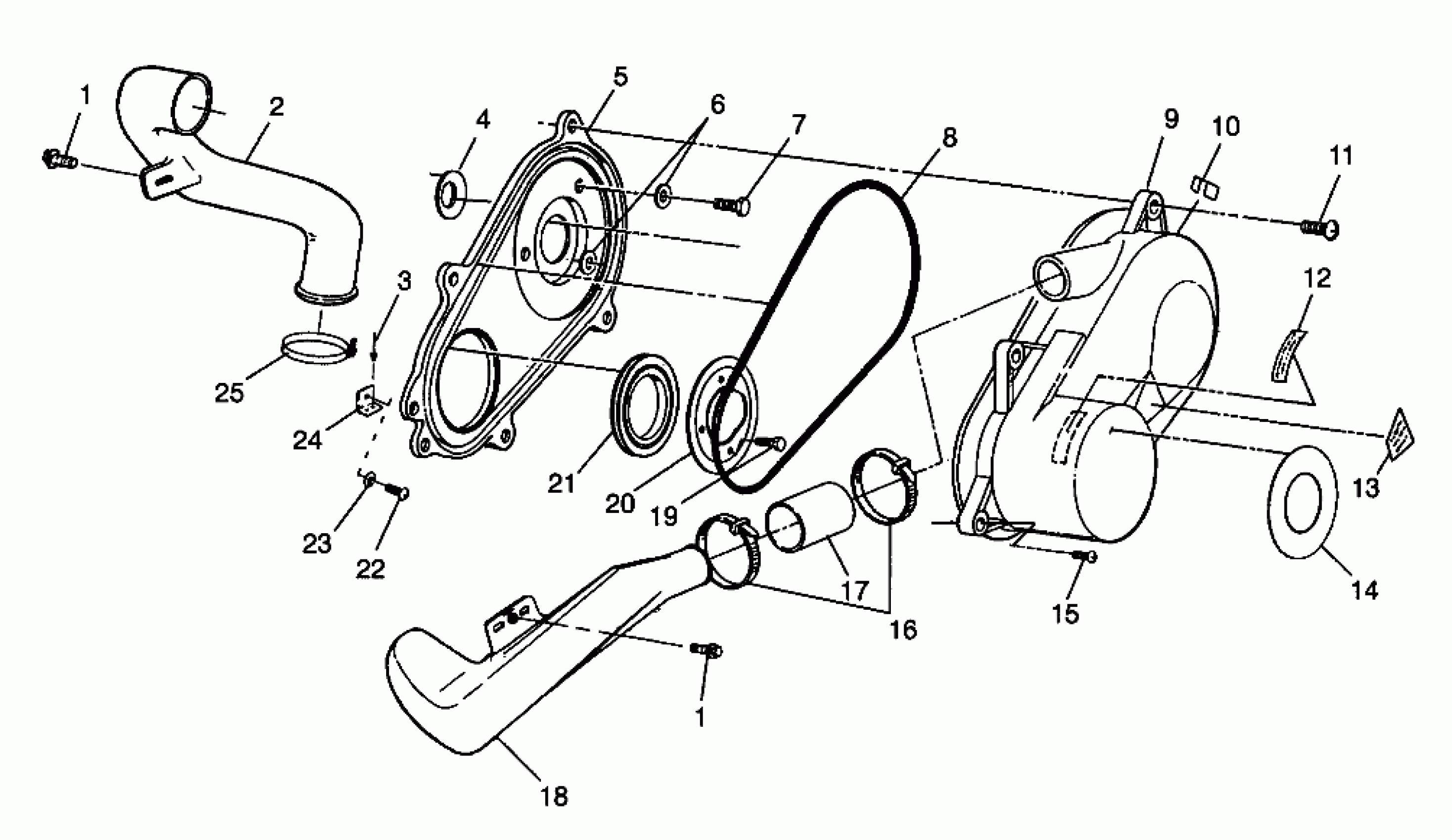

Polaris MAGNUM 2X4 - W98AA42A CLUTCH COVER Magnum 2X4 W98AA42A (4945524552B013) Diagram

#

Description
Price

1

BOLT(10)

7512232

$1.19

1

BOLT(10)

7512232

$1.19

2

DUCT,INLET,DOWN TUBE

5432698

Unavailable

3

RIVET,INTERLOCK,B(50)

7661638

$1.19

4

SEAL,CVR,CASE 1/2 (1/2")

5411180

$24.27

5

COVER,INNER CLUTCH Substituted by 2200791

5432277

Unavailable

6

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.76

7

SCREW

7517219

$4.76

8

SEAL,CLUTCHCOVER

5521301

$32.37

9

COVER,CLUTCH,FRONT Substituted by 5433542

5431961

$190.22

10

CLIP,CLUTCH COVER(10)

7670051

Unavailable

11

SCREW(10)

7512093

$1.19

12

DECAL,CLUTCH COVER Substituted by 7078689

7074946

Unavailable

13

DECAL,ENG/CLUTCH MOD. Substituted by 7078689

7077377

Unavailable

14

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

15

SCREW(10)

7512094

$1.59

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

17

BOOT,CLUTCH INTAKE

5410421

$11.32

18

DUCT,AIR OUT,CLUTCH

5432615

Unavailable

19

Asm., Screw & Washer (See Pg. A37, Ref. 6)

----

Unavailable

20

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

$36.41

21

Seal, Cover Case

5410575

$44.51

22

SCREW(10)

7512095

$4.76

23

WASHER(10)

7555935

$2.38

24

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

25

CLAMP, NARROW BAND(10)

7080511

$4.76
