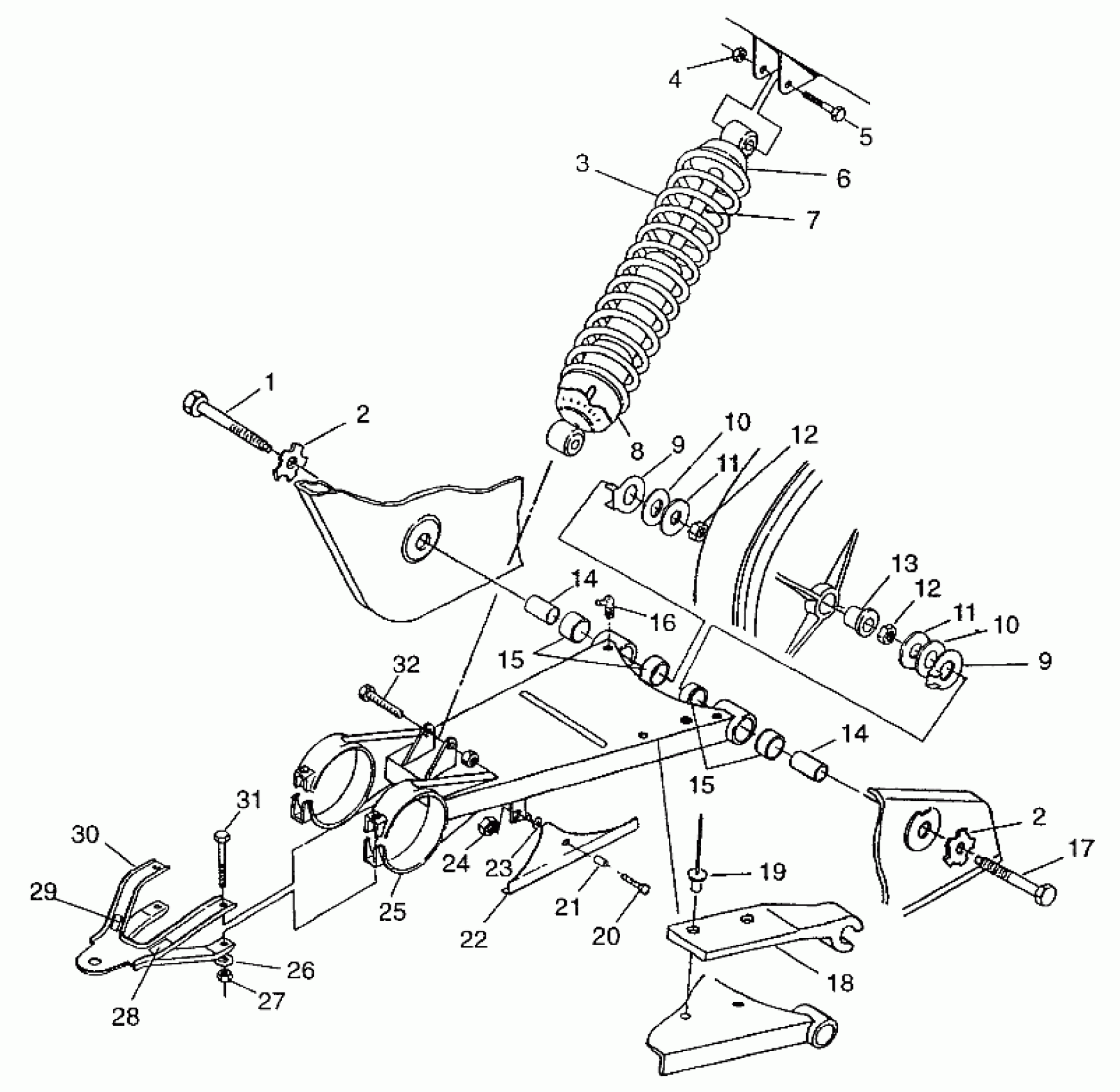

Polaris MAGNUM 2X4 - W97AA42A SWING ARM/SHOCK MOUNTING Magnum 2X4 W97AA42A (4940704070B010) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.81

2

PLATE,BOLT LOCK

5220958

$36.41

2

PLATE,BOLT LOCK

5220958

$36.41

3

SPRING,COMP,REAR

7041204-067

$64.99

4

NUT-LOCK(10)

7542439

$1.19

5

BOLT(10)

7515415

$1.19

6

RETAINER,SHOCK

5241147

$10.32

7

SHOCK,REAR

7041447

Unavailable

8

CAM,ADJUST,SPRING

5630551

$36.41

9

BUSHING

5240952

Unavailable

9

BUSHING

5240952

Unavailable

10

BUSHING Substituted by 5433414

5431977

$19.84

10

BUSHING Substituted by 5433414

5431977

$19.84

11

WASHER(10)

7555911

$4.76

11

WASHER(10)

7555911

$4.76

12

NUT, LOCK(10)

7542602

Unavailable

12

NUT, LOCK(10)

7542602

Unavailable

13

Bushing, Pivot (See Pg. A35, Ref. 4)

----

Unavailable

14

BUSHING,SWING ARM

5020793

$8.73

14

BUSHING,SWING ARM

5020793

$8.73

15

BUSHING,SWING ARM Substituted by 5433417

5431972

$8.73

15

BUSHING,SWING ARM Substituted by 5433417

5431972

$8.73

16

FITTING, LUBE. (45

7080438

$10.32

17

BOLT, SHOULDER

7512702

Unavailable

18

GUIDE, CHAIN

5431310

$32.37

19

RIVET(50)

7621433

$1.19

20

SCREW-FLANGED(10)

7515304

$5.56

21

Bushing

5332828

$9.70

22

GUARD, CHAIN

5430776

$36.41

23

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

24

NUT LOCK(10)

7542321

$1.19

25

ARM ASM,SWING

1580090

Unavailable

26

WASHER(10)

7555883

$3.97

27

NUT, LOCK,(10)

7542503

$10.32

28

DECAL,CHAIN FREE PLAY

7074752

Unavailable

29

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

30

KIT, ATV HITCH Substituted by 2873036

2200472

Unavailable

31

BOLT(10)

7512576

$7.94

32

BOLT(10)

7515438

$4.76
