Description

Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

HOSE CLAMP, RED

7080003

$1.49

6

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

7

PLUG

7051535

Unavailable

8

BOLT

7517102

Unavailable

9

WASHER,COPPER,14MM.

7555896

$1.49

10

TUBE,BANJO RETURN

7052152

Unavailable

11

DIPSTICK

5431677

Unavailable

12

O RING

5410889

Unavailable

13

HOSE, 3/8"ID

5411036

Unavailable

14

CLAMP-HOSE,.875-SS

7080474

$8.40

15

FITTING,HOSE BR

7052106

$6.23

16

SCREEN,OIL FILTER

2530014

$9.91

17

TANK,OIL,LH

5131323

Unavailable

18

Grommet

5411042

Unavailable

19

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

20

BUSHING,MTG.

5333204

$26.39

21

WASHER(10)

7558301

$1.49

22

SCREW(10)

7512242

$2.39

23

PLUG,MAG.12 M.

7051524

$27.99

24

WASHER

5850135

$3.19

25

SCREW(10)

7515158

$4.79

26

TANK,OIL,RH.

5131004

$87.19

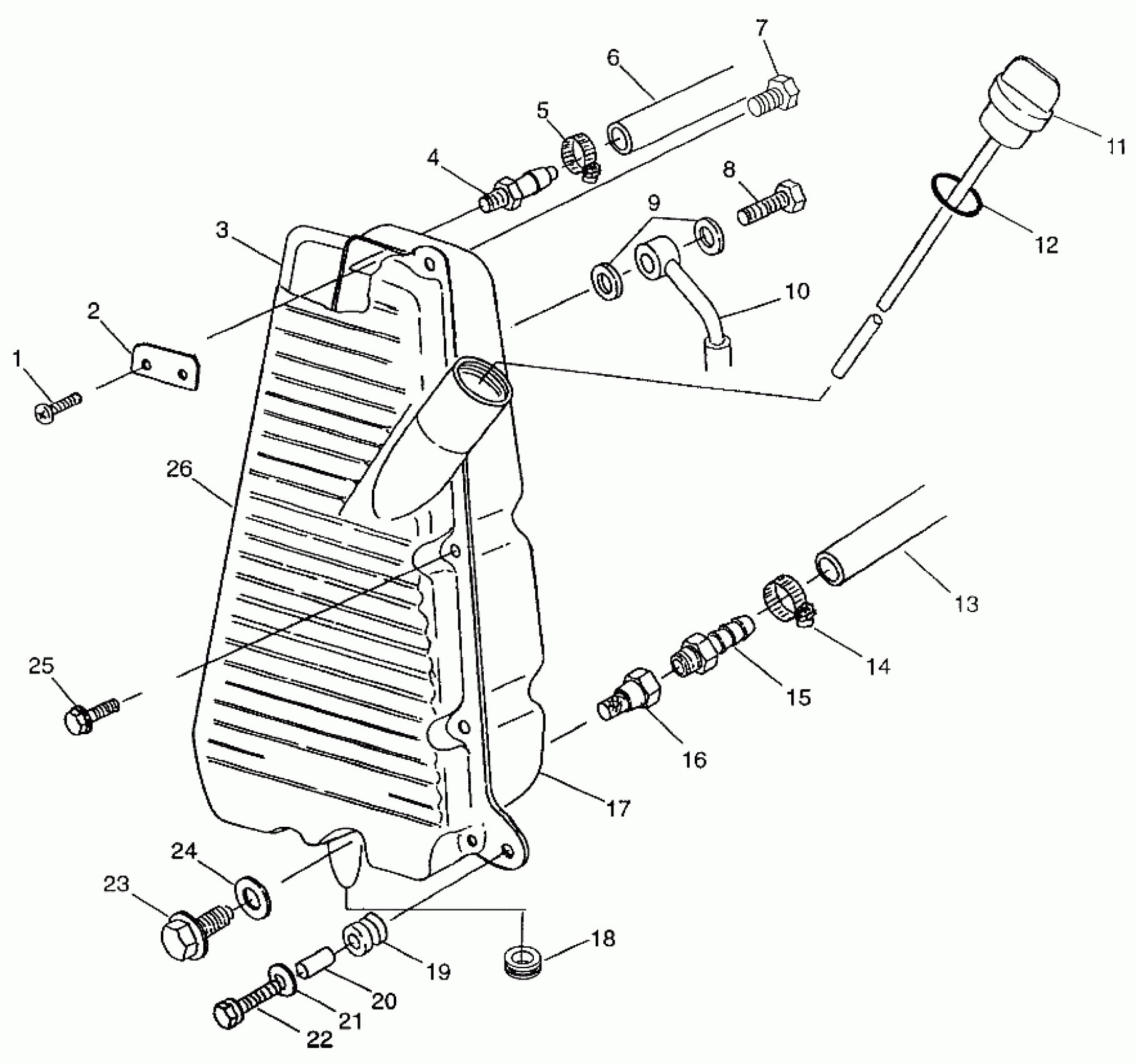

Polaris MAGNUM 2X4 - W97AA42A OIL TANK Magnum 2X4 W97AA42A (4940704070A012) Diagram

SCREW-SEMS(10)

PLATE,VENT,OIL TANK

GASKET,OIL RESERVOIR

Fitting

HOSE CLAMP, RED

LINE,BREATHER,3/8 ID.

PLUG

BOLT

WASHER,COPPER,14MM.

TUBE,BANJO RETURN

DIPSTICK

O RING

HOSE, 3/8"ID

CLAMP-HOSE,.875-SS

FITTING,HOSE BR

SCREEN,OIL FILTER

TANK,OIL,LH

Grommet

GROMMET,MTG,RESERVOIR (10)

BUSHING,MTG.

WASHER(10)

SCREW(10)

PLUG,MAG.12 M.

WASHER

SCREW(10)

TANK,OIL,RH.
