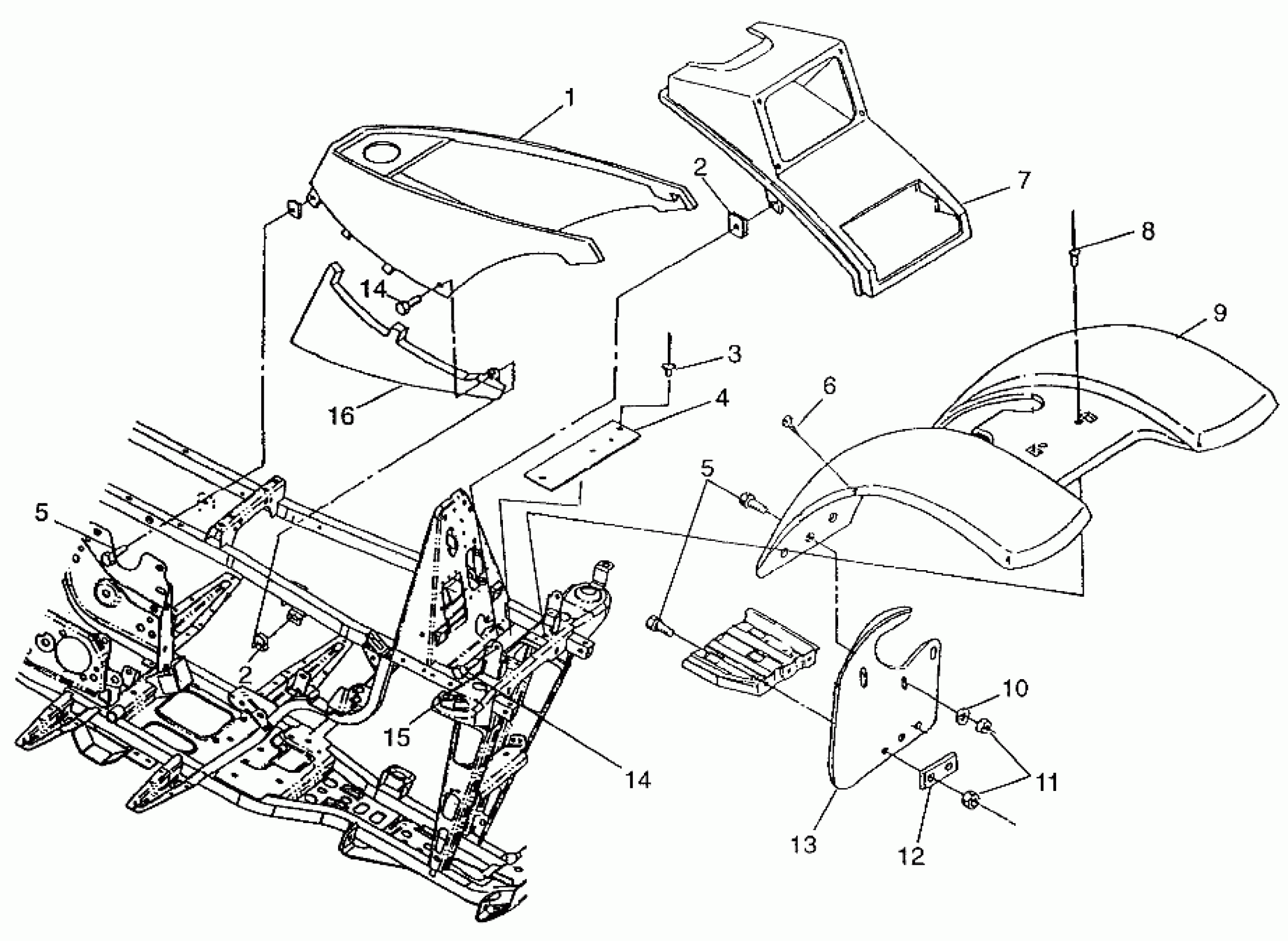

Polaris MAGNUM 2X4 - W97AA42A FRONT CAB Magnum 2X4 W97AA42A (4940704070A005) Diagram

COVER,FUELTANK(P.RED)

5431197-136

Unavailable

NUT, SPEED(10)

7670060

$3.99

NUT, SPEED(10)

7670060

$3.99

RIVET,3/16X.402(50)

7621432

$1.49

STRAP,MTG,FUELPUMP

5211547-067

$2.02

BOLT, BLACK(10)

7512282

$1.49

BOLT, BLACK(10)

7512282

$1.49

CLIP, PUSH-ON(10)

7670052

$1.99

Cover, Headlight (See Pg. A15, Ref. 8)

-------

Unavailable

RIVET(50)

7621460

$1.49

CAB ASM,FRT,POR.RED Substituted by 2631926-136 (Incl. Warning Decals)

2631597-136

Unavailable

WASHER, FLAT(10)

7555859

$1.49

NUT-LOCK(10)

7542122

$1.49

BRKT, LH MUD FLAP

5211131-067

Unavailable

MUDFLAP,RH,FRT.

5850120

Unavailable

MUDFLAP,LH,FRT.

5850119

$12.63

BOLT(10)

7512232

$1.49

BOLT(10)

7512232

$1.49

PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426

5410012

Unavailable

COVER,RH(P.RED)SIDE Substituted by 5433579-136

5430971-136

Unavailable

COVER,SIDEPANEL,RED

5431675-136

Unavailable
