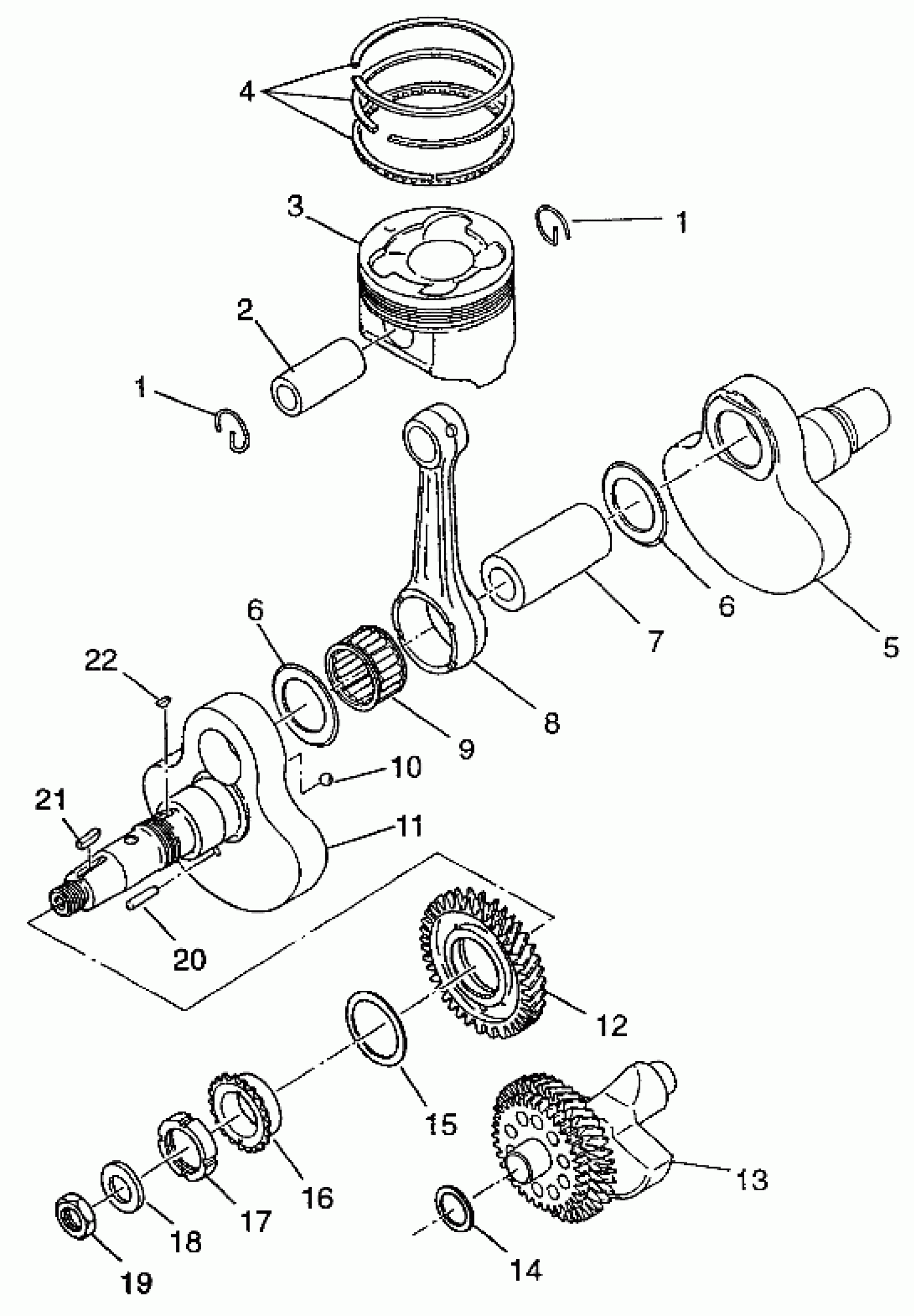

Polaris MAGNUM 2X4 - W97AA42A CRANKSHAFT and PISTON Magnum 2X4 W97AA42A (4940704070C010) Diagram

#

Description
Price

1

CLIP(10)

3085534

Unavailable

1

CLIP(10)

3085534

Unavailable

2

PIN,PISTON

3084886

Unavailable

3

PISTON&PIN ASM,STD (Std) (Incl. 2)

3085538

Unavailable

3

PISTON&PIN ASM,0.25 O/S (.010"/0.25 mm O/S) (Incl. 2)

3085539

Unavailable

3

PISTON&PIN ASM,0.50 O/S (.020"/0.50 mm O/S) (Incl. 2)

3085540

Unavailable

4

RING SET,(.50MM O/S) (.020"/0.50 mm O/S)

3084889

$37.00

4

RING SET,(.25MM O/S) (.010"/0.25 mm O/S)

3084888

Unavailable

4

RING SET, STD. (Std)

3084887

Unavailable

5

CRANKSHAFT #2 (PTO End)

3085340

$133.99

6

SPACER,CRANK PIN

3085344

$12.79

6

SPACER,CRANK PIN

3085344

$12.79

7

Pin, Crank

3085341

Unavailable

8

ROD,CONNECTING

3085342

Unavailable

9

BEARING,LARGE END Substituted by 3085343

3085400

$78.56

10

BALL, STEEL

3085024

$5.59

11

CRANKSHAFT #1 (MAG End)

3085339

$164.79

11

CRANKSHAFT (Incl. 5-12, 20)

3084881

$774.99

12

GEAR,BALANCER #1 Substituted by 3085852

3085401

Unavailable

13

SHAFT,BALANCER *

3085404

Unavailable

14

SPACER

3084897

$6.39

14

SPACER

3084895

$6.39

14

SPACER

3084896

$6.39

15

SPACER

3084894

$19.99

15

SPACER

3240088

$10.39

15

SPACER

3084893

$19.99

15

SPACER

3084892

$12.79

16

SPROCKET 1

3084882

Unavailable

17

NUT,SLIT

3085528

$35.99

18

WASHER Substituted by 3086767

3083904

Unavailable

19

LOCKNUT

3083905

Unavailable

20

Pin, Dowel

3085346

Unavailable

21

KEY

3081447

Unavailable

22

KEY Substituted by 3081543

3080130

Unavailable
