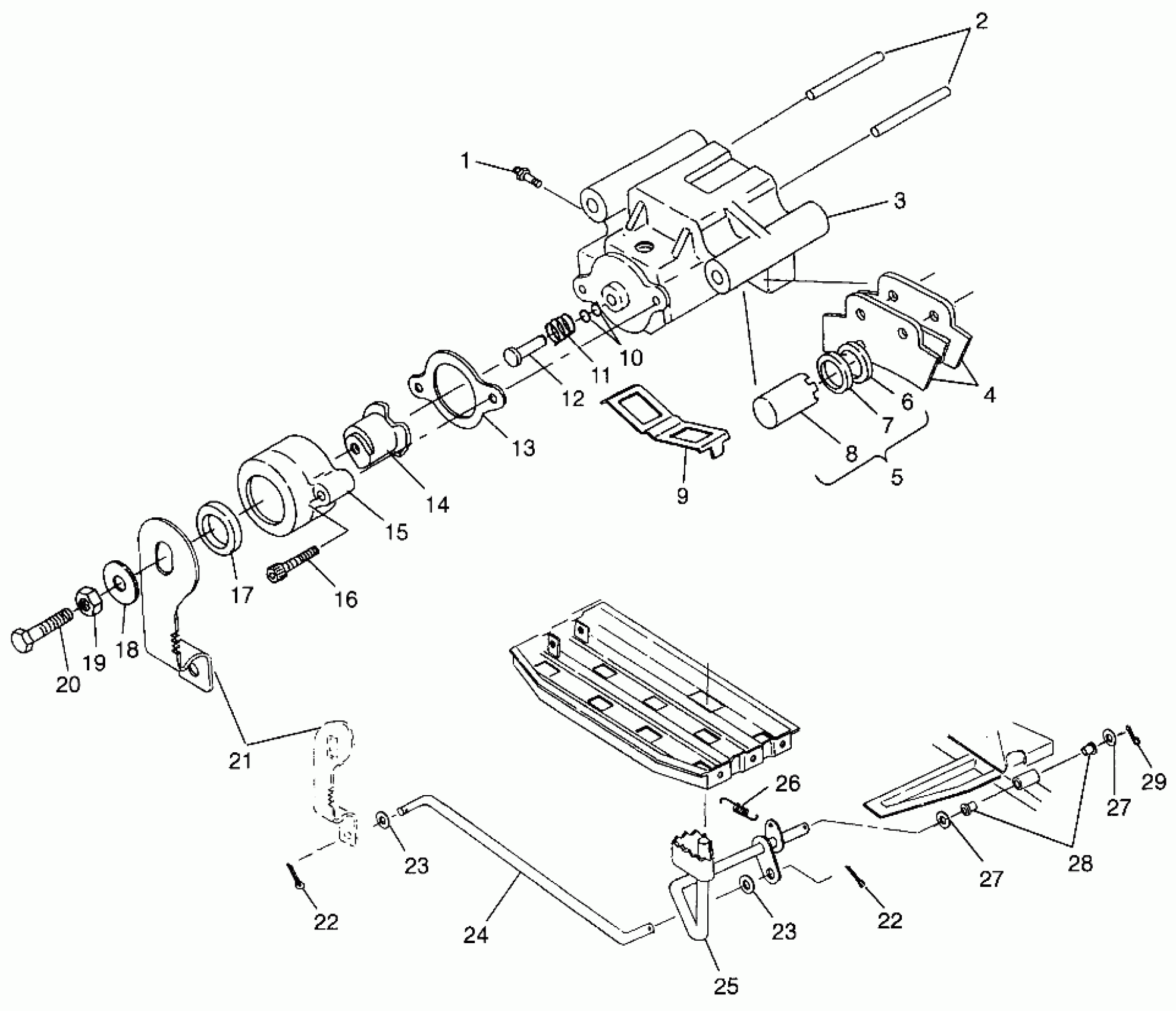

Polaris MAGNUM 2X4 - W967544 REAR BRAKE Magnum 2X4 W967544 (4936033603C001) Diagram

#

Description
Price

1

SCREW,BLEEDER

7080352

$3.17

2

PIN, DOWEL(10)

7661820

$13.99

3

CALIPER,R.BRAKE,MACH

5131272

Unavailable

4

KIT,R.BRAKEPAD,HVY.DUTY

2200899

Unavailable

5

KIT-PISTON & SEAL (Incl. 6 - 8)

2200463

$97.76

6

Square Ring (.134 Sq.) (See Pg., Ref.)

----

Unavailable

7

Square Ring (.094 Sq.) (See Pg., Ref.)

----

Unavailable

8

Caliper, Piston (See Pg., Ref.)

----

Unavailable

9

SPRING,ANTI-RATTLE

5240993

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020666

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

RAMP,MOVEABLE BRAKE Substituted by 2200905

5630458

Unavailable

15

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

16

SCREW(10)

7512173

Unavailable

17

SEAL, BRAKE

3610026

Unavailable

18

WASHER, SPRING(10)

7555828

Unavailable

19

NUT(10)

7542129

$4.76

20

BOLT

7515145

Unavailable

21

ARM,BRAKE CALIPER

5240624

Unavailable

22

PIN COTTER(10)

7661203

$1.19

22

PIN COTTER(10)

7661203

$1.19

23

WASHER(10)

7555806

$0.79

23

WASHER(10)

7555806

$0.79

24

ROD, BRAKE

5224531

$51.59

25

FOOTBRAKE,BLK.

1910144-067

Unavailable

26

SPRING-EXHAUST(10)

7042029

$5.65

27

WASHER(10)

7555919

$4.99

27

WASHER(10)

7555919

$4.99

28

BUSHING-PEDAL PIVOT

5431107

$8.73

29

COTTER PIN(10)

7661401

$0.79
