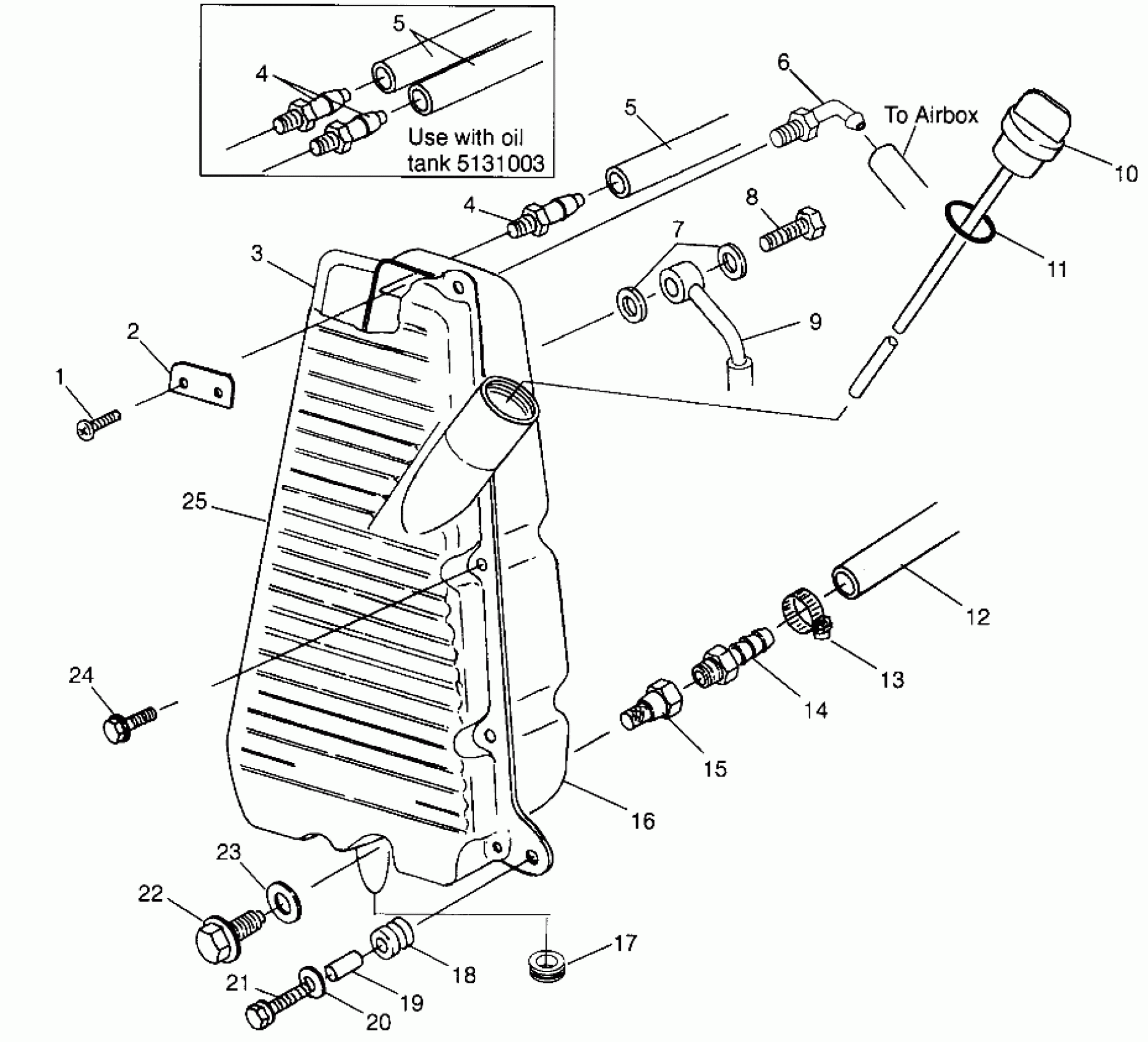

Polaris MAGNUM 2X4 - W967544 OIL TANK Magnum 2X4 W967544 (4936033603A012) Diagram

#

Description
Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

FITTING,SURGE TANK,(10)

7052099

$4.79

4

FITTING,SURGE TANK,(10)

7052099

$4.79

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

5

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

6

FITTING, 90 DEG. NOTE: Use With Oil Tank PN 5131003

7052144

Unavailable

7

WASHER,COPPER,14MM.

7555896

$1.49

8

BOLT

7517102

Unavailable

9

TUBE,BANJO,RETURN (Use with Oil Tank PN 5131003)

7052109

Unavailable

9

TUBE,BANJO RETURN (Use with Oil Tank PN 5131323)

7052152

Unavailable

10

DIPSTICK

5431677

Unavailable

11

O RING

5410889

Unavailable

12

HOSE, 3/8"ID

5411036

Unavailable

13

CLAMP-HOSE,.875-SS

7080474

$8.40

14

FITTING,HOSE BR

7052106

$6.23

15

SCREEN,OIL FILTER

2530014

$9.91

16

TANK,OIL,LH

5131323

Unavailable

16

TANK,OIL,LH,CAST

5131003

Unavailable

17

Grommet

5411042

Unavailable

18

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

19

BUSHING,MTG.

5333204

$26.39

20

WASHER(10)

7558301

$1.49

21

SCREW(10)

7512242

$2.39

22

PLUG,MAG.12 M. (12mm)

7051524

$27.99

23

WASHER

5850135

$3.19

24

SCREW(10)

7515158

$4.79

25

TANK,OIL,RH.

5131004

$87.19
