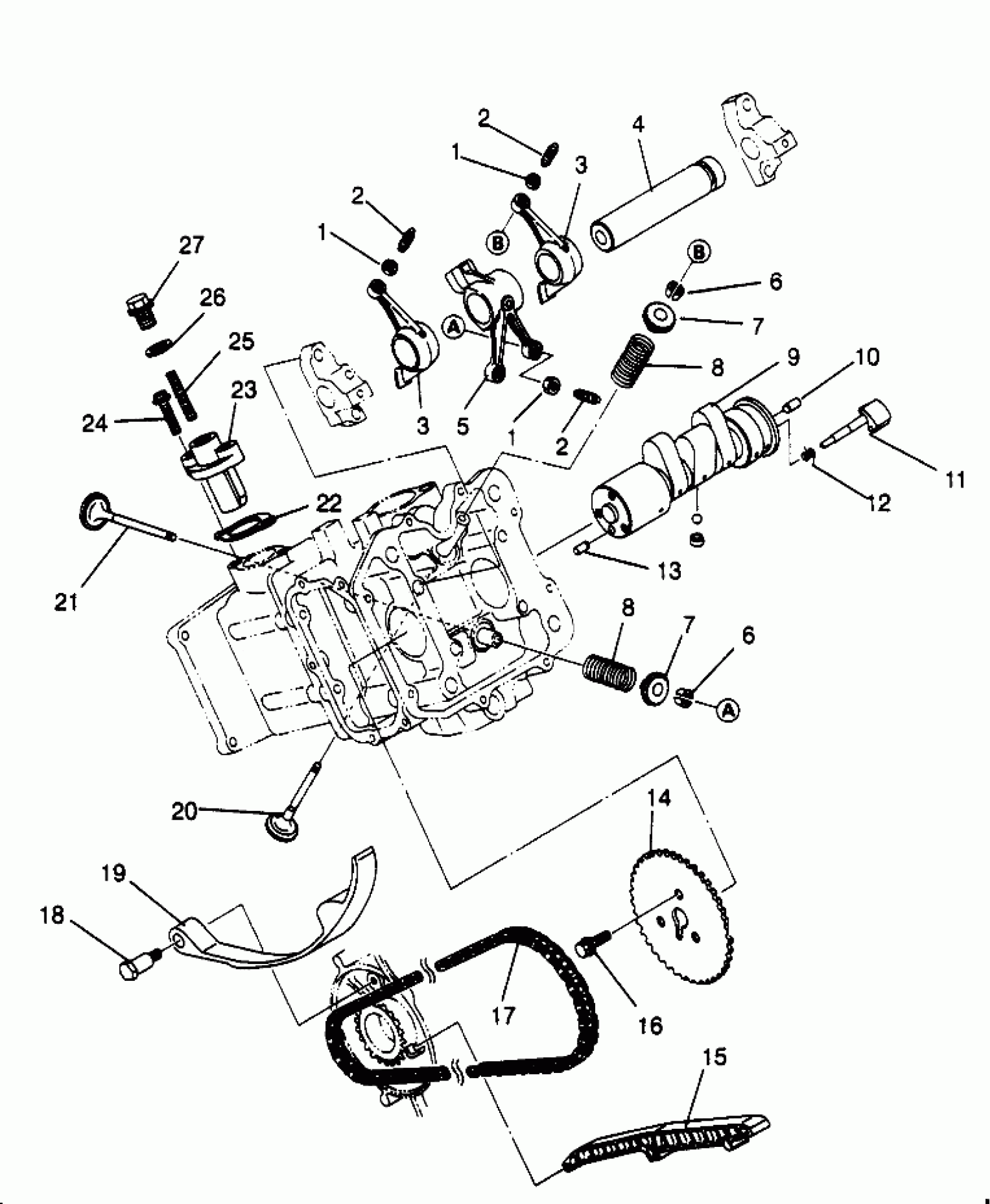

Polaris MAGNUM 2X4 - W967544 INTAKE and EXHAUST Magnum 2X4 W967544 (4936033603C011) Diagram

#

Description
Price

1

NUT(10)

3084912

$3.99

1

NUT(10)

3084912

$3.99

1

NUT(10)

3084912

$3.99

2

SCREW, ADJ.

3084911

$9.59

2

SCREW, ADJ.

3084911

$9.59

2

SCREW, ADJ.

3084911

$9.59

3

ROCKERARM ASM,INTAKE * (Incl. 1, 2, 3)

3084910

$115.99

3

ROCKERARM ASM,INTAKE * (Incl. 1, 2, 3)

3084910

$115.99

4

SHAFT,ROCKER

3084909

$51.99

5

ROCKERARM ASM,EXHAUST * (Incl. 1, 2, 5)

3084913

$131.99

6

COLLET,VALVE

3084908

$3.99

6

COLLET,VALVE

3084908

$3.99

7

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

7

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

8

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

8

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

9

CAMSHAFT Substituted by 3086212 (Incl. 10-13)

3084898

Unavailable

10

PIN, DOWEL Substituted by 3086838

3080103

$7.14

11

LEVER, RELEASE

3085348

Unavailable

12

SPRING,RETURN

3085076

Unavailable

13

PIN,DOWEL

3084899

$7.19

14

SPROCKET 2

3084914

$75.99

15

GUIDE,CHAIN

3084916

Unavailable

16

BOLT&WASHER ASM.

3081657

$4.79

17

CHAIN, TIMING *

3084915

$95.99

18

BOLT,PIVOT,LEVER

3084924

Unavailable

19

LEVER

3084917

$91.99

20

VALVE,INTAKE

3085349

$63.99

21

VALVE, EXHAUST

3085412

$87.99

22

GASKET,TENSIONER

3084922

Unavailable

23

TENSIONER ASM. (Incl. 25-27)

3084918

Unavailable

24

BOLT, FLANGE

3084874

Unavailable

25

SPRING,TENSIONER

3084919

Unavailable

26

Gasket, Plug

3084920

Unavailable

27

PLUG

3084845

Unavailable
