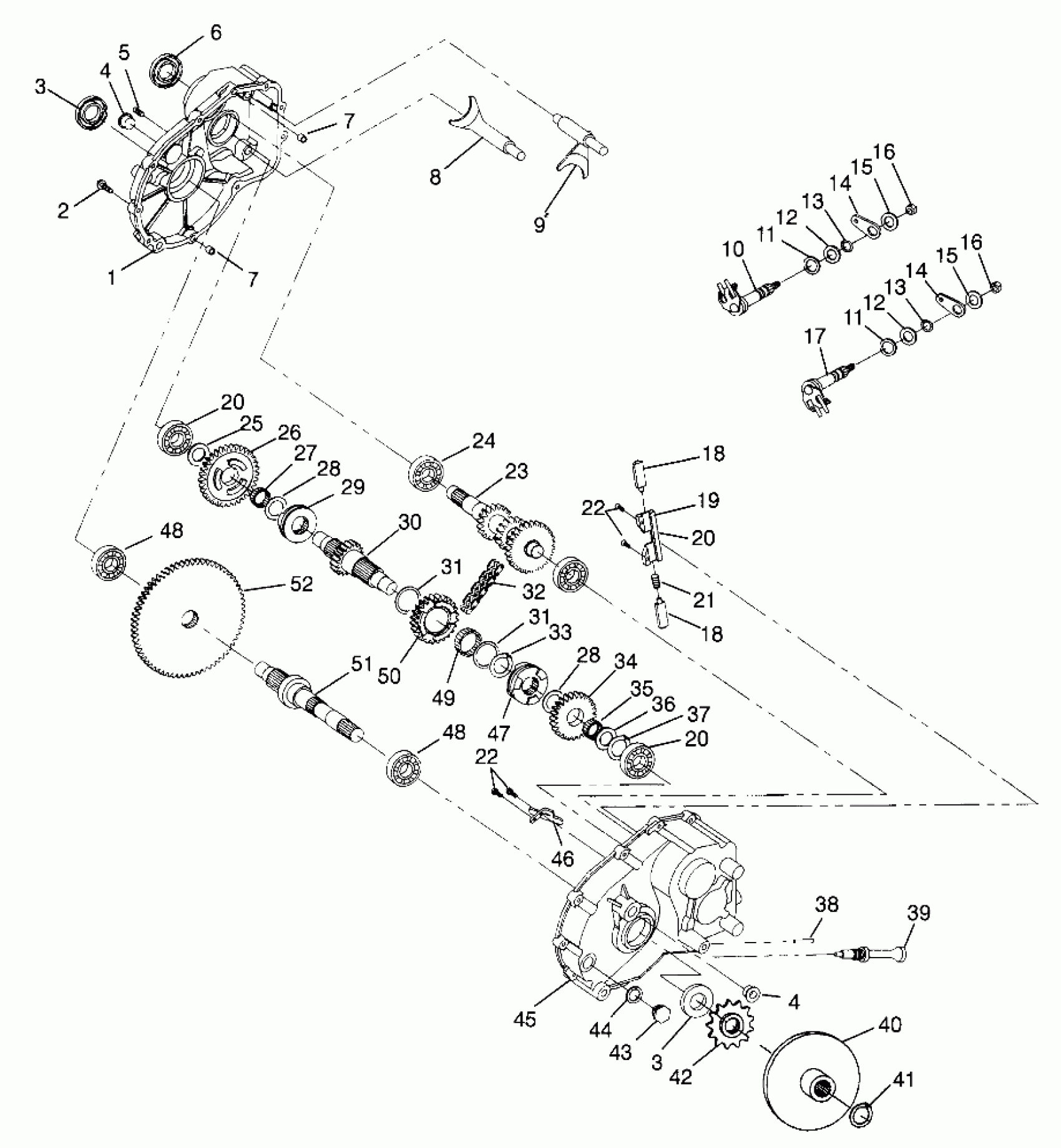

Polaris MAGNUM 2X4 - W967544 GEARCASE Magnum 2X4 W967544 (4936033603C004) Diagram

#

Description
Price

-

GEARCASE ASM,MAGNUM 2X4,HCR (Incl. 1-39, 43-52)

1341185

Unavailable

1

CASE, LH

3233002

Unavailable

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

SEAL Substituted by 3233248

3233097

$30.88

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

SHIFTRAIL,LOW

3233022

Unavailable

9

SHIFTRAIL,HIGH/REV.

3233023

Unavailable

10

SHAFT,LOW SHIFT

3233151

$51.59

11

O-RING Substituted by 3233548

3233044

Unavailable

11

O-RING Substituted by 3233548

3233044

Unavailable

12

Washer

3233040

$9.59

12

Washer

3233040

$9.59

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

13

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

14

Bellcrank

3233153

$27.99

14

Bellcrank

3233153

$27.99

15

Washer

3233054

$6.46

15

Washer

3233054

$6.46

16

Nut

3233055

Unavailable

16

Nut

3233055

Unavailable

17

SHAFT,HIGH/REV.SHIFT

3233152

Unavailable

18

PIN

3233031

$32.11

18

PIN

3233031

$32.11

19

BRACKET

3233030

$21.43

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

20

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

21

Spring

3233032

$12.94

22

SCREW Substituted by 3233747

3233033

Unavailable

22

SCREW Substituted by 3233747

3233033

Unavailable

23

SHAFT,INPUT,31T,HCR

3233361

Unavailable

24

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

25

WASHER

3233007

Unavailable

26

GEAR, 33T

3233125

Unavailable

27

BEARING,NEEDLE

3233009

$39.99

28

Washer

3233010

Unavailable

28

Washer

3233010

Unavailable

29

DOG,ENGAGEMENT,LOW

3233126

Unavailable

30

SHAFT,REV,29T,HCR

3233362

Unavailable

31

WASHER

3233012

Unavailable

31

WASHER

3233012

Unavailable

32

CHAIN,SILENT,34P (11W)

3233036

Unavailable

33

RING,RETAINING

3233029

$5.59

34

GEAR,30T,HCR

3233359

Unavailable

35

BEARING,NEEDLE

3233017

$35.99

36

Washer

3233176

$9.59

37

RING,RETAINING

3233177

$6.39

38

Vent

3233037

Unavailable

39

DIPSTICK Substituted by 3233478

3233115

$24.27

40

Asm., Brake Disc (See Pg., Ref.)

-------

Unavailable

41

RING,SNAP(10)

7710434

$3.99

42

SPKT, 12T

3221044

$43.99

43

PLUG,OIL DRAIN Substituted by 3233448

3233028

$23.81

44

Washer

3233035

Unavailable

45

CASE, RH

3233003

Unavailable

46

DEFLECTOR,OIL

3233043

$13.19

47

DOG,ENGAGEMENT,HI/REV.

3233128

Unavailable

48

BEARING

3233020

$47.99

48

BEARING

3233020

$47.99

49

BEARING, NEEDLE

3233014

$43.99

50

SPROCKET, 24T

3233127

Unavailable

51

SHAFT,OUTPUT

3233140

Unavailable

52

GEAR,O/P,100T,HCR

3233360

Unavailable
