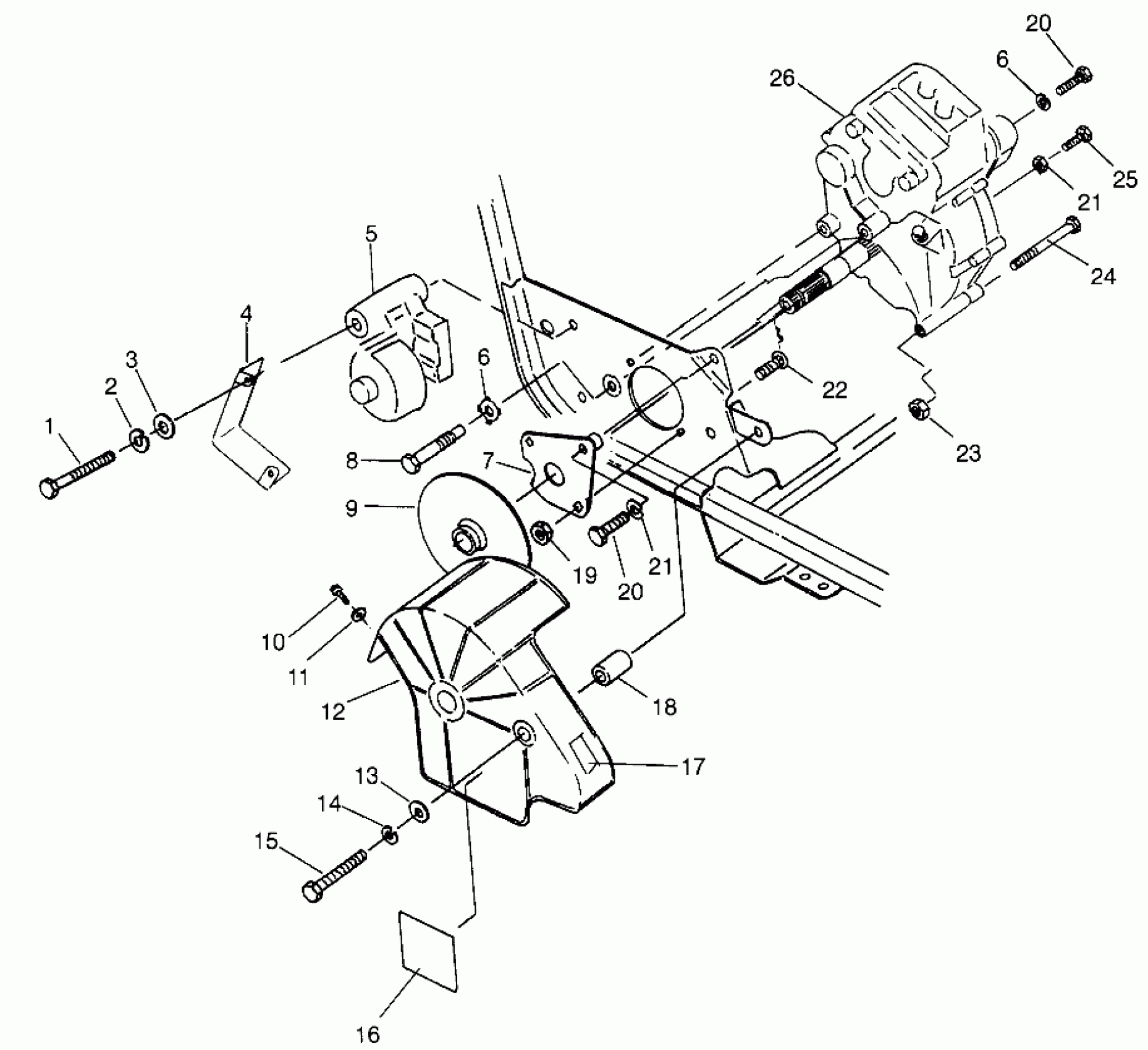

Polaris MAGNUM 2X4 - W967544 GEARCASE/BRAKE MOUNTING Magnum 2X4 W967544 (4936033603B014) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

5

CALIPER ASM,R.BRAKE Substituted by 1910224

1910180

Unavailable

6

PLATE,BOLT LOCK

5220958

$36.41

6

PLATE,BOLT LOCK

5220958

$36.41

7

BRACE,BULKHEAD,BLK.

1040414-067

Unavailable

8

BOLT, SHOULDER

7512702

Unavailable

9

DISC ASM,BRAKE

1910177

Unavailable

10

SCREW(10)

7512252

Unavailable

11

WASHER(10) Substituted by 7558301

7555776

$1.19

12

GUARD, BRAKE DISC

5431766

Unavailable

13

WASHER(10) Substituted by 7558402

7555770

$0.99

14

WASHER(10)

7552606

$4.76

15

BOLT(10) Substituted by 7515339

7515328

$4.76

16

DECAL,BRAKE SHIELD

7075339

Unavailable

17

DECAL,LUBRICATION

7074214

Unavailable

18

SPACER,BRAKE DISC GUARD

5333255

$5.00

19

NUT,FLANGE LOCK(10)

7542449

$3.97

20

BOLT(10)

7515534

$4.76

20

BOLT(10)

7515534

$4.76

21

WASHER(10)

7552603

$0.79

21

WASHER(10)

7552603

$0.79

22

BOLT,CARRIAGE(10)

7515484

Unavailable

23

NUT LOCK(10)

7542403

Unavailable

24

BOLT(10)

7515472

$2.38

25

BOLT(10)

7515485

$3.02

26

BOLT(10)

7515522

$3.97
