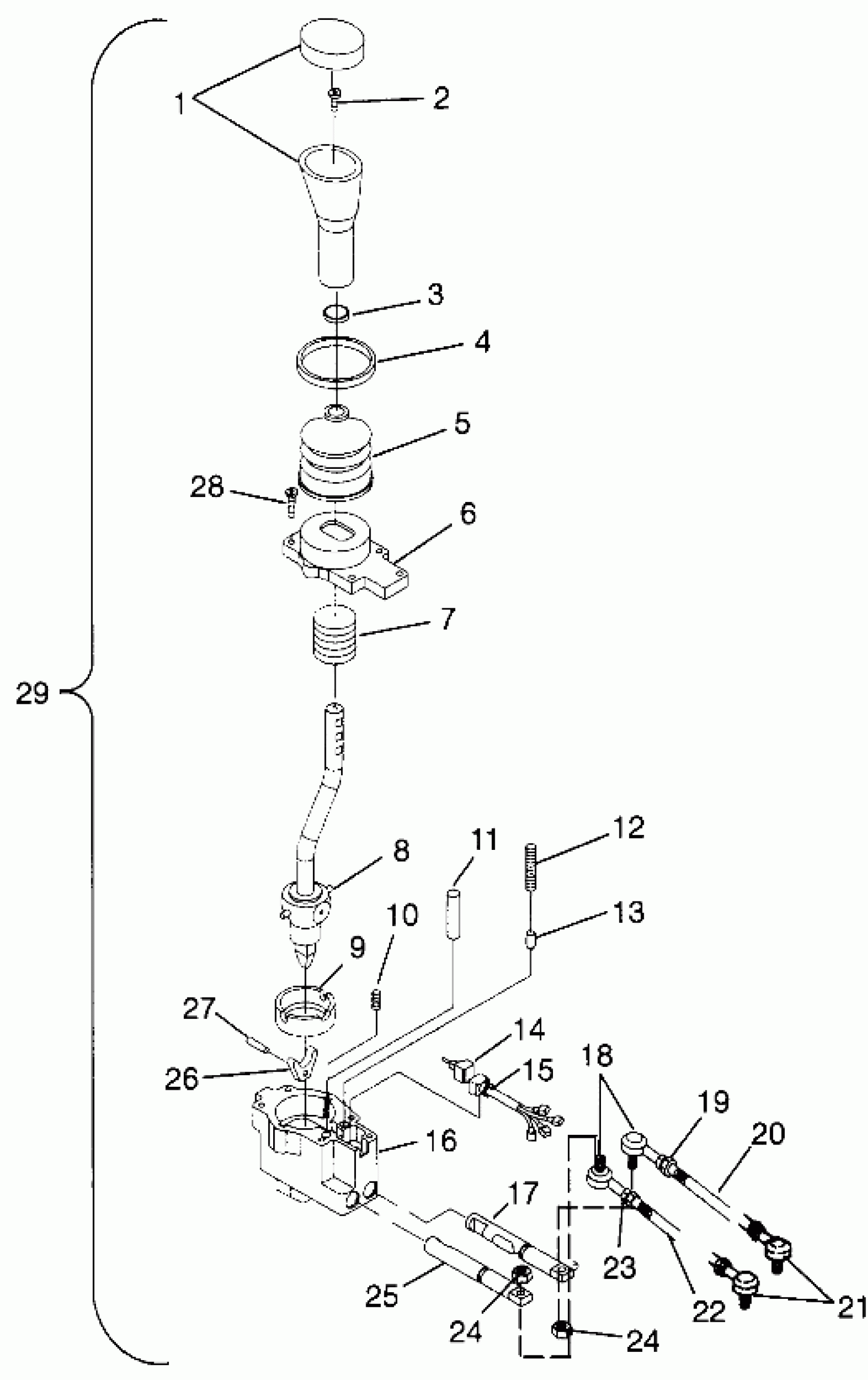

Polaris MAGNUM 2X4 - W967544 GEAR SELECTOR Magnum 2X4 W967544 (4936033603C003) Diagram

#

Description
Price

1

KNOB ASM,HI/LO/REV. Substituted by 3233195-070

3233195

$49.99

2

SCREW,(10)

7512024

$4.79

3

Strap, Wire

3233131

$9.70

4

CLAMP

3233132

Unavailable

5

BOOT,GEAR SELECTOR

3233368

$74.79

6

COVER,GEAR SELECTOR

3233213

Unavailable

7

SPRING,HOLDING

3233158

Unavailable

8

HANDLE SUBASM,(GS MAGNUM)

3233227

Unavailable

9

CUP,BEARING

3233063

$15.99

10

SPRING,CENTERING

3233083

Unavailable

11

PIN, STOP

3233062

Unavailable

12

SPRING,DETENT

3233069

Unavailable

13

BULLET,DETENT

3233060

$64.99

14

SWITCH,GEAR SELECTOR

3233223

Unavailable

15

STRAP, WIRE

3233090

$2.86

16

BODY,GEAR SELECTOR

3233216

Unavailable

17

SLIDE ASM,HIGH/REV

3233217

Unavailable

18

ROD END,RH,6MM.

7061014

$65.99

19

NUT(10)

7546702

$1.49

20

SHIFT,ROD,LINKAGE,HIGH RANGE

5020703

Unavailable

21

ROD END,LH,6MM.

7061013

$65.99

22

SHIFT,ROD,LINKAGE,LOW RANGE

5020702

Unavailable

23

NUT(10)

7546701

$3.99

24

NUT(10) Substituted by 7546703

7546707

Unavailable

24

NUT(10) Substituted by 7546703

7546707

Unavailable

25

SLIDE ASM,LOW

3233218

Unavailable

26

INTERLOCK,BUTTERFLY

3233084

Unavailable

27

PIN,INTERLOCK

3233070

Unavailable

28

SCREW Substituted by 3233498

3233085

Unavailable

29

SELECTOR ASM,GEAR,MAGNUM (Incl. 1-17, 25-28)

1341183

Unavailable
