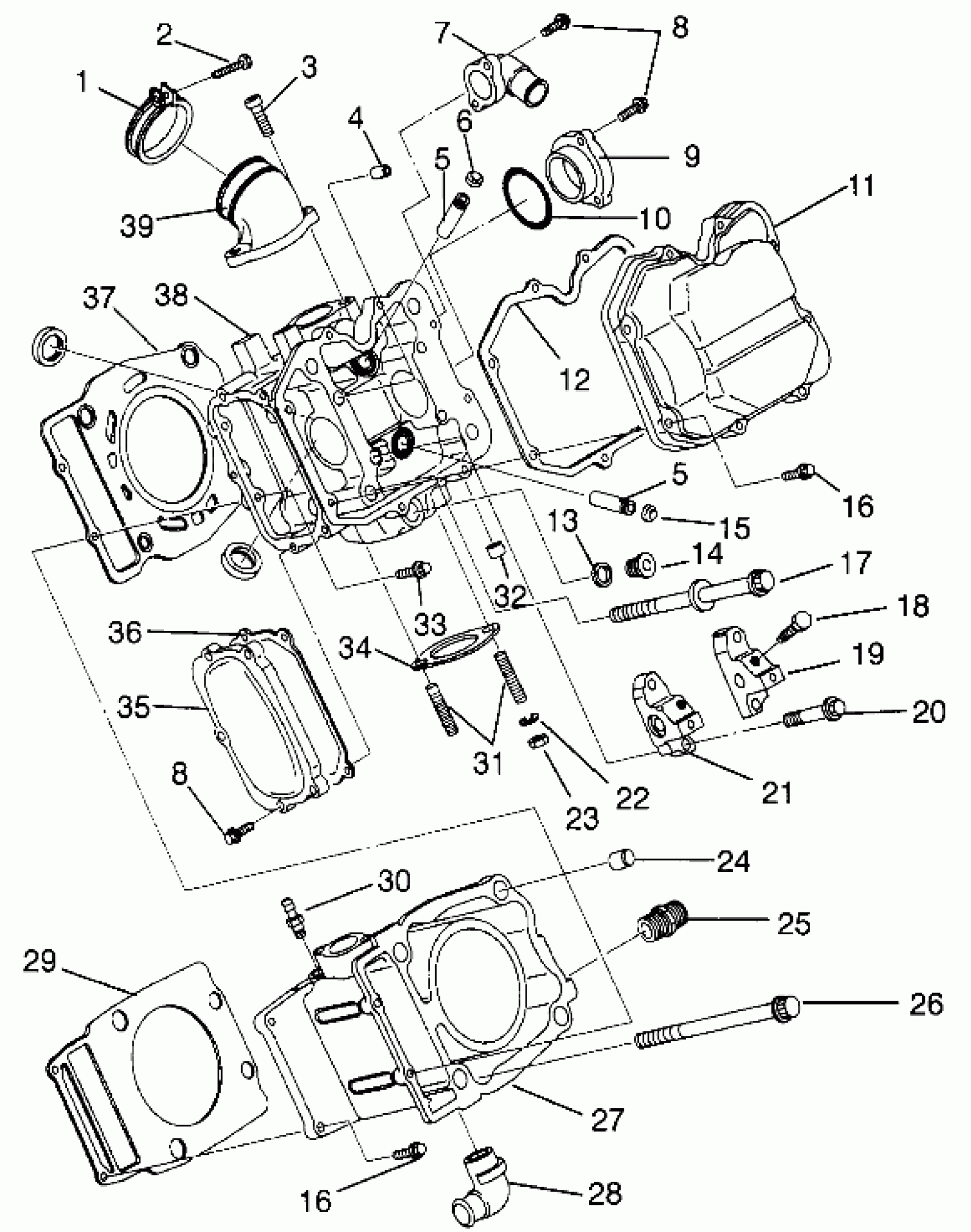

Polaris MAGNUM 2X4 - W967544 CYLINDER Magnum 2X4 W967544 (4936033603C009) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3083166

$19.84

2

SCREW,(10)

3081497

$2.39

3

Bolt, Allen

3081330

$3.99

4

PIN,STRAIGHT

3084857

Unavailable

5

GUIDE,VALVE

3084994

$39.99

5

GUIDE,VALVE

3084994

$39.99

6

SEAL,INTAKE VALVE

3084858

$13.59

7

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

8

BOLT,FLANGE(10)

3084877

Unavailable

9

ADAPTER,CAMSHAFT

3084866

Unavailable

10

O-RING

3084867

$23.99

11

COVER,ROCKER

3085073

$75.99

12

GASKET,(R.COVER)

3085074

$31.99

13

GASKET

3084861

$4.79

14

PLUG

3084860

$7.19

15

SEAL,EXHAUST VALVE

3084859

$23.99

16

BOLT, FLANGE

3084874

Unavailable

16

BOLT, FLANGE

3084874

Unavailable

17

BOLT

3084875

Unavailable

18

BOLT

3084880

Unavailable

19

SUPPORT,VALVE ROCKER

3084864

Unavailable

20

BOLT

3084876

$4.79

21

SUPPORT,VALVE ROCKER

3084863

$91.99

22

WASHER LOCK ,(10)

3080530

$3.19

23

NUT(10)

3080285

Unavailable

24

PIN,STRAIGHT

3084838

Unavailable

25

UNION,OIL PUMP

3084849

Unavailable

26

BOLT, FLANGE

3084873

Unavailable

27

CYLINDER (Incl. 28)

3084848

Unavailable

28

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

29

GASKET, CYL. Substituted by 3085370

3084851

Unavailable

30

UNION,(BREATHER)

3084850

Unavailable

31

STUD (10)

3080016

$5.75

32

PLUG, BLIND

3084862

Unavailable

33

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

34

GASKET,EXH.

3085075

$39.99

35

Cover, Camshaft

3084868

Unavailable

36

GASKET Substituted by 3086200

3084869

Unavailable

37

GASKET,HEAD

3085337

$55.99

38

HEAD,CYLINDER Substituted by 3085527 (Incl. 4-6, 13-15, 31)

3085071

Unavailable

39

ADAPTER

3084879

Unavailable
