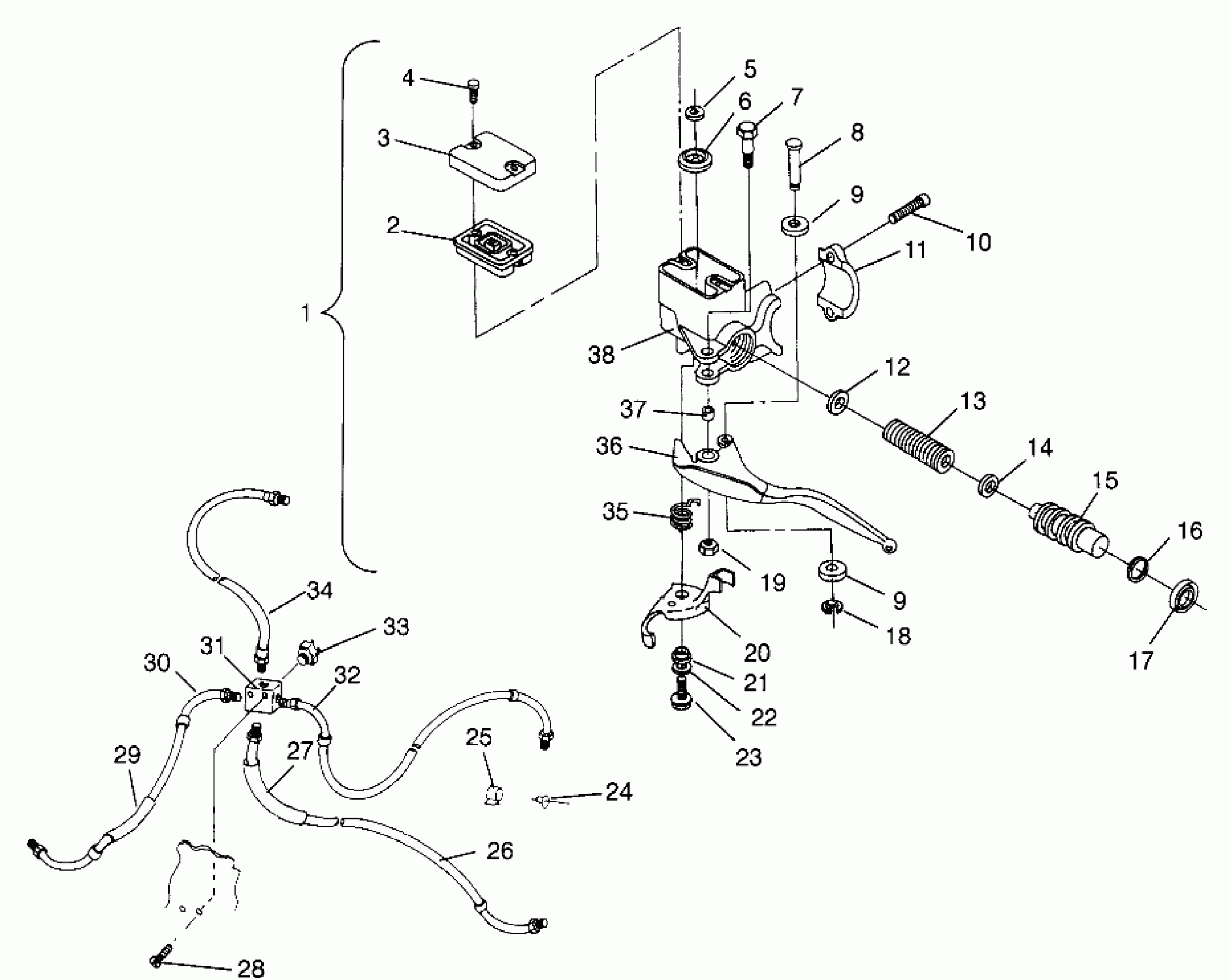

Polaris MAGNUM 2X4 - W967544 CONTROLS - MASTER CYLINDER/BRAKE LINE Magnum 2X4 W967544 (4936033603B009) Diagram

#

Description
Price

1

MASTER CYL.ASM. Substituted by 2050073 (Incl. 2-19, 36-38)

2050062

$235.51

2

GASKET,MASTER CYL.

5410527

$8.99

3

COVER,MASTER CYL.

5630338

Unavailable

4

SCREW,W/WASHER(10)

7512050

$3.99

5

WASHER, BAFFLE(10)

1930662

Unavailable

6

BAFFLE,MASTER CYL.

1930673

Unavailable

7

BOLT,BRAKE LEVER(10)

7512287

Unavailable

8

PIN,BRAKELEVER ROLLER

7661627

Unavailable

9

ROLLER, BRAKE LEVER

5020598

Unavailable

9

ROLLER, BRAKE LEVER

5020598

Unavailable

10

BOLT,SOCKET HEAD(10)

7512290

$4.79

11

CLAMP, MASTER CYL.

5630342

Unavailable

12

WASHER(10)

7555708

$3.99

13

SPRING, MASTERCYL.

7041311

Unavailable

14

SEAL, CUP,(ATV)

5410994

Unavailable

15

PISTON, MASTER CYL.

5020671

$47.99

16

O RING

5410163

$1.60

17

SEAL, OIL

3610022

Unavailable

18

RING, RETAINING(10)

7710425

Unavailable

19

NUT(10)

7542124

Unavailable

20

LEVER,PARKBRAKE,ATV

5240865

Unavailable

21

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

22

RIVET BURR(50)

7555756

$2.99

23

SCREW(10)

7511876

Unavailable

24

RIVET(50)

7621462

$1.49

25

CLAMP,NYLON,CABLE(10)

7080539

$4.79

26

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

27

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

28

SCREW(10)

7512027

$1.49

29

CONDUIT, 38 CM.

8360031-38

$2.63

30

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

31

FITTING,CROSS INVERT.FLARE

7052103

Unavailable

32

LINE,BRAKE,REAR

1930751

Unavailable

33

SWITCH,STOPLIGHT

4110164

Unavailable

34

LINE,BRAKE,UP./FTGS.

1930748

$87.99

35

SPRING,PK.BRAKE

7041229

$32.37

36

LEVER, BRAKE,(ATV)

5630455

Unavailable

37

BUSHING,BRAKE LEVER

5332931

Unavailable

38

HOUSING,MASTERCYL.

5130955

$293.65
