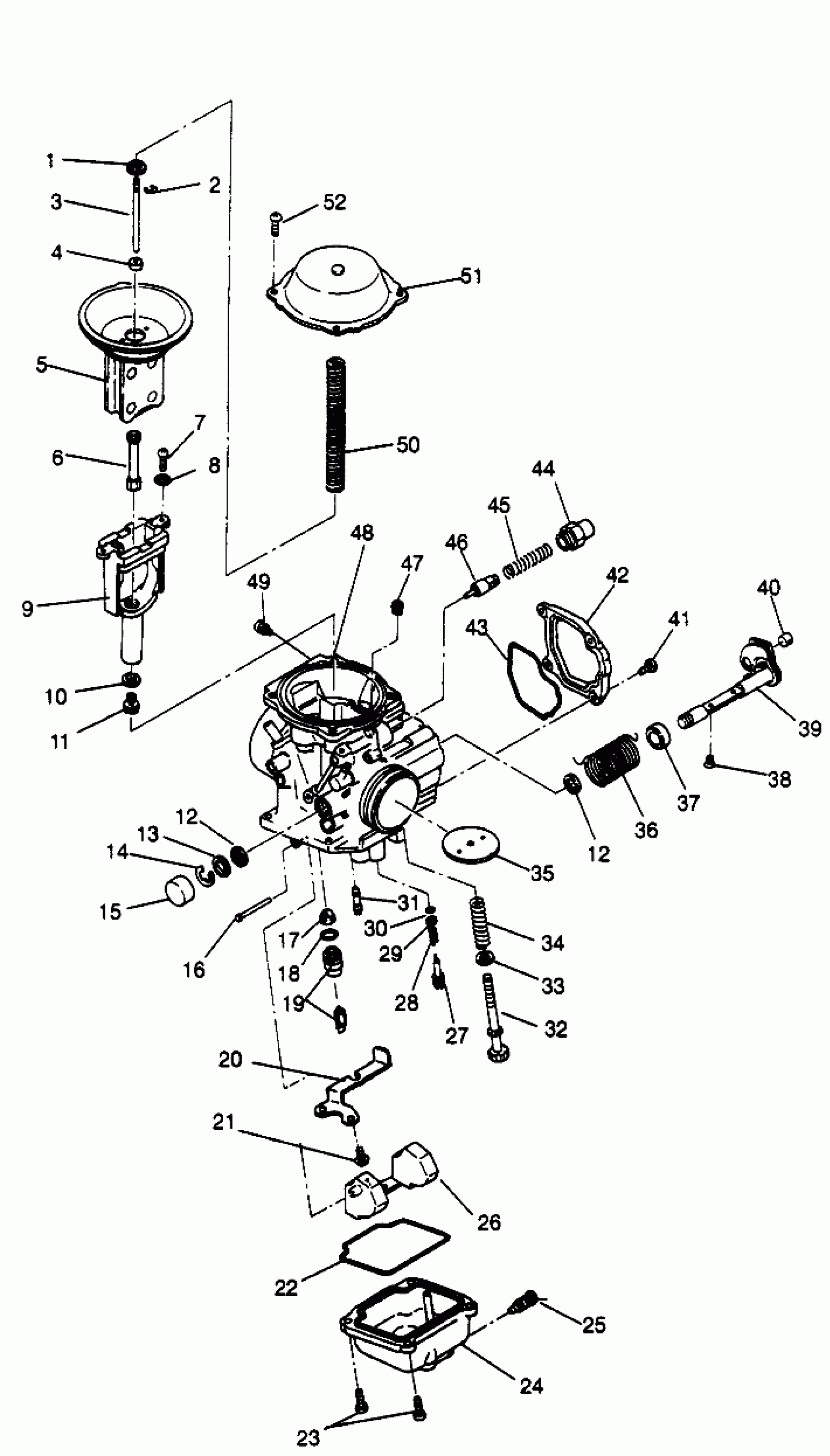

Polaris MAGNUM 2X4 - W967544 CARBURETOR Magnum 2X4 W967544 (4936033603D002) Diagram

#

Description
Price

1

RING

3130507

$5.65

2

E-RING,(10)

3130508

$6.46

3

JET NEEDLE(5F81-3) (5F81-3)

3130528

Unavailable

4

RING Substituted by 3130752

3130509

$5.65

5

DIAPHRAGM ASM.

3130506

Unavailable

6

NEEDLE JET (P-8) (P-8)

3130510

$48.56

7

SCREW

3130541

$11.11

8

WASHER,SPRING

3130540

$4.76

9

JETBLOCK ASM.

3130504

$64.75

10

WASHER (10)

3130014

$1.59

11

MAIN JET,#140 (#140)

3130527

$8.89

12

SEAL

3130515

$12.13

12

SEAL

3130515

$12.13

13

PACKING

----

Unavailable

14

E-RING

3130518

$1.60

15

CAP

3130519

$10.51

16

PIN, FLOAT

3130361

$9.70

17

FILTER

3130534

$8.73

18

O-RING

3130533

$5.65

19

VALVE,NEEDLE,(1.5) Substituted by 3130531 (1.5)

3130668

$61.74

20

PLATE

3130594

$32.37

21

SCREW

3130591

$3.97

22

O-RING

3130532

$32.37

23

SCREW

3130520

$1.59

24

FLOATBODY ASM.

3130590

$119.98

25

SCREW

3130521

$10.32

26

FLOAT ASM.

3130529

$99.74

27

Adjuster

3130524

$23.81

28

Spring

3130525

$5.65

29

Washer

3130523

$2.38

30

O-Ring

3130522

$5.65

31

JET,PILOT,#40 (#40)

3130624

$28.32

32

SCREW, ADJ.

3130546

$13.75

33

Ring

3130545

$12.13

34

Spring

3130544

$10.51

35

VALVE,THROTTLE (100)

3130502

$62.92

36

SPRING

3130589

$28.32

37

Ring

3130514

$7.27

38

SCREW

3130501

$3.97

39

SHAFT ASM,THROTTLE

3130513

$79.37

40

GUIDE,CABLE

3130543

$32.37

41

SCREW

3130535

$7.14

42

COVER

3130511

$54.99

43

O-Ring

3130512

Unavailable

44

HOLDER,GUIDE

3130199

$28.32

45

SPRING

3130538

$5.65

46

PLUNGER ASM. Substituted by 3130539

3130593

$40.46

47

JET,AIR,#160 (#160)

3130625

$14.56

48

CARBURETOR Substituted by 3130724 (Incl. 1-52)

3130500

Unavailable

49

SCREW & WASHER(10)

3084205

$3.97

50

SPRING

3130505

$28.32

51

Cover

3130503

$68.79

52

SCREW-MIKUNI C2=0408

3130592

$1.59
