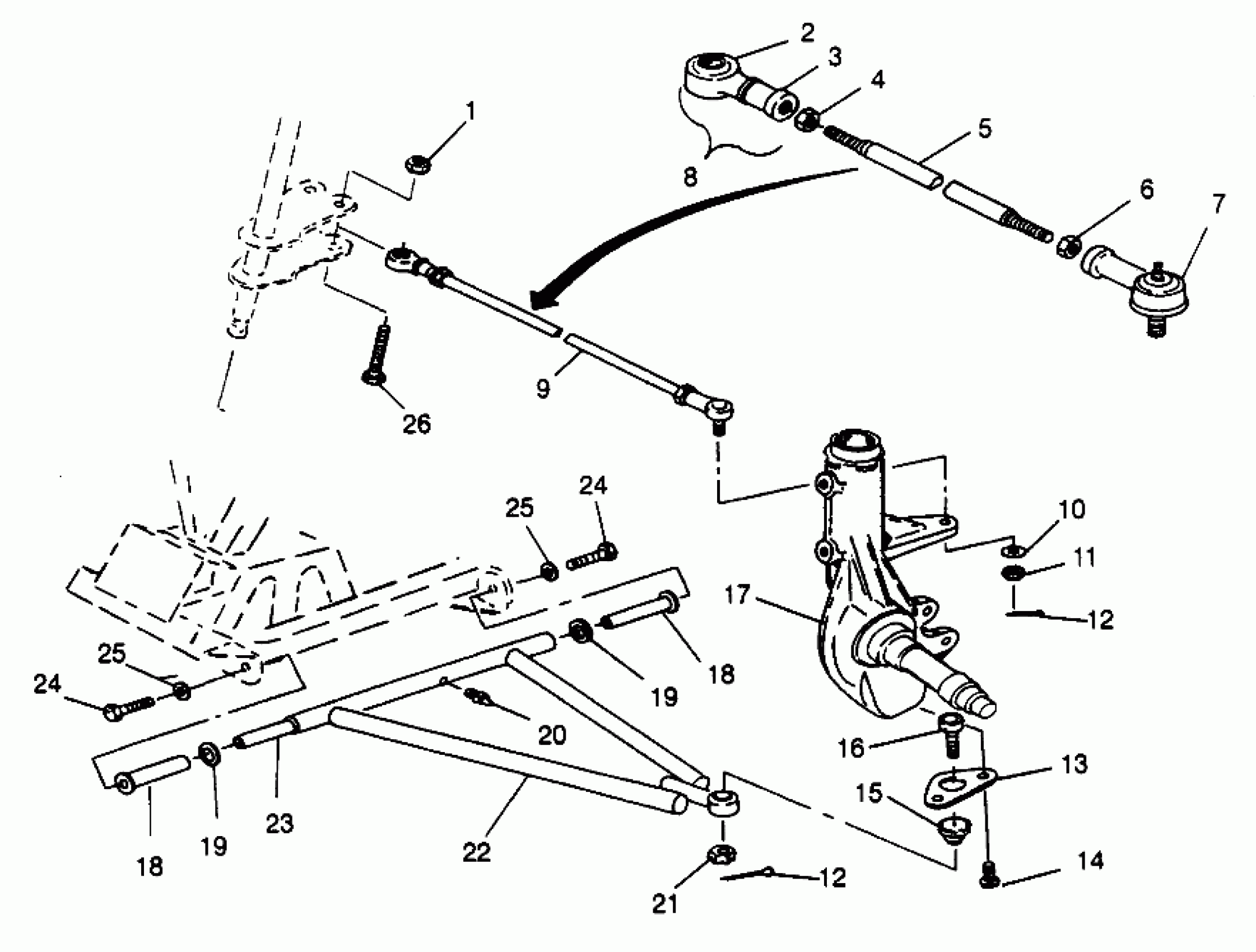

Polaris MAGNUM 2X4 - W967544 A-ARM/STRUT MOUNTING Magnum 2X4 W967544 (4936033603B007) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

ROD END, RH Substituted by 1822179

7060149

Unavailable

3

BOOT, SEAL, ROD END

5410540

$7.14

4

NUT HEX(10)

7542401

$2.38

5

ROD, TIE

5020745

$53.32

6

NUT, LH, 10 MM.(10)

7546902

Unavailable

7

ROD END,LH,W/FTG,10 MM.

7060171

$60.70

8

ROD END ASM,/SEAL BOOT (Incl. 2, 3)

1822179

Unavailable

9

TIEROD ASM,RELUBE Substituted by 1822477 (Incl. 2, 3, 4, 5, 6, 7, 8)

1822403

Unavailable

10

WASHER(10)

7555806

$0.79

11

NUT, CASTLE(10)

7546904

$4.76

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

BRACKET,BALLJOINT

5240717

Unavailable

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

15

Boot, Rubber

5410548

$4.84

16

BALL JOINT Substituted by 7080673

7080364

$28.32

17

Asm., Hubstrut, RH (See Pg. A18, Ref. 16)

----

Unavailable

17

Asm., Hubstrut, LH (See Pg. A18, Ref. 16)

----

Unavailable

18

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

18

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

19

BUSHING,A-ARM SPACER(10)

5020677

$10.32

19

BUSHING,A-ARM SPACER(10)

5020677

$10.32

20

ZERK,FITTING,THREADED(10)

7080433

$1.19

21

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

22

KIT,A-FRAME,LH Substituted by 2201601

2200560

$149.99

22

KIT,A-FRAME,RH Substituted by 2201602

2200561

$149.99

23

Shaft, A-Arm

5020681

$33.24

24

BOLT(10) Substituted by 7512492

7515458

$1.19

24

BOLT(10) Substituted by 7512492

7515458

$1.19

25

WASHER(10)

7552603

$0.79

25

WASHER(10)

7552603

$0.79

26

BOLT(10)

7515415

$1.19
