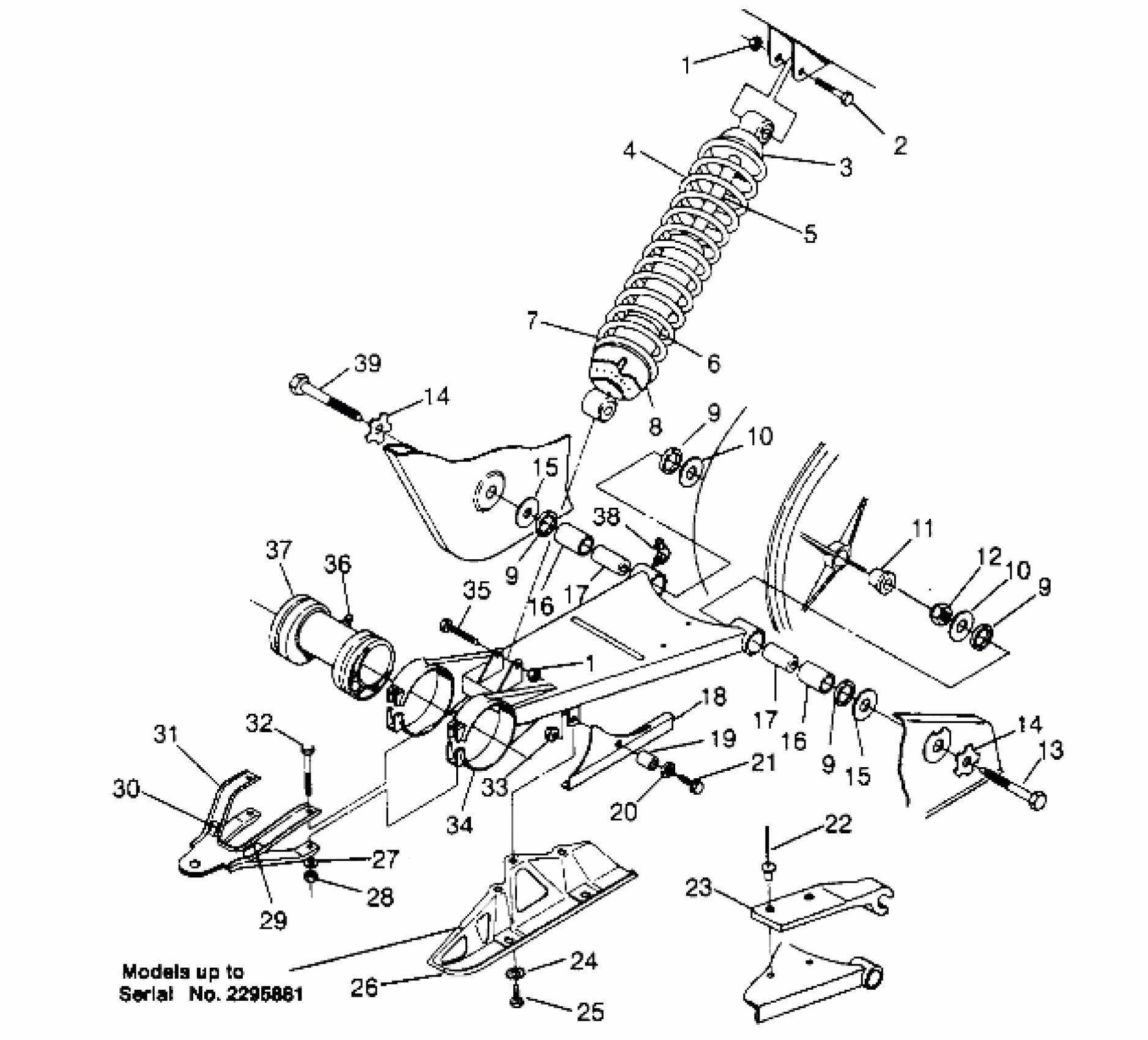

Polaris MAGNUM 2X4 - W957544 SWING ARM/SHOCK MOUNTING (Prior to Serial #2295881) Magnum 2x4 W957544 (4926852685B010) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542439

$1.49

1

NUT-LOCK(10)

7542439

$1.49

2

BOLT(10)

7515415

$1.49

3

RETAINER, SHOCK

5222118

Unavailable

4

SPRING,COMP,REAR

7041204-067

$64.99

5

SHOCK,REAR

7041448

$151.99

6

SLEEVE,SPRING PROTECTOR

5431032

$31.99

7

ADAPTER,SPRING,SEAT

5630351

Unavailable

8

CAM,ADJUSTING SPRING

5630334

$32.37

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

9

SEAL,OIL

3610016

$28.32

10

WASHER(10)

7555779

Unavailable

10

WASHER(10)

7555779

Unavailable

11

Bushing, Pivot (See Pg. A34, Ref. 4)

-------

Unavailable

12

NUT,CROWN LOCK(10)

7542601

Unavailable

13

BOLT, SHOULDER

7512702

Unavailable

14

PLATE,BOLT LOCK

5220958

$35.99

14

PLATE,BOLT LOCK

5220958

$35.99

15

BUSHING, MACH.(10)

7555752

Unavailable

15

BUSHING, MACH.(10)

7555752

Unavailable

16

BEARING,SWINGARM

3576512

Unavailable

16

BEARING,SWINGARM

3576512

Unavailable

17

BUSHING,SWING ARM

5010255

Unavailable

17

BUSHING,SWING ARM

5010255

Unavailable

18

GUARD, CHAIN

5430776

$35.99

19

Bushing

5332828

$9.59

20

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

21

SCREW-FLANGED(10)

7515304

$5.59

22

RIVET(50)

7621433

$1.49

23

GUIDE, CHAIN

5431310

$32.37

24

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

25

SCREW(10)

7512252

Unavailable

26

GUARD, SWING ARM

1040166-067

Unavailable

27

WASHER(10)

7555883

$3.99

28

NUT, LOCK,(10)

7542503

$10.39

29

DECAL,CHAIN FREE PLAY

7074752

Unavailable

30

DECAL, HITCH Substituted by 7078261

7072533

Unavailable

31

KIT, ATV HITCH Substituted by 2873036 (Incl. 28-32)

2200472

Unavailable

32

BOLT(10)

7512576

$7.99

33

NUT LOCK(10)

7542321

$1.49

34

ARM, SWING

1580048-067

Unavailable

35

BOLT(10)

7515438

$4.79

36

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

37

HOUSING, AXLE

5130663

Unavailable

38

FITTING, LUBE.

7080438

$10.39

39

BOLT, SHOULDER

7512701

$23.99
