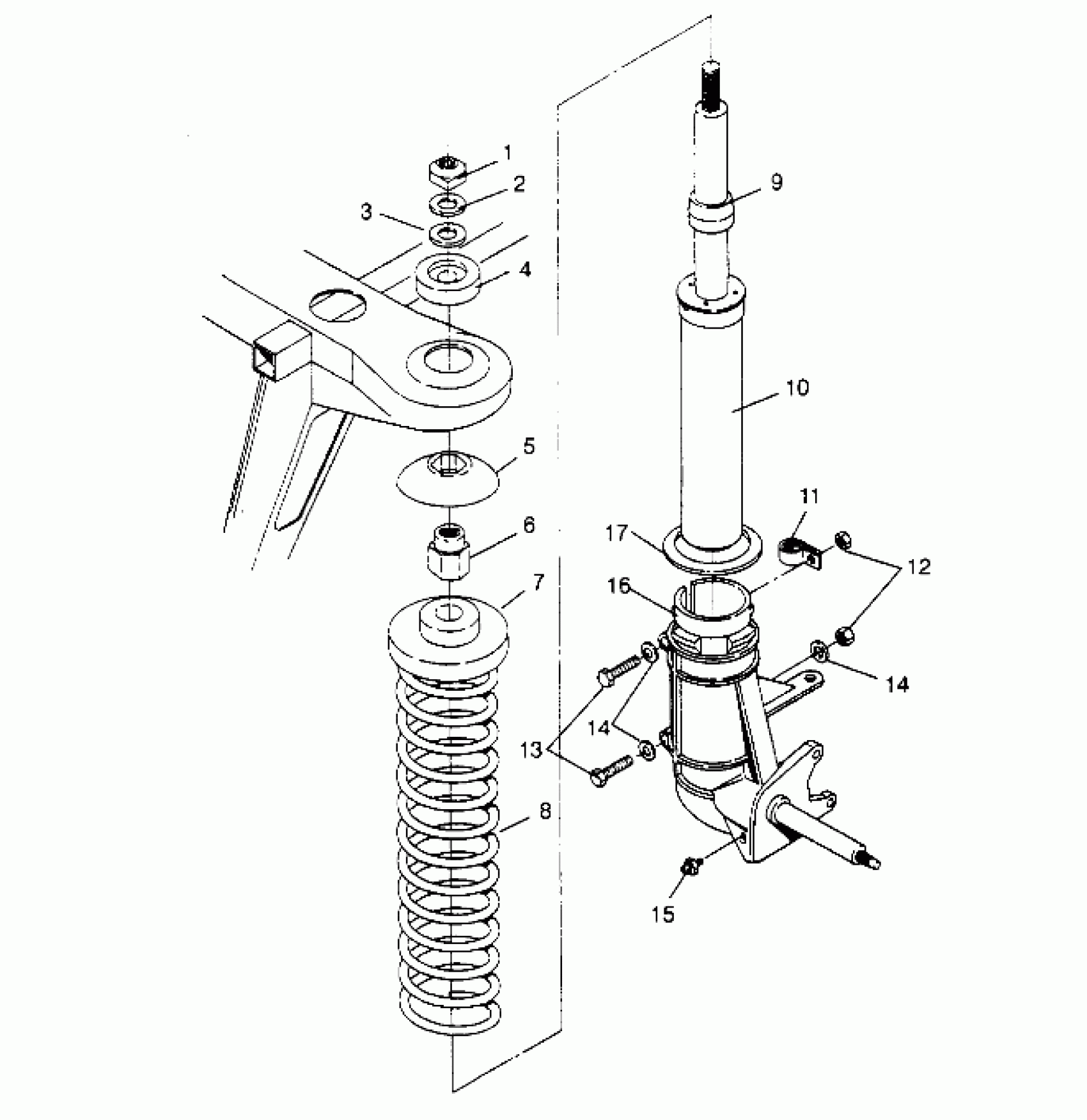

Polaris MAGNUM 2X4 - W957544 STRUT ASSEMBLY Magnum 2x4 W957544 (4926852685B002) Diagram

NUT,FLEX LOC(10)

7542507

Unavailable

WASHER(10)

7555749

$1.19

SPACER-RUBBER

5810291

$3.97

PIVOT BALL, TOP Substituted by 5432872

5430806

$10.51

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

$10.51

SPACER,THREADED

5130668

$27.78

RETAINER,SPRING,TOP (Top)

5220602

Unavailable

SPRING,COIL(STRUT),BLK.

7041376-067

Unavailable

BUMPER, STRUT Substituted by 5411468

5410791

Unavailable

STRUT,FRONT,32MM. Substituted by 7041755

7041374

$168.87

CLAMP(10) Substituted by 7080573

7080347

$7.14

NUT FLEX-LOC(10)

7542303

$6.35

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

SUPPORT,RH,STRUT/SPINDLE

5131040

$417.76

SUPPORT,LH,STRUT/SPINDLE

5131039

Unavailable

WASHER-2.06X2.62X.105-Y

5211115

$3.97
