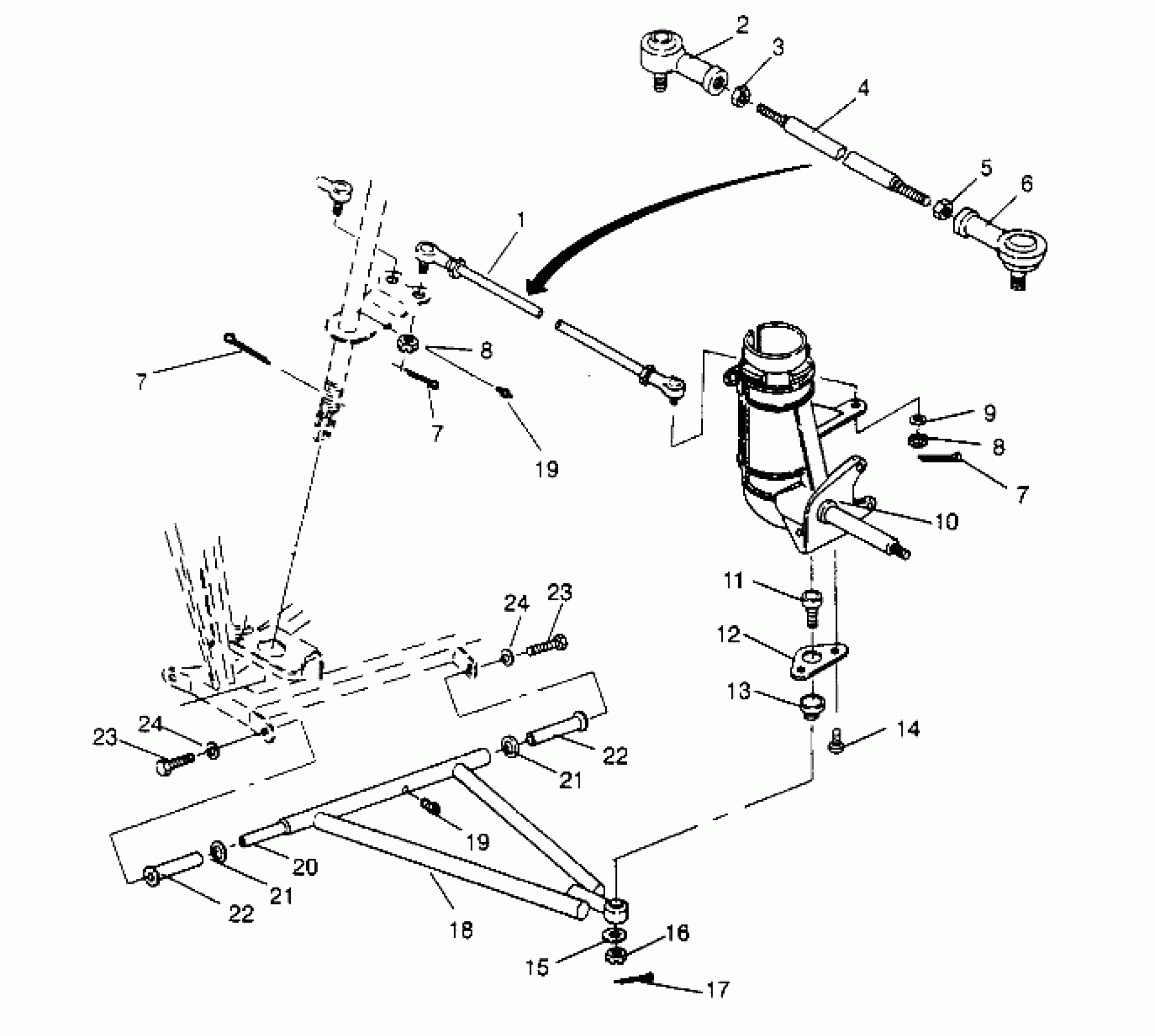

Polaris MAGNUM 2X4 - W957544 STEERING/A-ARM ASSEMBLY Magnum 2x4 W957544 (4926852685B007) Diagram

#

Description
Price

1

TIEROD ASM. Substituted by 1822308

1822181

Unavailable

2

ROD,END,RH,10 MM.

7060172

$56.65

3

NUT, RH, 10 MM.(10)

7546901

$2.39

4

TIEROD

5020762

Unavailable

5

NUT, LH, 10 MM.(10)

7546902

Unavailable

6

ROD END,LH,W/FTG,10 MM.

7060171

$55.99

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

7

PIN COTTER(10)

7661203

$1.49

8

NUT, CASTLE(10)

7546904

$4.79

8

NUT, CASTLE(10)

7546904

$4.79

9

WASHER(10)

7555806

$1.49

10

Support, Strut & Spindle, LH (See Pg., Ref.)

-------

Unavailable

10

Support, Strut & Spindle, RH (See Pg., Ref.)

-------

Unavailable

11

BALL JOINT Substituted by 7080673

7080364

Unavailable

12

BRACKET,BALLJOINT

5240717

Unavailable

13

Boot, Rubber

5410548

Unavailable

14

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

15

WASHER(10)

7555721

$1.49

16

NUT(10)

7542712

$9.59

17

COTTER PIN(10)

7661401

$1.49

18

KIT,A-FRAME,LH Substituted by 2201601

2200560

Unavailable

18

KIT,A-FRAME,RH Substituted by 2201602

2200561

Unavailable

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

19

ZERK,FITTING,THREADED(10)

7080433

$1.49

20

Shaft, A-Arm

5020681

Unavailable

21

BUSHING,A-ARM SPACER(10)

5020677

$10.39

21

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

22

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

Unavailable

23

BOLT(10) Substituted by 7512492

7515458

Unavailable

23

BOLT(10) Substituted by 7512492

7515458

Unavailable

24

WASHER(10)

7552603

$1.49

24

WASHER(10)

7552603

$1.49
