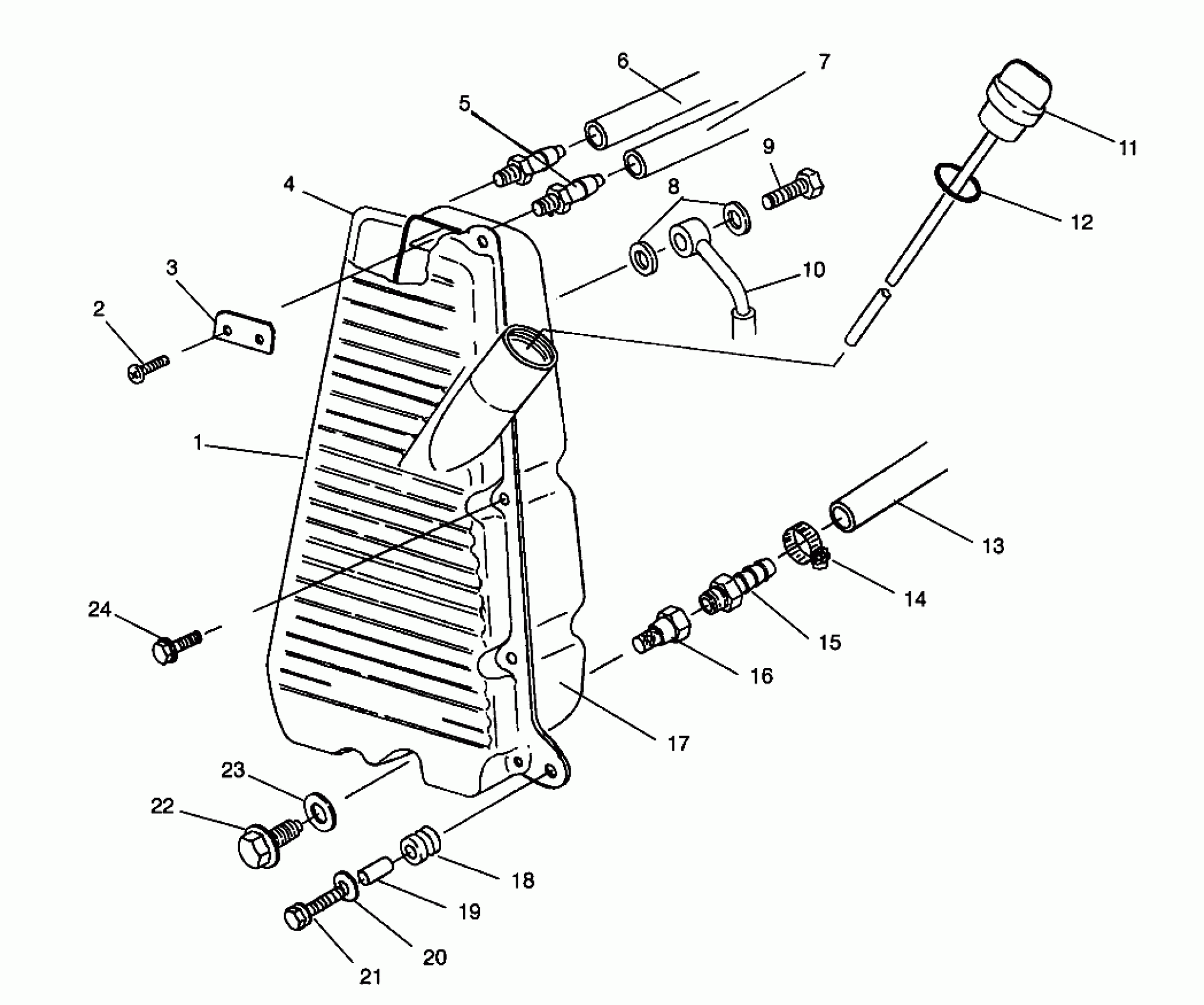

Polaris MAGNUM 2X4 - W957544 OIL TANK ASSEMBLY Magnum 2x4 W957544 (4926852685A013) Diagram

#

Description
Price

1

TANK,OIL,RH.

5131004

$87.19

2

SCREW(10)

7511858

$3.99

3

PLATE,VENT,OIL TANK

5211523

$13.99

4

GASKET,OIL RESERVOIR

5830053

$54.99

5

FITTING,SURGE TANK,(10)

7052099

$4.79

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

8

WASHER,COPPER,14MM.

7555896

$1.49

9

BOLT

7517102

Unavailable

10

TUBE,BANJO,RETURN

7052109

Unavailable

11

DIPSTICK

5431677

Unavailable

12

O RING

5410889

Unavailable

13

HOSE, 3/8"ID

5411036

Unavailable

14

CLAMP-HOSE,.875-SS

7080474

$8.40

15

FITTING,HOSE BR

7052106

$6.23

16

SCREEN,OIL FILTER

2530014

$9.91

17

TANK,OIL,LH,CAST

5131003

Unavailable

18

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

19

BUSHING,MTG.

5333204

$26.39

20

WASHER(10)

7558301

$1.49

21

SCREW(10)

7512242

$2.39

22

PLUG,MAG.12 M.

7051524

$27.99

23

WASHER(10)

7555897

Unavailable

24

SCREW(10)

7515158

$4.79
