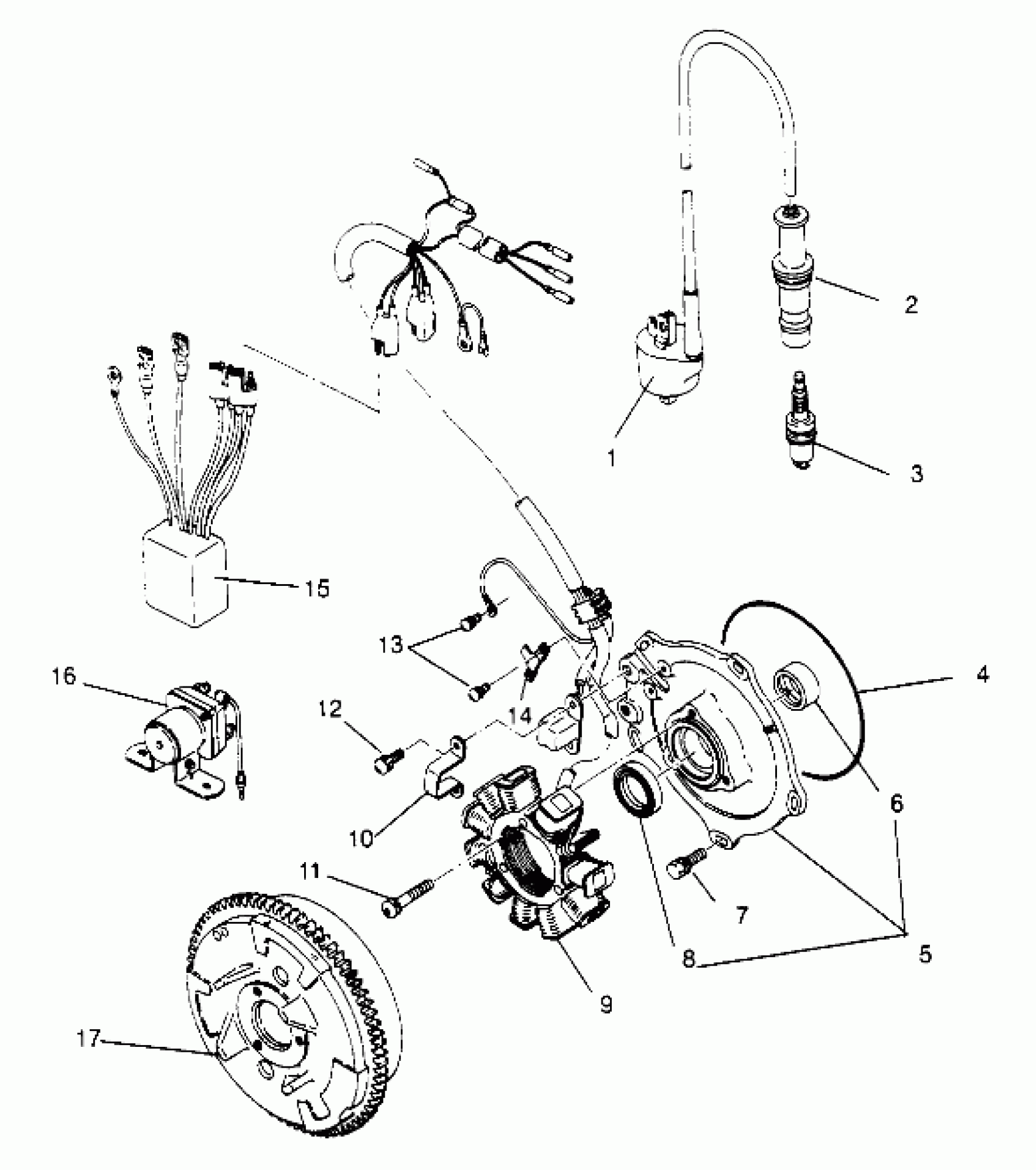

Polaris MAGNUM 2X4 - W957544 MAGNETO ASSEMBLY Magnum 2x4 W957544 (4926852685D008) Diagram

COIL ASM,IGNITION (Incl. 1, 2)

3084690

Unavailable

COIL,IGNITION

3084979

Unavailable

CAP, SPARKPLUG *

3084980

$59.99

SPARKPLUG, BKR6E(10) Substituted by 3070172

3084997

Unavailable

O-RING

3084978

$35.99

Plate

3084971

Unavailable

PLATE ASM. Substituted by 3086859 (Incl. 5, 6, 8-14)

3084970

Unavailable

BEARING, METAL

3084972

Unavailable

BOLT&WASHER ASM.

3081657

$4.79

SEAL, OIL

3084973

$27.99

STATOR Substituted by 3086860

3084974

Unavailable

COVER, PULSE Substituted by 3085554

3084975

Unavailable

SCREW&WASHER ASM(10)

3081342

$1.49

SCREW&WASHER ASM.

3084976

Unavailable

SCREW&WASHER ASM(10)

3081256

$3.19

FIN DAMPER B

3084799

Unavailable

CDI SYSTEM Substituted by 3085382

3084691

$245.70

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable

FLYWHEEL,W/RING GEAR Substituted by 3086857

3084969

Unavailable
