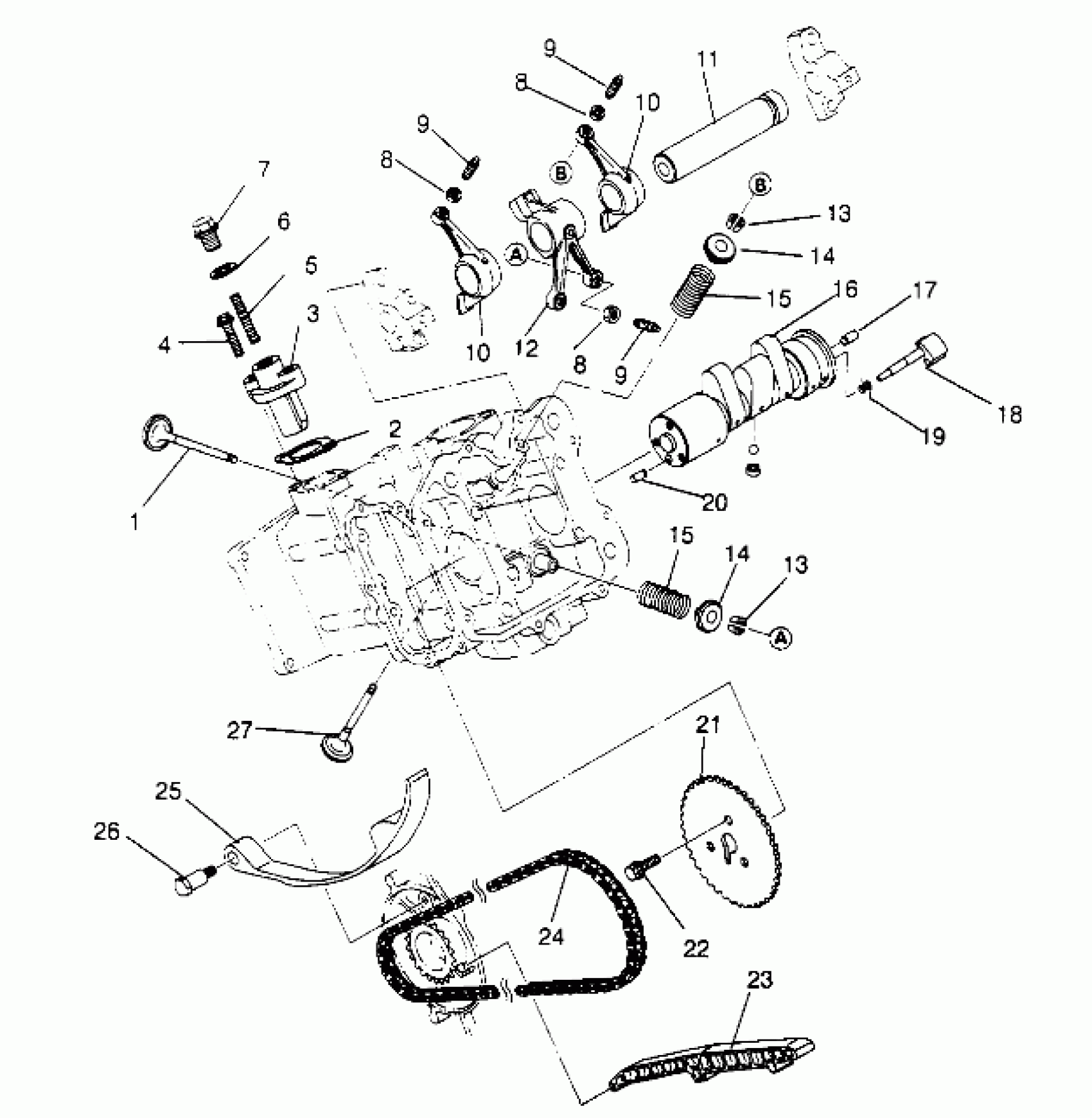

Polaris MAGNUM 2X4 - W957544 INTAKE and EXHAUST Magnum 2x4 W957544 (4926852685C013) Diagram

#

Description
Price

1

VALVE,EXHAUST Substituted by 3085412

3084905

Unavailable

2

GASKET,TENSIONER

3084922

Unavailable

3

TENSIONER ASM. (Incl. 5-7)

3084918

Unavailable

4

BOLT, FLANGE

3084874

Unavailable

5

SPRING,TENSIONER

3084919

Unavailable

6

Gasket, Plug

3084920

Unavailable

7

PLUG

3084845

Unavailable

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

8

NUT(10)

3084912

$3.99

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

9

SCREW, ADJ.

3084911

$9.59

10

ROCKERARM ASM,INTAKE * (Incl. 8, 9)

3084910

$115.99

10

ROCKERARM ASM,INTAKE * (Incl. 8, 9)

3084910

$115.99

11

SHAFT,ROCKER

3084909

$51.99

12

ROCKERARM ASM,EXHAUST * (Incl. 8, 9)

3084913

$131.99

13

COLLET,VALVE

3084908

$3.99

13

COLLET,VALVE

3084908

$3.99

14

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

14

RETAINER,SPRING Substituted by 3086893

3084907

Unavailable

15

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

15

SPRING,VALVE Substituted by 3086892

3084906

Unavailable

16

CAMSHAFT Substituted by 3086212 (Incl. 17-20)

3084898

Unavailable

17

PIN, DOWEL Substituted by 3086838

3080103

$7.14

18

LEVER, RELEASE

3084902

Unavailable

19

SPRING,RETURN

3085076

Unavailable

20

PIN,DOWEL

3084899

$7.19

21

SPROCKET 2

3084914

$75.99

22

BOLT&WASHER ASM.

3081657

$4.79

23

GUIDE,CHAIN

3084916

Unavailable

24

CHAIN, TIMING *

3084915

$95.99

25

LEVER

3084917

$91.99

26

BOLT,PIVOT,LEVER

3084924

Unavailable

27

VALVE,INTAKE

3084904

Unavailable
