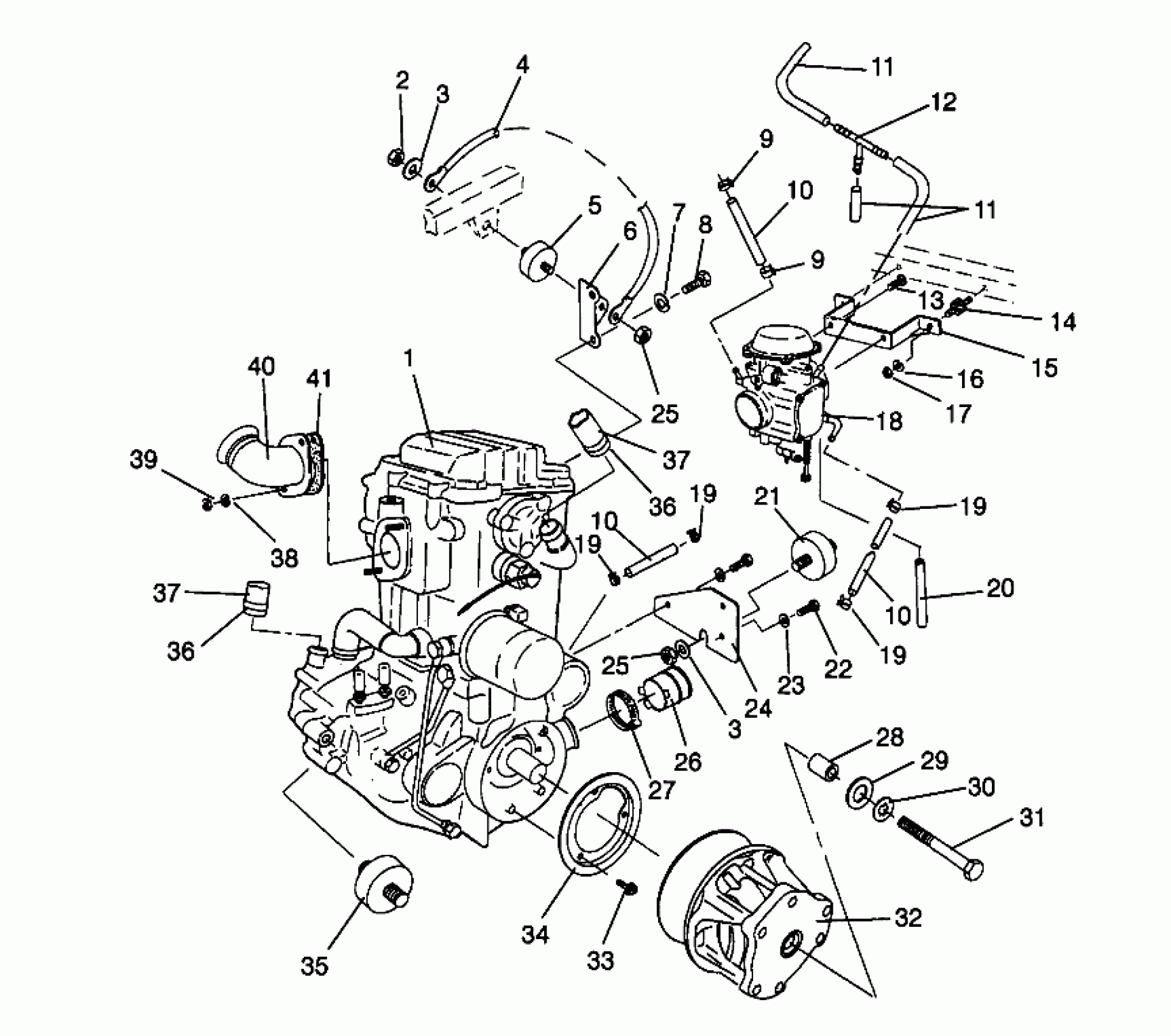

Polaris MAGNUM 2X4 - W957544 ENGINE MOUNTING Magnum 2x4 W957544 (4926852685A009) Diagram

#

Description
Price

1

ENG.(S.B.)EH42PL-01 [No Longer Available]

3085023

Unavailable

2

NUT LOCK(10)

7542411

$3.19

3

WASHER(10)

7555801

$3.99

3

WASHER(10)

7555801

$3.99

4

CABLE,GROUND/ENG.

4010067

Unavailable

5

MOUNT,RUBBER,TOP

3110044

Unavailable

6

MOUNT,ENG.TOP, BLK.

5240328-067

Unavailable

7

LOCK WASHER(10)

7552901

$1.49

8

BOLT(10)

7512315

$4.79

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

9

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

10

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FITTING, TEE

7052075

$9.59

13

SCREW & WASHER(10)

3084205

$3.99

14

MOUNT,CARB.

3110050

$12.99

15

BRKT,CARB.MT. Substituted by 5240609-067

5240609

Unavailable

16

WASHER(10)

7552605

$5.27

17

NUT HEX(10)

7542105

$3.99

18

Asm., Carburetor (See pg.)

-------

Unavailable

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

19

HOSE CLAMP, RED

7080003

$1.49

20

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

21

MOUNT,RUBBER,REAR Substituted by 3110068

3110045

Unavailable

22

SCREW(10)

7512490

$3.99

23

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

24

MT.,SEAL RETAINER,BLK.

5211431-067

Unavailable

25

NUT LOCK(10)

7542403

$3.99

25

NUT LOCK(10)

7542403

$3.99

26

BOOT,CLUTCH INTAKE

5410421

$11.19

27

CLAMP, NARROW BAND(10)

7080511

$4.79

28

BUSHING-.437 X.770 X.50

5430261

$7.19

29

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

30

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

31

BOLT(10)

7512566

$30.79

32

Asm., Drive Clutch (See Pg.)

-------

Unavailable

33

Asm., Screw and Washer (See pg.)

-------

Unavailable

34

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

35

MOUNT,RUBBER,FRONT

3110046

Unavailable

36

CLAMP,WORM DRIVE

7080547

Unavailable

36

CLAMP,WORM DRIVE

7080547

Unavailable

37

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

37

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

38

WASHER LOCK ,(10)

3080530

$3.19

39

NUT(10)

3080285

Unavailable

40

MANIFOLD, BLK. Substituted by 1260832-029

1260628-029

Unavailable

41

GASKET, EXH. Substituted by 3085075

3084689

Unavailable
