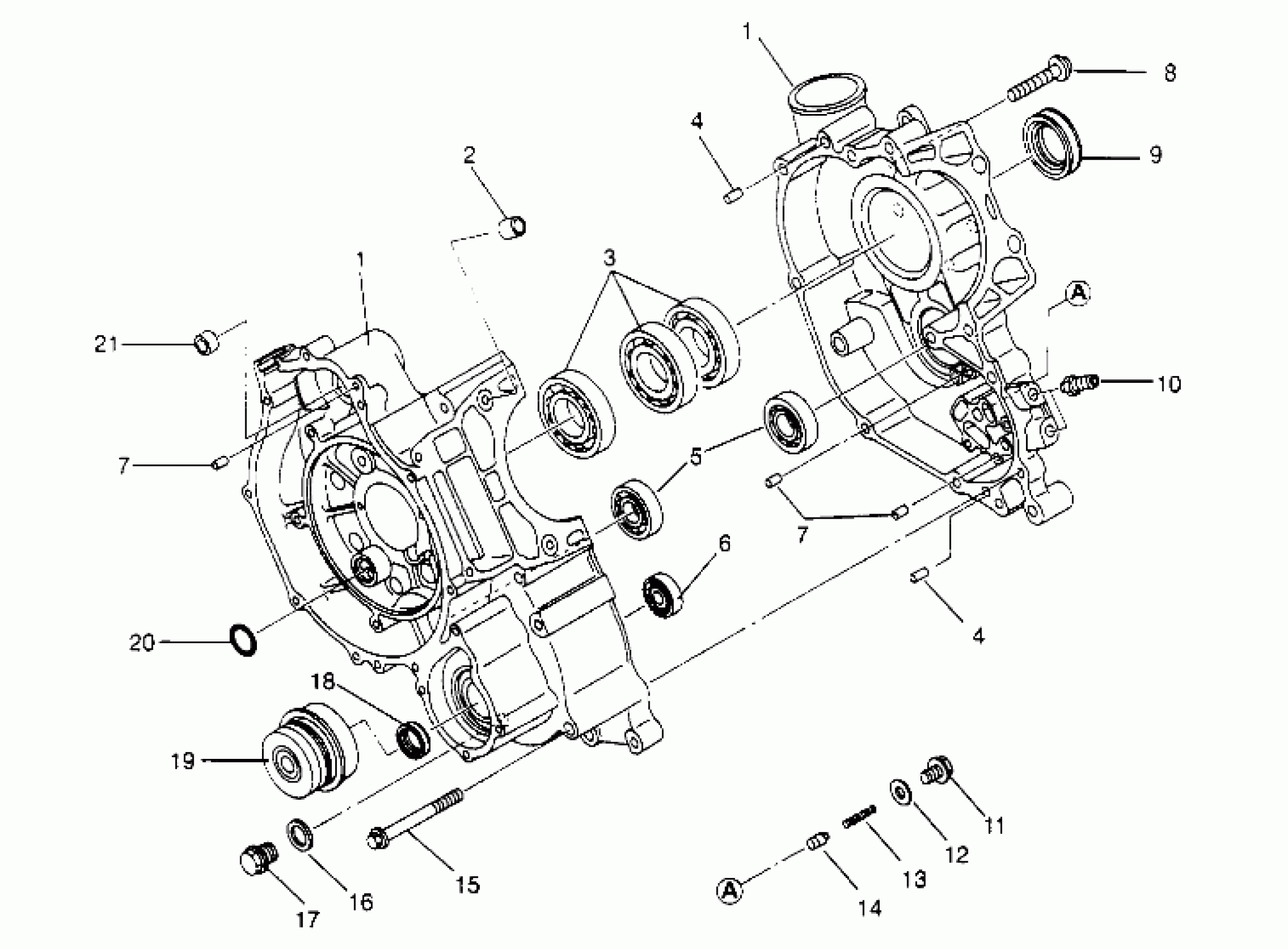

Polaris MAGNUM 2X4 - W957544 CRANKCASE Magnum 2x4 W957544 (4926852685C010) Diagram

#

Description
Price

1

CRANKCASE (Incl. 3-7, 9, 15, 18, 19, 21)

3084833

Unavailable

1

CRANKCASE (Incl. 3-7, 9, 15, 18, 19, 21)

3084833

Unavailable

2

PIN,STRAIGHT

3084838

Unavailable

3

BEARING, BALL

3080676

Unavailable

4

Pin, Dowel

3084840

$6.46

4

Pin, Dowel

3084840

$6.46

5

BEARING,BALL

3084834

Unavailable

6

BEARING,BALL

3084835

$31.75

7

PIN, DOWEL Substituted by 3086838

3080103

$7.14

7

PIN, DOWEL Substituted by 3086838

3080103

$7.14

8

SCREW & WASHER(10)

3084205

$3.97

9

SEAL, OIL

3084839

$28.32

10

Union

3084842

$32.37

11

PLUG

3084845

Unavailable

12

GASKET,(ALUM.)(10)

3084846

$5.65

13

SPRING

3084844

$4.84

14

VALVE Substituted by 3086810

3084843

Unavailable

15

BOLT,FLANGE

3084841

$3.17

16

GASKET

3082956

$4.84

17

PLUG Substituted by 3086749

3083453

Unavailable

18

SEAL, OIL

3084836

Unavailable

19

SEAL,MECHANICAL

3084837

$68.79

20

O-RING

3084847

$6.46

21

BUSHING, STARTER (Starter)

3083669

Unavailable
