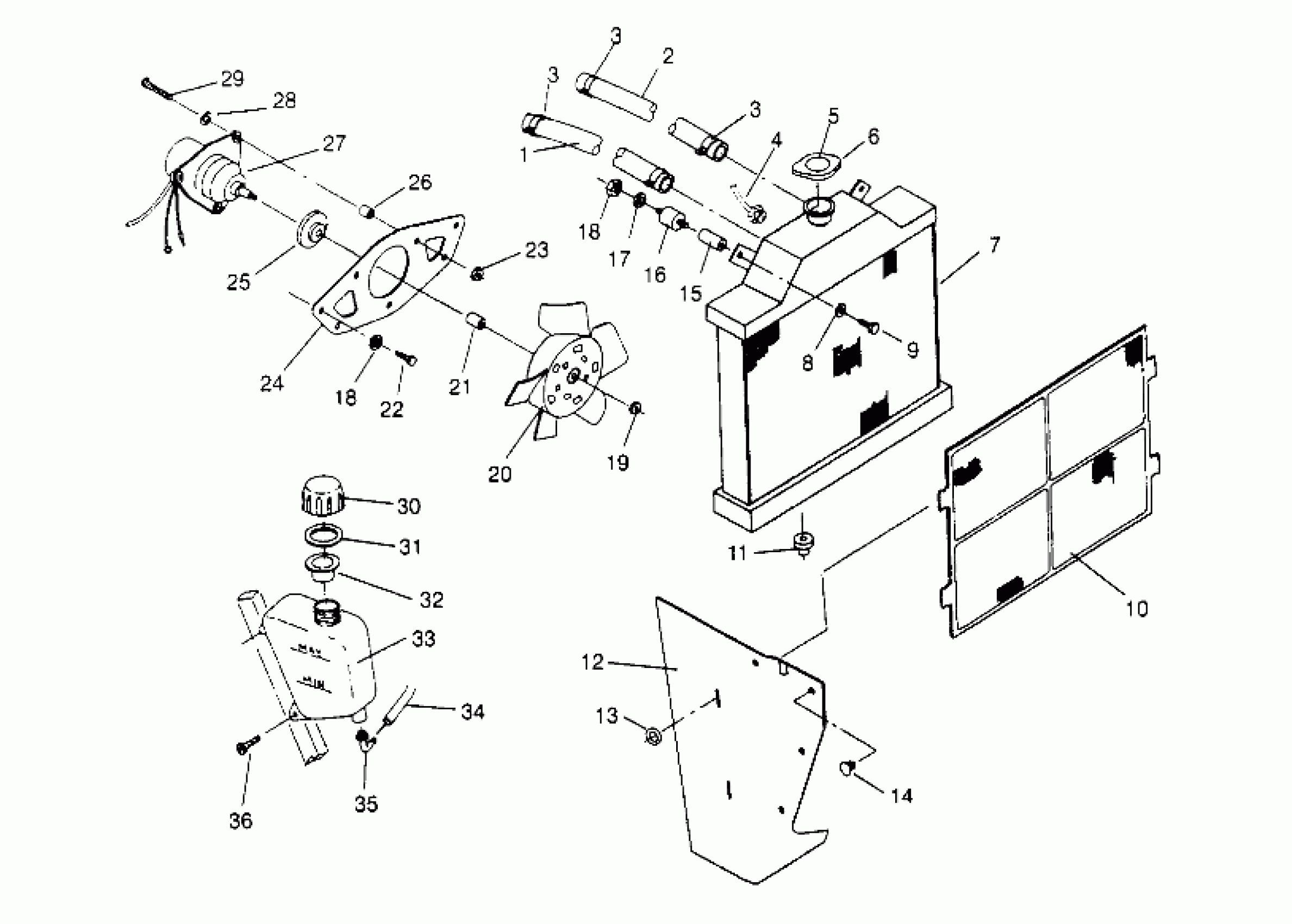

Polaris MAGNUM 2X4 - W957544 COOLING SYSTEM Magnum 2x4 W957544 (4926852685A010) Diagram

#

Description
Price

1

HOSE, WATER Substituted by 8450050-305

8450050-63

Unavailable

2

HOSE,WATER,47CM. Substituted by 8450050-305

8450050-47

Unavailable

3

CLAMP,WORM DRIVE

7080547

Unavailable

3

CLAMP,WORM DRIVE

7080547

Unavailable

3

CLAMP,WORM DRIVE

7080547

Unavailable

4

SWITCH,THERMAL FAN

4110178

Unavailable

5

DECAL(CPSC),RAD.CAP

7073068

Unavailable

6

CAP, RADIATOR Substituted by 2511270

2511189

Unavailable

7

RADIATOR,"U"FLOW

1240015

Unavailable

8

WASHER(10)

7552605

$5.27

9

SCREW(10)

7512113

$3.99

10

COVER,RADIATOR,W/MESH

5431760

Unavailable

11

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

12

SHIELD,LH,RADIATOR SIDE

5431829

$73.25

12

SHIELD,RH,RADIATOR SIDE

5431830

Unavailable

13

O RING

5410607

$5.99

14

CLIP,PLASTIC DART(10)

7670078

$3.19

15

Spacer, Mount

5020572

$8.79

16

Mount, Rubber

3110032

$7.99

17

NUT-LOCK(10)

7542122

$1.49

18

WASHER(10)

7558301

$1.49

18

WASHER(10)

7558301

$1.49

19

NUT

3083952

Unavailable

20

BLADE, FAN

5240822

$57.59

21

BUSHING

3083950

Unavailable

22

BOLT(10)

7512232

$1.49

23

NUT(10)

7541915

Unavailable

24

BRKT,COOLING FAN Substituted by 5224741-067

5222559-067

Unavailable

25

COVER

3083951

Unavailable

26

SPACER, FAN BRKT.

5333073

$3.83

27

MOTOR, FAN Substituted by 4170009 (Incl. 19, 21, 25, 27)

3084266

Unavailable

27

MOTOR, COMPL Substituted by 3084266

3084267

Unavailable

28

WASHER, FLAT(10)

7558201

$5.79

29

SCREW(10)

7511874

Unavailable

30

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

31

GASKET-OVERFLOW CAP

5810279

$2.41

32

PLUG,CAP Substituted by 5433774

5431895

Unavailable

33

Tank, Surge

5431673

Unavailable

34

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

35

FITTING,90 DEGREE

7052065

$7.19

36

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19
