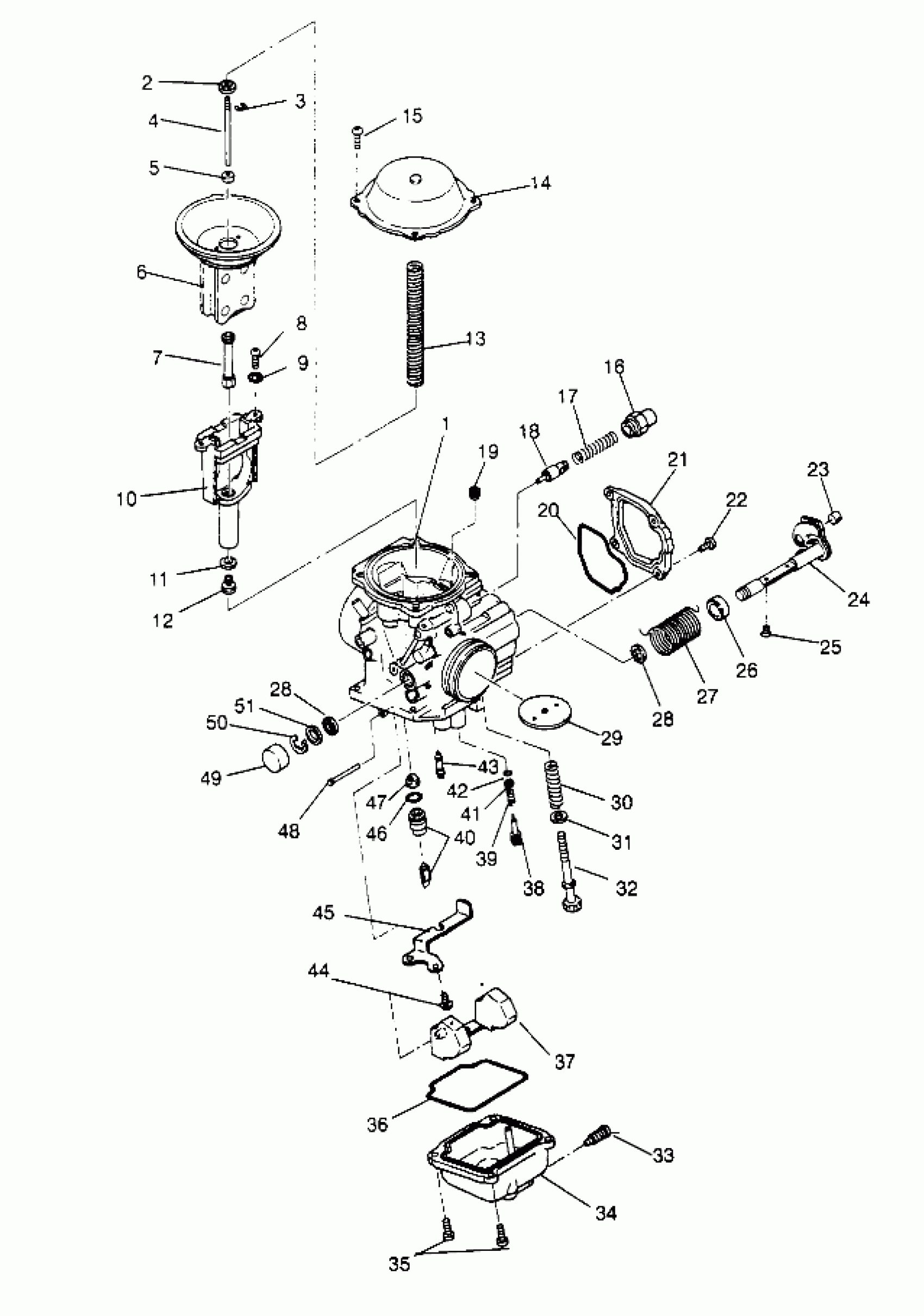

Polaris MAGNUM 2X4 - W957544 CARBURETOR Magnum 2x4 W957544 (4926852685D004) Diagram

#

Description
Price

1

CARBURETOR Substituted by 3130724 (Incl. 1-19, 24-51)

3130500

Unavailable

2

RING

3130507

$5.59

3

E-RING,(10)

3130508

$6.46

4

JET NEEDLE(5F81-3)

3130528

Unavailable

5

RING Substituted by 3130752

3130509

Unavailable

6

DIAPHRAGM ASM.

3130506

Unavailable

7

NEEDLE JET (P-8) (P-8)

3130510

$44.51

8

SCREW

3130541

$11.19

9

WASHER,SPRING

3130540

$4.79

10

JETBLOCK ASM.

3130504

$59.99

11

WASHER (10)

3130014

$1.59

12

MAIN JET,#140 (#140)

3130527

$8.08

13

SPRING

3130505

$23.99

14

Cover

3130503

$63.99

15

SCREW-MIKUNI C2=0408

3130592

Unavailable

16

HOLDER,GUIDE

3130199

$28.32

17

SPRING

3130538

$4.79

18

PLUNGER ASM. Substituted by 3130539

3130593

$34.74

19

JET,AIR,#130 (#130)

3130542

Unavailable

20

O-Ring

3130512

$39.99

21

COVER

3130511

$43.99

22

SCREW

3130535

$7.19

23

GUIDE,CABLE

3130543

$27.99

24

SHAFT ASM,THROTTLE

3130513

$79.99

25

SCREW

3130501

$3.99

26

Ring

3130514

$7.19

27

SPRING

3130589

$23.99

28

SEAL

3130515

$11.99

28

SEAL

3130515

$11.99

29

VALVE,THROTTLE (100)

3130502

$47.99

30

Spring

3130544

$9.59

31

Ring

3130545

$12.13

32

SCREW, ADJ.

3130546

$13.59

33

SCREW

3130521

$10.39

34

FLOATBODY ASM.

3130590

$103.99

35

SCREW

3130520

$1.59

36

O-RING

3130532

$31.99

37

FLOAT ASM.

3130529

$79.99

38

Adjuster

3130524

$23.99

39

Spring

3130525

$4.79

40

VALVE,NEEDLE

3130531

Unavailable

41

Washer

3130523

$2.39

42

O-Ring

3130522

$5.65

43

JET,PILOT,#42.5 (#42.5)

3130526

$27.99

44

SCREW

3130591

$3.99

45

PLATE

3130594

$27.99

46

O-RING

3130533

$5.59

47

FILTER

3130534

$8.79

48

PIN, FLOAT

3130361

$8.89

49

CAP

3130519

$10.39

50

E-RING

3130518

$1.59

51

PACKING

-------

Unavailable
