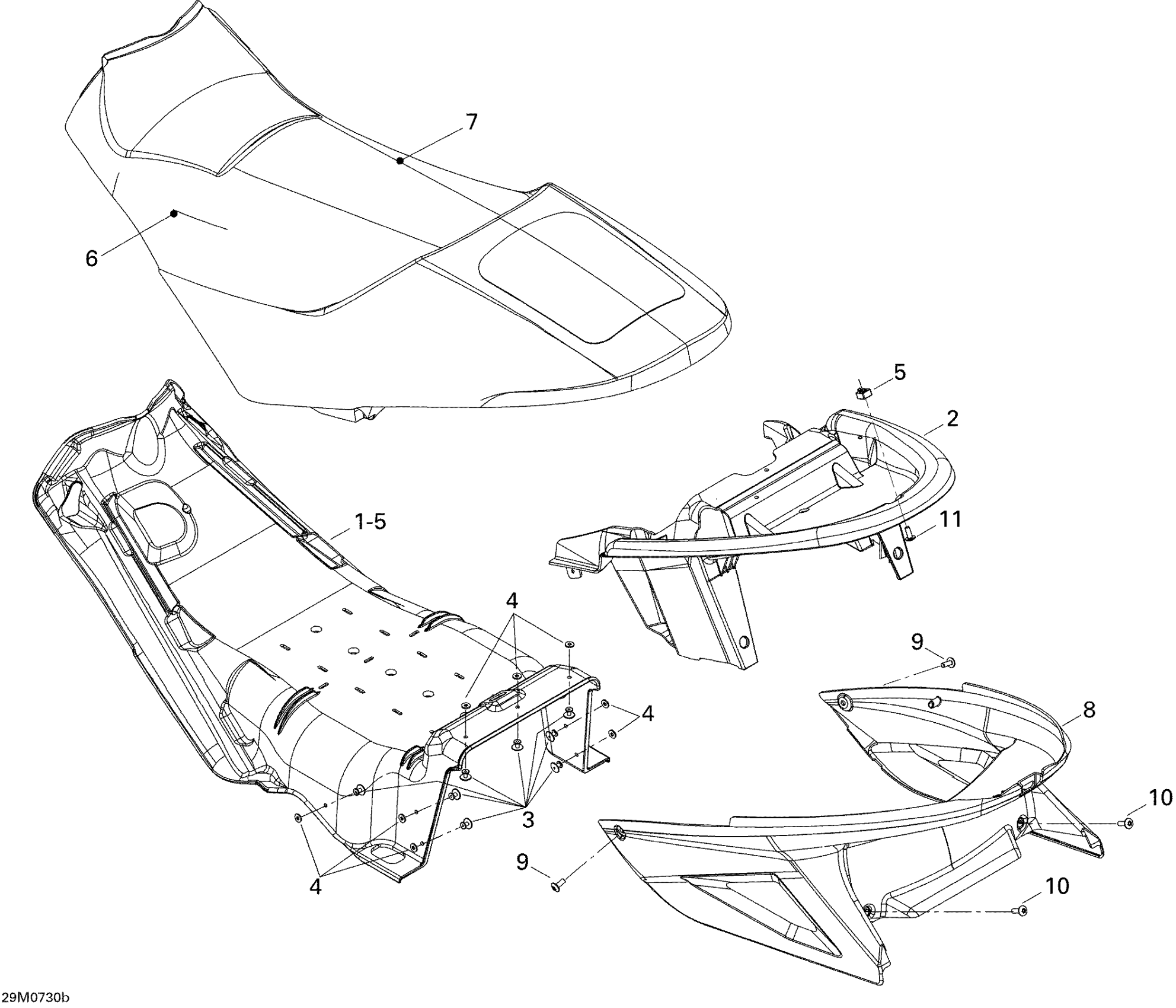

Ski-Doo MACH Z X, 2007 Seat X Diagram

#

Description
Price

1

SEAT BASE ASS'Y - Call your local BRP dealership

510004582

Unavailable

2

Seat Base Ass'y

510004214

Unavailable

3

Pop Rivet 3/16" | DS 650 X

293150104

$0.86

4

Flat Washer

517225900

$0.16

5

NUT HOUSING ASS'Y M6 - Call your local BRP dealership | Includes 2 To 3

708000046

Unavailable

6

Seat Cover

510004722

Unavailable

7

Seat Foam

510004216

Unavailable

8

TRUNK, BLACK - Call your local BRP dealership

510004628

Unavailable

9

Torx Truss Screw M6 X 16

250000721

$1.39

10

Torx Screw M6 X 20

250000722

$1.34

11

Torx Truss Screw M6 X 16

250000721

$1.39
