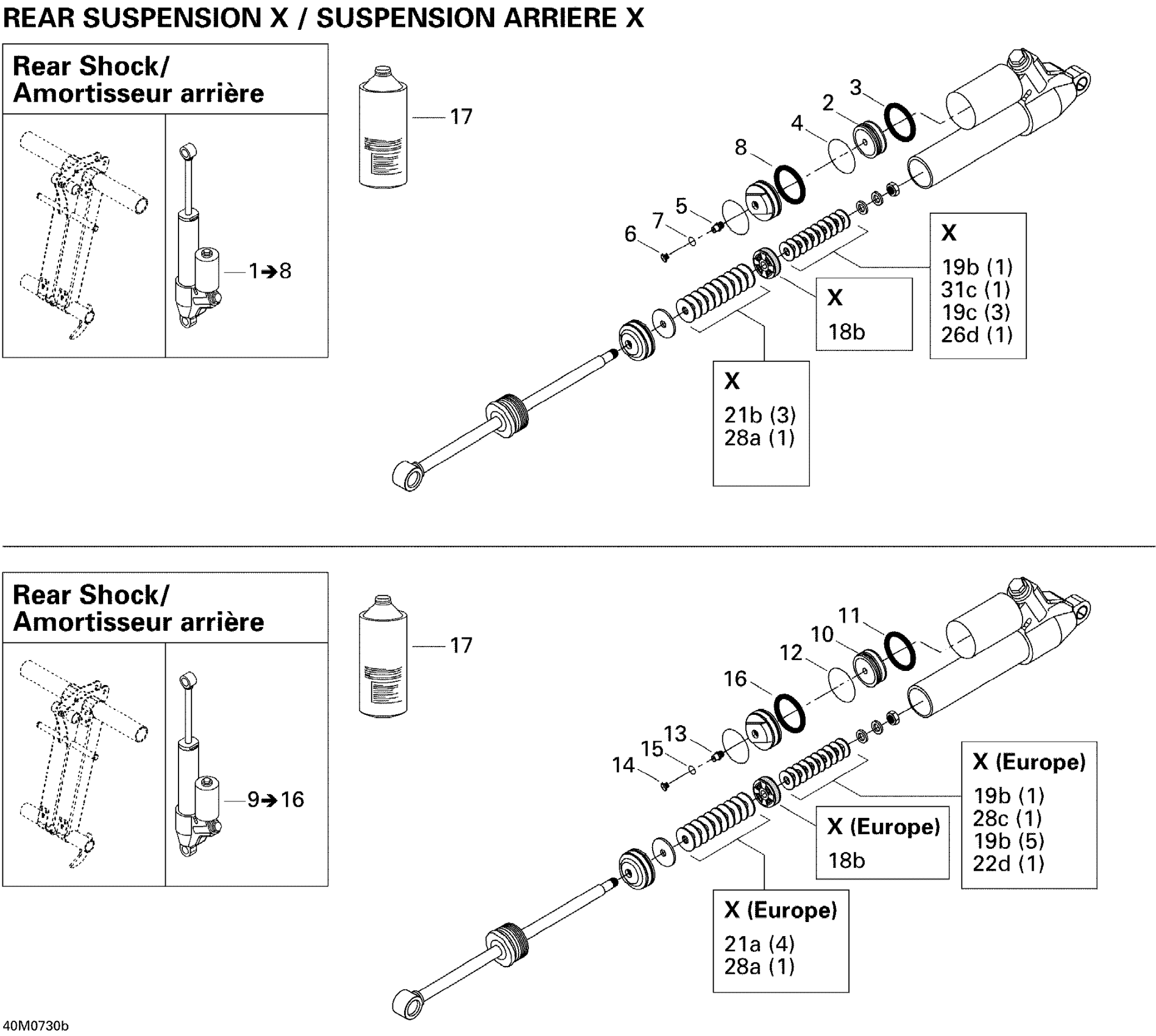

Ski-Doo MACH Z X, 2007 08- Take Apart Shock, Rear X Diagram
#
1
Center Shock
503191203
Unavailable
2
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
7
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
9
CENTER SHOCK - Call your local BRP dealership | Europe
503191220
Unavailable
10
FREE PISTON - Call your local BRP dealership
503189309
Unavailable
15
SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe
414888316
Unavailable
18a
Not Available As Spare Part - Friction Washer
Unavailable
18b
Not Available As Spare Part - Friction Washer
Unavailable
18c
Piston (2 X 0.3-2) (C36)
414888305
Unavailable
18d
Not Available As Spare Part - Friction Washer
Unavailable
18e
Not Available As Spare Part - Friction Washer
Unavailable
18f
Not Available As Spare Part - Friction Washer
Unavailable
18g
Piston (2 X 0.3-6) (C36)
414888307
Unavailable
19a
Leaf Valve Ø30 X 0.254 (C36)
415039100
Unavailable
19b
Leaf Valve Ø30 X 0.203 (C36)
414888318
Unavailable
19c
Leaf Valve Ø30 X 0.152 (C36)
414888319
Unavailable
19d
Not Available As Spare Part - Friction Washer
Unavailable
20a
Not Available As Spare Part - Friction Washer
Unavailable
20b
Not Available As Spare Part - Friction Washer
Unavailable
20c
Not Available As Spare Part - Friction Washer
Unavailable
20d
Not Available As Spare Part - Friction Washer
Unavailable
21a
Leaf Valve Ø26 X 0.254 (C36)
415039000
Unavailable
21b
Leaf Valve Ø26 X 0.203 (C36)
414888322
Unavailable
21c
Not Available As Spare Part - Friction Washer
Unavailable
21d
Not Available As Spare Part - Friction Washer
Unavailable
22a
Not Available As Spare Part - Friction Washer
Unavailable
22b
Not Available As Spare Part - Friction Washer
Unavailable
22c
Not Available As Spare Part - Friction Washer
Unavailable
22d
Not Available As Spare Part - Friction Washer
Unavailable
23a
Not Available As Spare Part - Friction Washer
Unavailable
23b
Not Available As Spare Part - Friction Washer
Unavailable
23c
Not Available As Spare Part - Friction Washer
Unavailable
23d
Not Available As Spare Part - Friction Washer
Unavailable
24a
Not Available As Spare Part - Friction Washer
Unavailable
24b
Not Available As Spare Part - Friction Washer
Unavailable
24c
Not Available As Spare Part - Friction Washer
Unavailable
24d
Leaf Valve Ø21 X 0.114 (C36)
414888340
Unavailable
25a
Not Available As Spare Part - Friction Washer
Unavailable
25b
Leaf Valve Ø20 X 0.203 (C36)
414888326
Unavailable
25c
Leaf Valve Ø20 X 0.152 (C36)
414888327
Unavailable
25d
Not Available As Spare Part - Friction Washer
Unavailable
26a
Not Available As Spare Part - Friction Washer
Unavailable
26b
Not Available As Spare Part - Friction Washer
Unavailable
26c
Not Available As Spare Part - Friction Washer
Unavailable
26d
Not Available As Spare Part - Friction Washer
Unavailable
27a
Not Available As Spare Part - Friction Washer
Unavailable
27b
Leaf Valve Ø18 X 0.203 (C36)
414888329
Unavailable
27c
Leaf Valve Ø18 X 0.152 (C36)
414888330
Unavailable
27d
Not Available As Spare Part - Friction Washer
Unavailable
28a
Not Available As Spare Part - Friction Washer
Unavailable
28b
Not Available As Spare Part - Friction Washer
Unavailable
28c
Not Available As Spare Part - Friction Washer
Unavailable
28d
Not Available As Spare Part - Friction Washer
Unavailable
29a
Leaf Valve Ø16 X 0.254 (C36)
414888331
Unavailable
29b
Leaf Valve Ø16 X 0.203 (C36)
414888332
Unavailable
29c
Leaf Valve Ø16 X 0.152 (C36)
414888333
Unavailable
29d
Leaf Valve Ø16 X 0.114 (C36)
415038900
Unavailable
30a
Not Available As Spare Part - Friction Washer
Unavailable
30b
Leaf Valve Ø15 X 0.203 (C36)
414888335
Unavailable
30c
Not Available As Spare Part - Friction Washer
Unavailable
30d
Not Available As Spare Part - Friction Washer
Unavailable
31a
Not Available As Spare Part - Friction Washer
Unavailable
31b
Not Available As Spare Part - Friction Washer
Unavailable
31c
Not Available As Spare Part - Friction Washer
Unavailable
31d
Not Available As Spare Part - Friction Washer
Unavailable
32a
Not Available As Spare Part - Friction Washer
Unavailable
32b
Not Available As Spare Part - Friction Washer
Unavailable
32c
Not Available As Spare Part - Friction Washer
Unavailable
32d
Not Available As Spare Part - Friction Washer
Unavailable
33a
Leaf Valve Ø12 X 0.254 (C36)
503189538
Unavailable
33b
Leaf Valve Ø12 X 0.203 (C36)
414888338
Unavailable
33c
Not Available As Spare Part - Friction Washer
Unavailable
33d
Leaf Valve Ø12 X 0.114 (C36)
415038800
Unavailable
