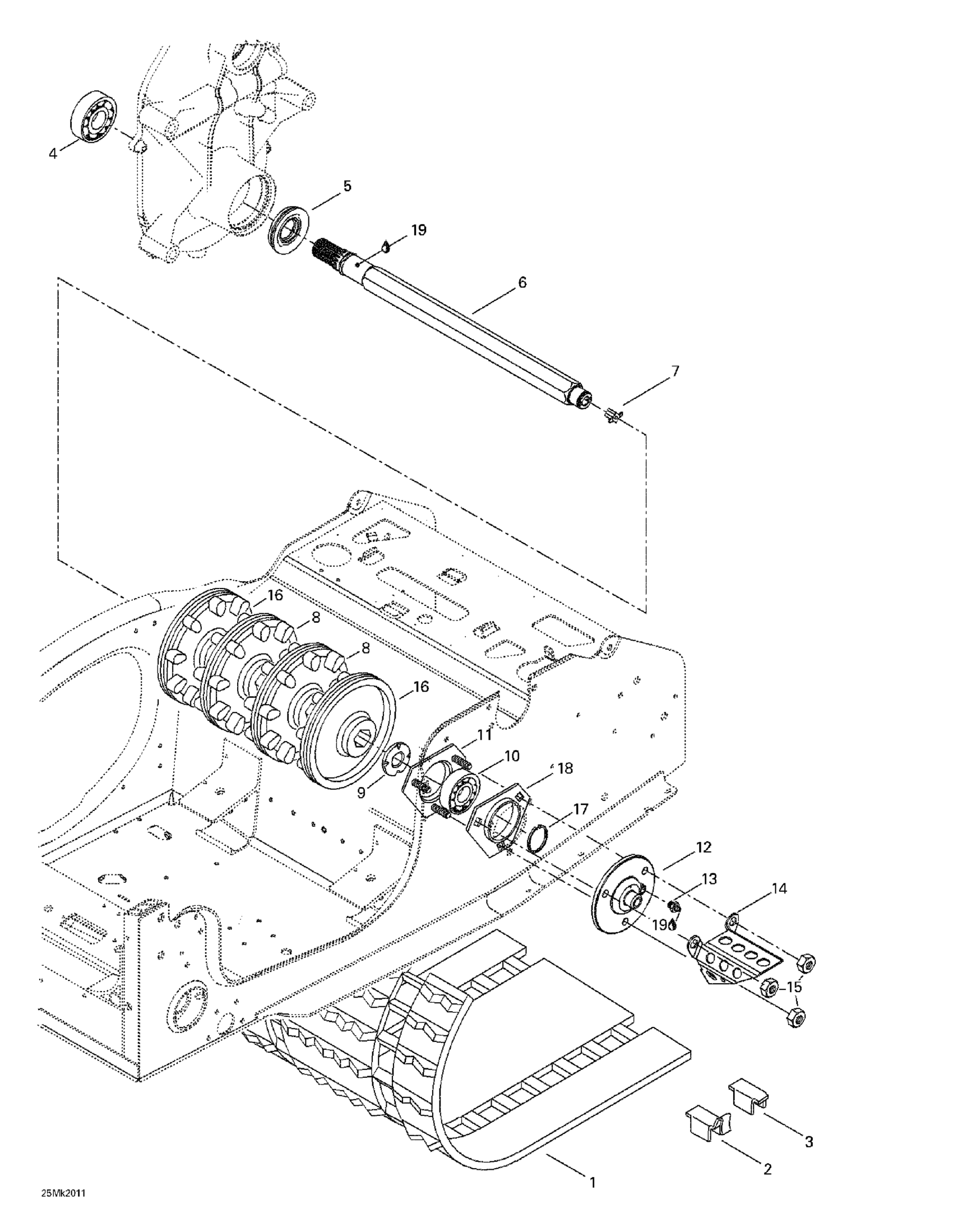

Ski-Doo Mach Z R Millennium Edition, 2000 05- Drive Axle And Track Diagram

#

Description
Price

1

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

2

Track Guide | Track Width 16''

415129528

$3.29

3

Cleat

504152651

$9.69

4

Ball Bearing 6206 | Formula 500 LC.

405403900

Unavailable

5

OIL SEAL - Call your local BRP dealership

504151925

Unavailable

6

Drive Axle

501026500

Unavailable

7

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable

8

9 Tooth Sprocket

414663900

Unavailable

9

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

10

Ball Bearing

293350060

$38.49

11

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

Grease Fitting

408200700

$3.49

14

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

9 Tooth Half Sprocket

414990800

Unavailable

17

CIRCLIP - Call your local BRP dealership

371910200

$2.09

18

FLANGE - Call your local BRP dealership

501025000

Unavailable

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
