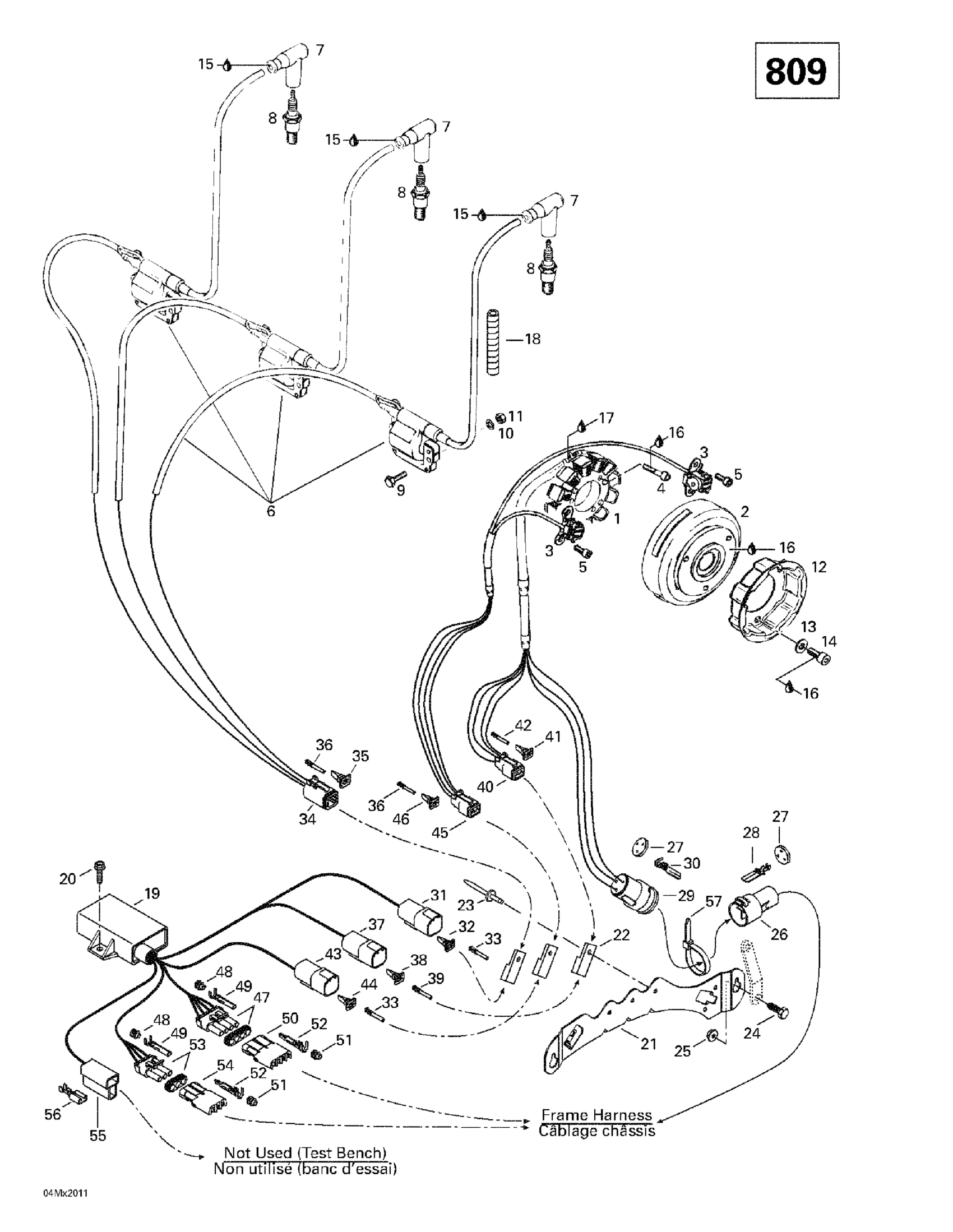

Ski-Doo Mach Z R Millennium Edition, 2000 03- Magneto (12V, 290W) 2 Diagram

#

Description
Price

1

Stator Ass'y | Includes 1 - 7.

410922927

Unavailable

2

Magneto Flywheel

410922930

Unavailable

3

Pick Up Ass'y | Includes 9 - 12.

410922909

Unavailable

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Allen Screw M6 X 14

420840391

$1.69

6

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

7

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

8

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

10

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

11

Hex. Nut M6

232061414

$0.53

12

Starting Pulley

420852418

Unavailable

13

Flat Washer

420827405

$1.69

14

Socket Head Screw M8 X 12

420841520

$1.69

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Loctite 243, 10 ml

293800060

$21.49

17

Silicone Sealant 51388, 300 ml

296000309

$36.99

18

Tubing 10 MM 1000MM Long

219704407

$2.79

19

Calibration Module | Formula III 700 R.

515175433

Unavailable

20

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

21

Housing Support

515175148

Unavailable

22

Clip

270000141

$11.49

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Hex. Screw M5 X 14

207151444

$0.87

25

Hex. Flange Elastic Nut M5

233251414

$1.04

26

MALE HOUSING - Call your local BRP dealership

409207900

Unavailable

27

SEAL - Call your local BRP dealership

409208500

Unavailable

28

MALE TERMINAL - Call your local BRP dealership

409011100

Unavailable

29

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409208200

Unavailable

30

FEMALE TERMINAL - Call your local BRP dealership

409011900

Unavailable

31

Male Terminal Housing, 6 Circuits

710001539

$19.99

32

Female Lock, 6 Circuits

278000735

$3.19

33

Male Terminal

278000631

$4.39

34

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

$21.99

35

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

36

Female Terminal

278000632

$2.09

37

MALE TERMINAL HOUSING, 4 CIRCUITS - Call your local BRP dealership

710000045

Unavailable

38

MALE LOCK, 4 CIRCUITS - Call your local BRP dealership

710000046

Unavailable

39

MALE TERMINAL - Call your local BRP dealership

409014800

Unavailable

40

Female Terminal Housing (4 circuits)

515175245

Unavailable

41

Female Lock (4 circuits)

515175246

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

43

Female Housing, 4 Circuits

278000635

$16.49

44

Female Wedge, 4 Circuits

278000636

$4.39

45

Male Connector, 4 Circuits | CE

278000739

$19.49

46

Male Lock, 4 Circuits | CE

278000738

$3.09

47

Male Housing, 4 Circuits

278000395

$15.99

48

Wire Seal

278000218

$4.39

49

Female Terminal

278000223

$3.19

50

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

51

Seal

409208300

Unavailable

52

Male Terminal | XT Models

278000222

$3.19

53

Male Housing, 3 Circuits

278000273

$9.59

54

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

55

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

56

Female Terminal

561503100

$2.41

57

Tie-Rap 180 mm

414115200

$0.11
