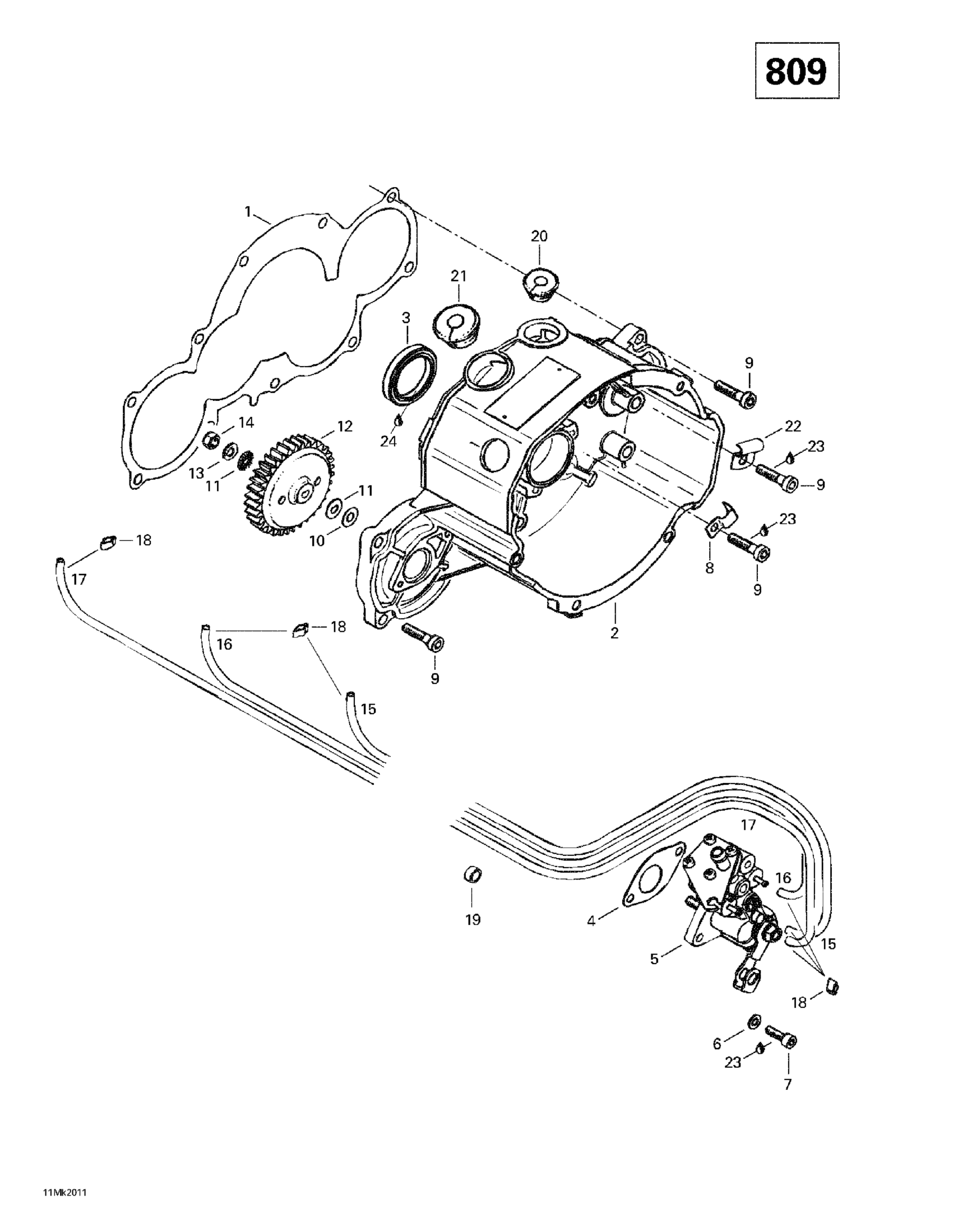

Ski-Doo Mach Z R Millennium Edition, 2000 03- Ignition Housing Oil Pump Diagram

#

Description
Price

1

Gasket

420950282

$23.49

2

Ignition Housing

420811312

Unavailable

3

OIL SEAL - Call your local BRP dealership

420931290

Unavailable

4

Gasket

420950460

Unavailable

5

Oil Pump Ass'y

420887935

Unavailable

6

Lock Washer

420945750

Unavailable

7

Allen Screw M5 x 16

420640071

Unavailable

8

Cable Clamp

420953387

Unavailable

9

Allen Screw M6 x 25

420941691

Unavailable

10

Flat Washer

420244215

Unavailable

11

Washer

420227150

Unavailable

12

Oil Pump Gear (36 Tooth)

420834270

Unavailable

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Elastic Stop Nut M6

232561414

$0.55

15

Oil Hose 1500Mm Long

219704404

$17.26

16

Oil Hose 1500Mm Long

219704404

$17.26

17

Oil Hose 1500Mm Long

219704404

$17.26

18

Clamp

420256408

Unavailable

19

Rubber Ring

420960700

Unavailable

20

Cable Grommet

420860967

Unavailable

21

Cable Grommet

420860965

$14.28

22

Clamp

420953382

Unavailable

23

Loctite 243, 10 ml

293800060

$21.49

24

Dow Corning 111, 150 g

413707000

$59.99
