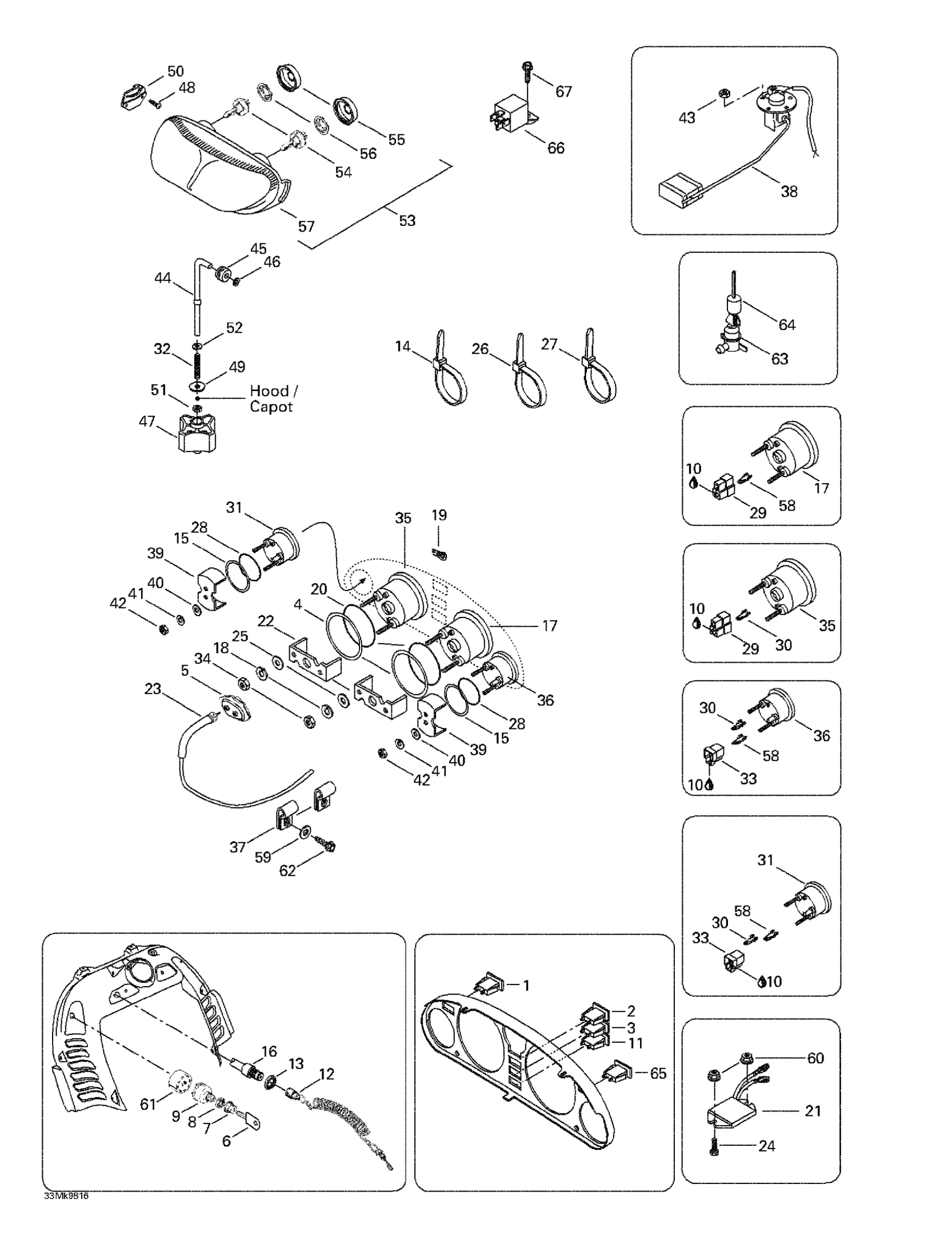

Ski-Doo Mach Z LT (SV Track), 1998 10- Electrical System Diagram

#

Description
Price

1

Pilot Lamp (Heated Thumb)

410109400

Unavailable

2

Pilot Lamp (Red)

410109500

Unavailable

3

Pilot Lamp (Blue)

410109600

Unavailable

4

Washer

517258500

Unavailable

5

Drive Angle | Formula S.

572022300

Unavailable

6

Blank Key

415129350

$26.49

7

Switch Boot

570013700

$11.49

8

FACE NUT - Call your local BRP dealership

410112100

Unavailable

9

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

10

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

11

Pilot Lamp, Dess | 600 SUV

410113300

Unavailable

12

DESS

515178284

$84.99

13

Safety Nut (DESS Switch)

278002963

$3.28

14

Tie Wrap 368 mm

293750008

$1.04

15

WASHER - Call your local BRP dealership

517258600

Unavailable

16

TERMINAL ASSY - Call your local BRP dealership | SUV 600

515166800

Unavailable

17

Speedometer (KMH)

415096300

Unavailable

Speedometer (MH)

415096400

Unavailable

18

Lock Washer

414806700

Unavailable

19

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

20

O-Ring

414807100

Unavailable

21

Voltage Regulator

515170800

Unavailable

22

Case Holder

414806500

Unavailable

23

Speedometer Cable

415101500

Unavailable

24

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

25

Flat Washer

517225900

$0.18

26

Tie Wrap 142 mm

293750002

$1.25

27

Tie-Rap 180 mm

414115200

$0.11

28

O-RING - Call your local BRP dealership

414807200

Unavailable

29

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

30

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

31

Fuel Gauge

415097300

Unavailable

32

SPRING - Call your local BRP dealership

415100600

Unavailable

33

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

34

Nut

414806900

Unavailable

35

Tachometer

415096500

Unavailable

36

Temperature Gauge

415097200

Unavailable

37

Open Clamp

414176000

$1.99

38

Fuel Sensor Ass'y | Includes 46 - 49.

415080800

Unavailable

39

Case Holder

415099800

Unavailable

40

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

41

Lock Washer | SE Models

414833700

Unavailable

42

NUT - Call your local BRP dealership | SE Models

414833600

Unavailable

43

Elastic Stop Nut M5

232551414

$0.87

44

ADJUSTER ROD - Call your local BRP dealership

517295800

Unavailable

45

Grommet - Call your local BRP dealership

415100800

Unavailable

46

Push Nut

732610072

$2.19

47

Handle - Call your local BRP dealership

515175548

Unavailable

48

SCREW M4.8 X 19 - Call your local BRP dealership

210641940

$0.70

49

Not Available As Spare Part - Friction Washer

Unavailable

50

RH Support

517289300

Unavailable

LH Support

517289400

Unavailable

51

Elastic Stop Nut M6

232561414

$0.55

52

Flat Washer 6 mm

234061410

$1.36

53

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

54

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

55

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

56

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

57

Halogen Headlamp Ass'y | Includes 4 to 7

515176311

$309.99

58

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

59

Washer | DS 650 X

391301600

$0.48

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

61

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

62

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

63

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

64

Float

414681900

Unavailable

65

Pilot Lamp (Heated Handle)

410109300

Unavailable

66

Relay | DS 650 X

710010053

$23.49

67

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

68

Harness Ass'y (Not Shown)

515170900

Unavailable

69

Hood Harness Ass'y (Not Shown)

515171000

Unavailable
