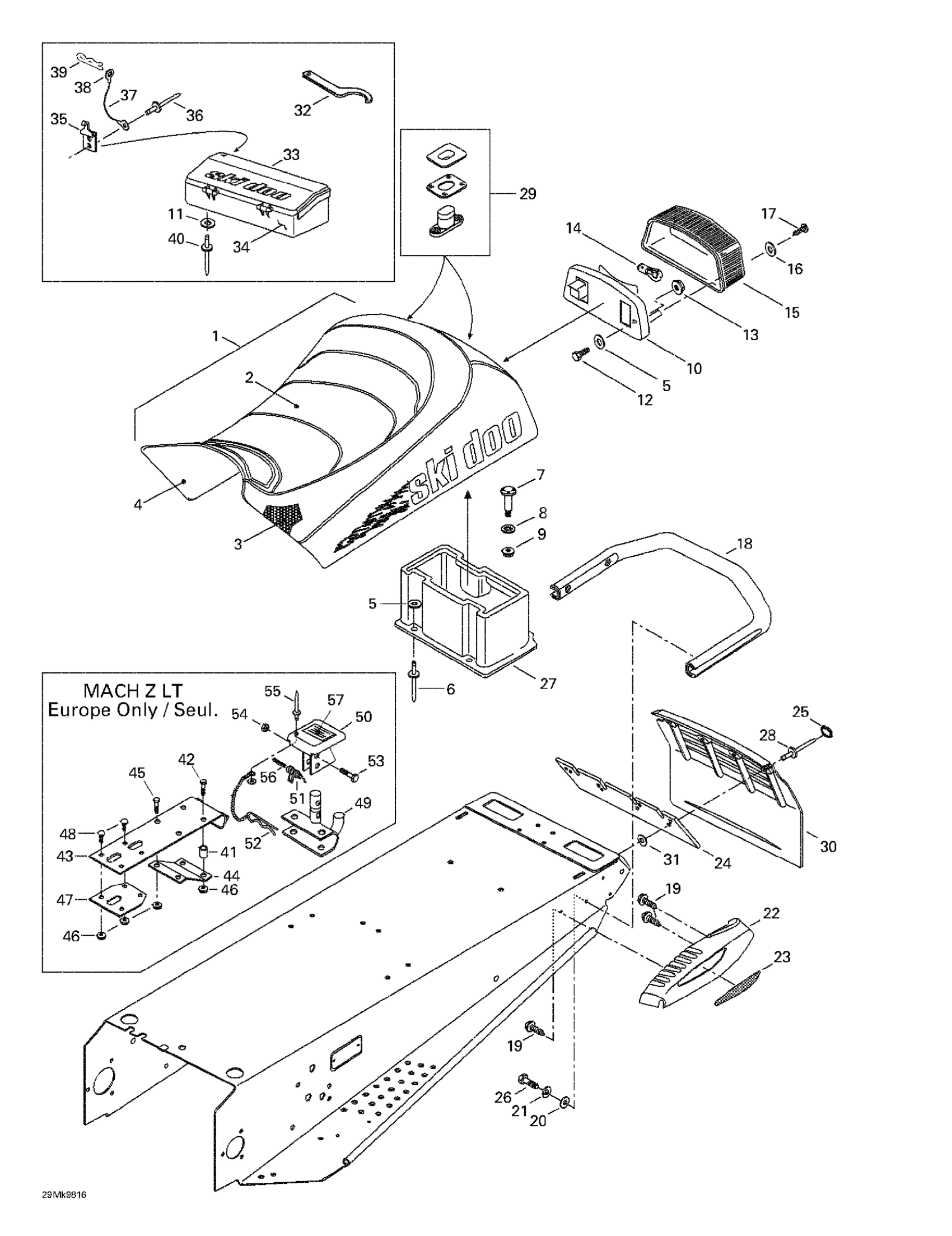

Ski-Doo Mach Z LT (SV Track), 1998 09- Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover

415046303

Unavailable

3

Foam Seat

415046302

Unavailable

4

Sub-Seat

572088200

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

Washer

517124300

$0.19

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

Rear Bumper (Europe) | Mach Z LT.

518272510

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

RH Moulding Ass'y | Includes 22 - 23. Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

520000024

Unavailable

LH Moulding Ass'y | Formula III 600. Formula III 600 R. Formula III 700. Formula III 700 R.

520000025

Unavailable

RH Moulding Ass'y (Europe) | Formula III 600.

520000026

Unavailable

LH Moulding Ass'y (Europe) | Formula III 600.

520000027

Unavailable

RH Moulding Ass'y | Formula III 600 LT.

520000028

Unavailable

LH Moulding Ass'y | Formula III 600 LT.

520000029

Unavailable

RH Moulding Ass'y (Europe) | Mach Z LT.

520000030

Unavailable

LH Moulding Ass'y (Europe) | Mach Z LT.

520000031

Unavailable

23

RH Red Reflector

415056000

Unavailable

LH Red Reflector

415056001

Unavailable

RH Amber Reflector (Europe) | Formula III 600.

415099700

Unavailable

LH Amber Reflector (Europe) | Formula III 600.

415099701

Unavailable

24

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

25

Cap

415073300

Unavailable

26

Hex. Screw M8 X 20

207182044

$0.74

27

Rear Trunk

572039802

Unavailable

28

Pop Rivet 3/16"

293150100

$1.09

29

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

30

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

Snow Guard

520000000

Unavailable

Snow Guard

572103804

Unavailable

Snow Guard | ADRENALINE & TRAIL

572103803

Unavailable

31

Flat Washer

517225900

$0.18

32

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

Wrench-Adjuster | Formula III 600 LT. Formula III 700. Formula III 700 R.

529030700

Unavailable

33

Tool Box Ass'y

572092400

Unavailable

34

Tool Kit (Not Shown)

529032000

Unavailable

35

Latch

517168500

Unavailable

36

Pop Rivet 5/32

390403000

$0.40

37

Wire

414407400

Unavailable

38

Terminal Ring

561502800

Unavailable

39

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

41

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

42

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

43

Support

517275500

Unavailable

44

Reinforcement | Europe

517223500

Unavailable

45

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

47

Inner Plate

517256100

Unavailable

48

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

49

Hitch | Europe

517199300

Unavailable

50

Hitch Protector | Europe

517152700

Unavailable

51

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

52

Hair Pin

114045200

$11.11

53

Hex. Screw M6 X 30

207063044

$1.26

54

Elastic Stop Nut M6

232561414

$0.55

55

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

56

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

57

Instruction Label (Hitch)

414998500

Unavailable
