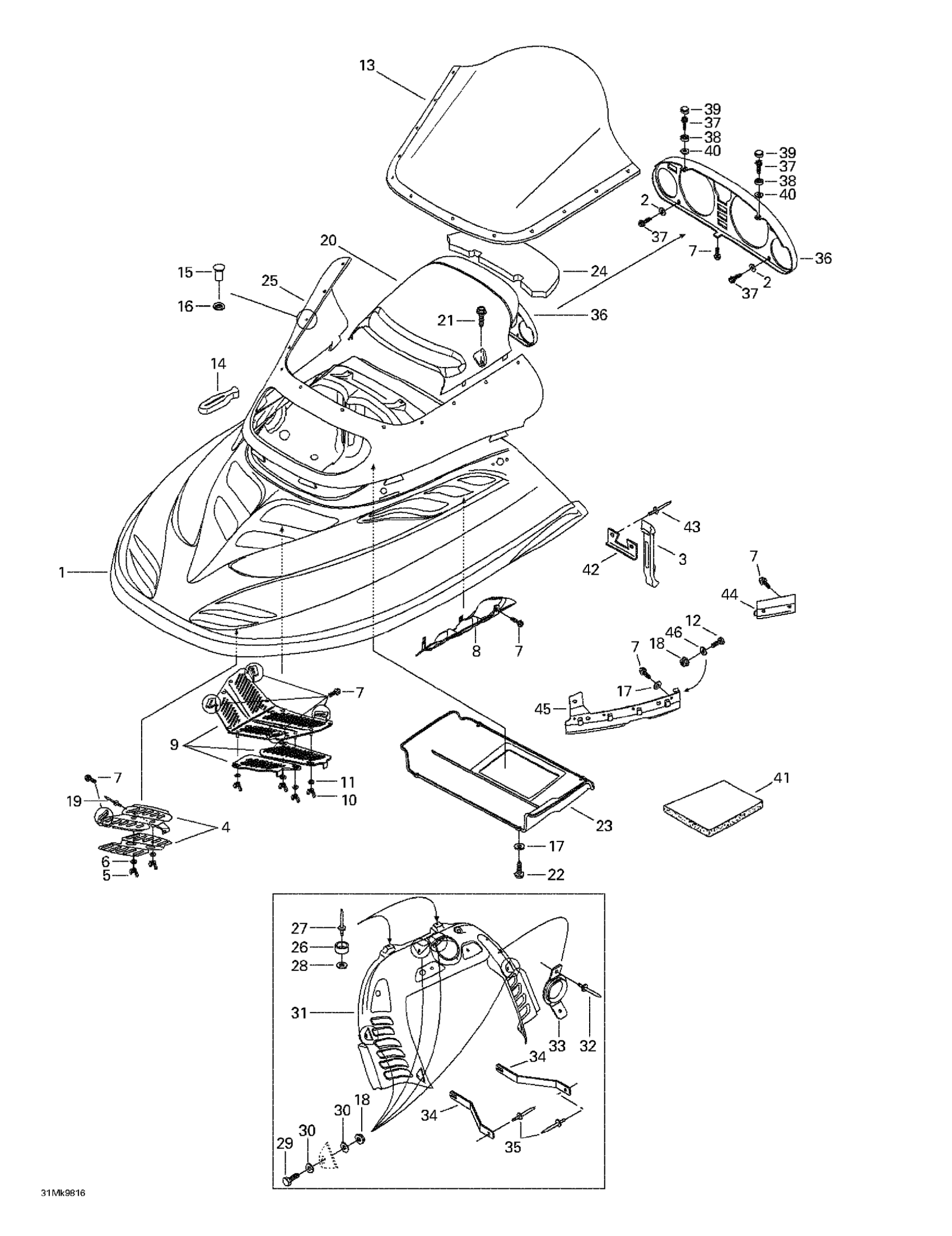

Ski-Doo Mach Z LT (SV Track), 1998 09- Cab, Console Diagram

#

Description
Price

1

Hood (Black)

572087500

Unavailable

2

Washer

517124300

$0.19

3

Hood Latch

517302152

$18.49

4

RH Front Grill Ass'y | Includes 4 - 6.

517302071

Unavailable

LH Front Grill Ass'y

517302072

Unavailable

5

Wing Nut M5

414070300

Unavailable

6

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

7

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

8

RH Rear Grill

517288900

Unavailable

RH Rear Grill (Europe) | Formula III 600.

517300602

Unavailable

LH Rear Grill

517300600

Unavailable

9

Center Grill Ass'y | Includes 8 - 14.

517302073

Unavailable

10

Wing Nut M5

414070300

Unavailable

11

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

12

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

13

Low Windshield

415045800

Unavailable

14

Windshield Latch

570023800

$4.49

15

STUD - Call your local BRP dealership

572103500

Unavailable

16

Push Nut

732610072

$2.19

17

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

18

Hex. Flange Elastic Nut M5

233251414

$1.04

19

Pop Rivet 3/16"

390402400

$0.35

20

Air Intake Deflector

572107300

Unavailable

21

Tuflock Phillips Plastic Screw

414745900

$1.69

22

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

23

Plate

572087800

Unavailable

24

Filter Foam

415123100

Unavailable

25

Windshield Support

572087700

Unavailable

26

Rubber Stopper

415018100

$2.49

27

Pop Rivet 1/8" | SM5

390401600

$5.69

28

WASHER - Call your local BRP dealership

293150007

Unavailable

29

Hex. Screw M5 X 20

207152044

$0.90

30

Washer | DS 650 X

391301600

$0.48

31

Console | Mach Z. Mach Z LT. Mach Z LT R SV Track.

572087900

Unavailable

Console | Grand Touring 700.

572087904

Unavailable

32

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

33

Rope Guide

517296800

Unavailable

34

Bracket

517296900

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Gauge Support | Grand Touring 700.

572098602

Unavailable

37

Screw K40 X 10

241140060

$1.48

38

RETAINER CAP - Call your local BRP dealership

414436800

Unavailable

39

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

40

Flat Washer 4 mm, Stainless

234042600

$1.15

41

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

42

Reinforcement

517302039

Unavailable

43

Rivet

390401400

$0.53

44

RH Hood Guide (Install on LH side)

517302010

Unavailable

LH Hood Guide (Install on RH side)

517302012

Unavailable

45

RH Hood Guide

517301200

Unavailable

LH Hood Guide

517301300

Unavailable

46

WASHER-LOCK SERRATED INT.EXT.M6 - Call your local BRP dealership This part replaces 420845270.

420845330

Unavailable
