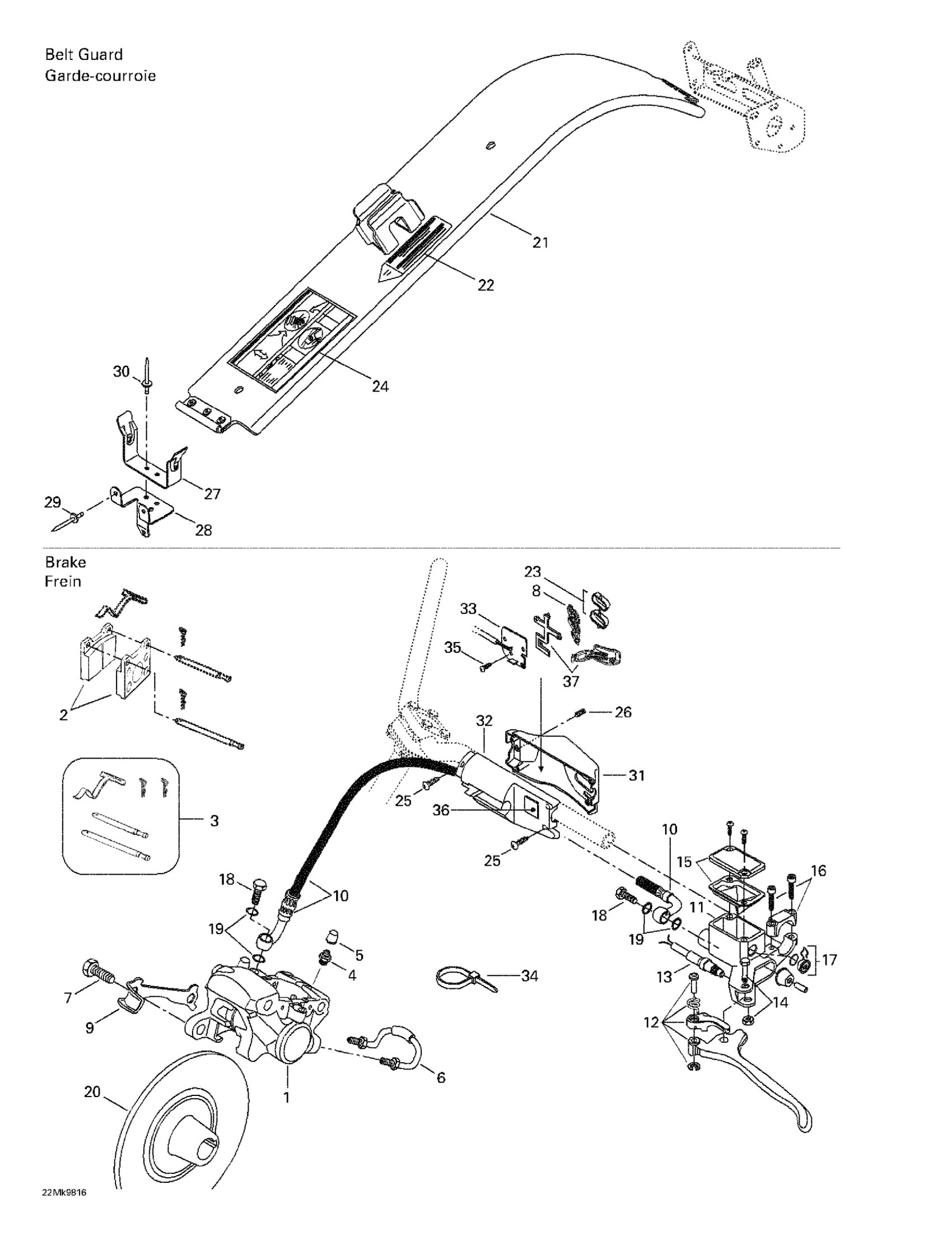

Ski-Doo Mach Z LT (SV Track), 1998 06- Hydraulic Brake And Belt Guard Diagram

Caliper | Includes 10 - 15.

414920000

Unavailable

Brake Pad Kit

415084600

$79.49

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

Hex. Screw M10 X 35

207103544

$1.58

Silicon Pad

415047909

Unavailable

Locking Tab

507031900

Unavailable

Hose

415046500

Unavailable

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$369.99

LEVER - Call your local BRP dealership

507032428

Unavailable

Microswitch

507032366

$98.99

Pin Ass'y

415030000

$19.99

Cap

415029900

$41.49

Clamp And Screw Kit

507032477

$23.99

WINDOW - Call your local BRP dealership

414990600

Unavailable

Banjo Bolt

414920500

$8.68

Washer

414920600

$1.90

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

Belt Guard Ass'y | Includes 21 - 22.

417222031

Unavailable

Warning Decal

415028900

Unavailable

Switch Kit

415047917

Unavailable

Suspension Adjustment Decal | Formula III 600.

418001713

Unavailable

Suspension Adjustment Decal | Mach Z LT. Mach Z LT R.

418001716

Unavailable

Screw

415047913

Unavailable

Socket Set Screw M8 X 10

414440800

$4.12

Belt Guard Bracket

518202100

$17.49

Pulley Guard Support

518317000

Unavailable

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

Pop Rivet 3/16"

390402200

$0.35

FRONT HOUSING ASS'Y - Call your local BRP dealership

415089500

Unavailable

Rear Housing Ass'y

415047903

Unavailable

PCB Ass'y

415127450

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Screw M3

415047912

Unavailable

Spacer (neoprene)

415047915

Unavailable

Lever Kit

415047918

Unavailable
