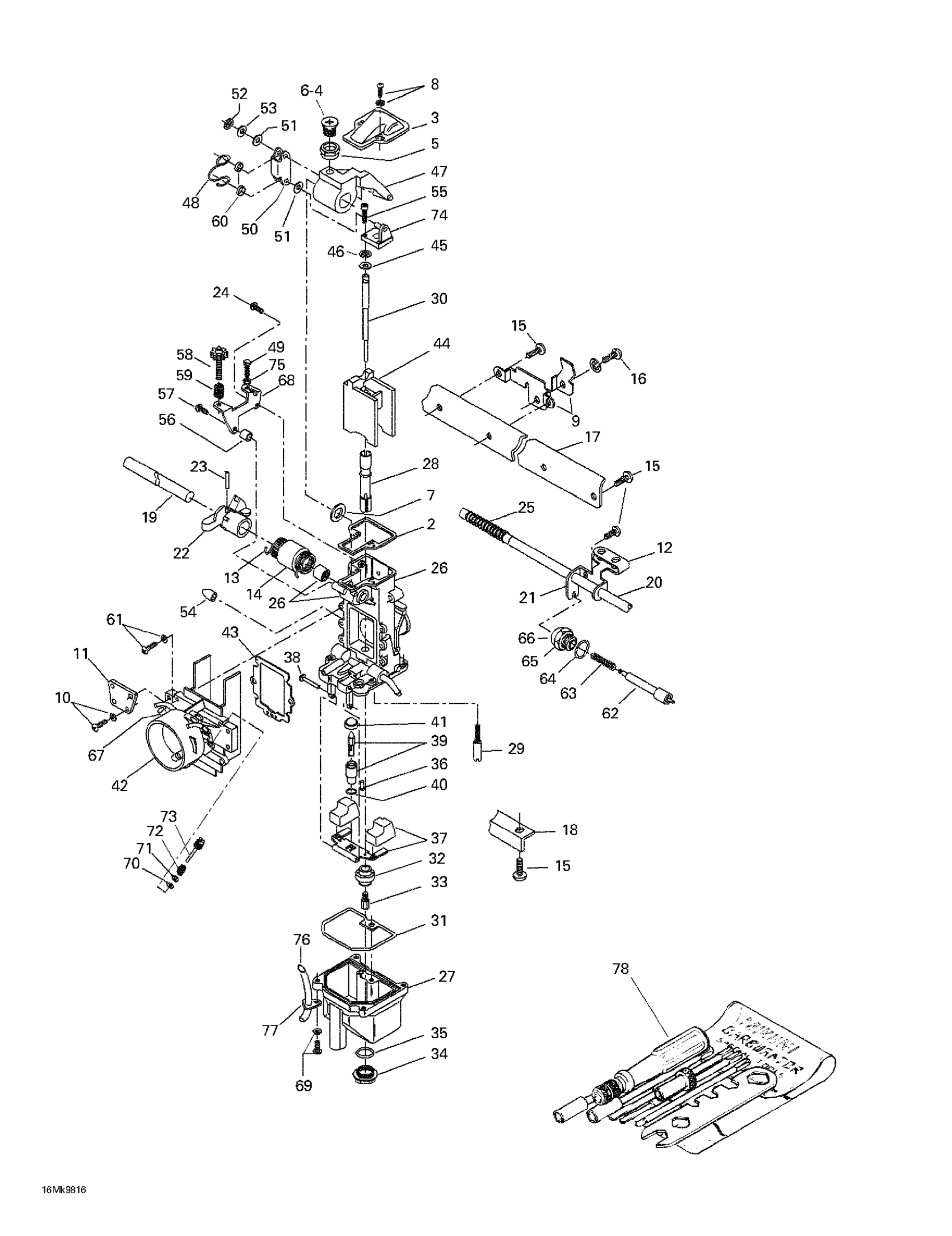

Ski-Doo Mach Z LT (SV Track), 1998 02- Carburetors Diagram

#

Description
Price

1

Carburetors Ass'y TM38-C195 | Includes 1 - 26.

403130600

Unavailable

2

Gasket

404143600

Unavailable

3

Cover

404142700

Unavailable

4

Screw (MAG)

404135900

Unavailable

5

Ring (PTO/Center)

404143500

Unavailable

6

Screw (MAG)

404138900

Unavailable

7

Packing (MAG)

404144400

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Bracket Ass'y

404155100

Unavailable

10

Screw

404136100

$6.38

11

Plate

404142400

Unavailable

12

Lever

404143900

Unavailable

13

Spring

404143200

Unavailable

14

Ring

404141700

Unavailable

15

Screw

404138800

$6.06

16

Screw

404140500

Unavailable

17

Plate

404142300

Unavailable

18

Plate

404142500

Unavailable

19

Throttle Shaft

404137100

Unavailable

20

Choke Shaft

404137200

Unavailable

21

Starter Lever

404140600

Unavailable

22

Lever Ass'y

404142100

Unavailable

23

Pin

404140100

Unavailable

24

Screw (MAG)

404135800

Unavailable

25

Spring

404158000

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

27

Float Body Ass'y

404142200

Unavailable

28

Needle Jet

404161803

Unavailable

29

Pilot Jet 50

404144800

Unavailable

30

Jet Needle 8ABY01- 40

404161804

Unavailable

31

O'Ring

404137000

Unavailable

32

Ring

404161813

Unavailable

33

Main Jet 330

404101400

$8.36

Main Jet MJ 340 (MAG)

404104900

$9.06

34

Drain Plug Screw

404107400

$22.99

35

O-Ring

404107300

$9.06

36

Screw

404141000

Unavailable

37

Float

404149800

Unavailable

38

Lever Pin

404103300

$6.27

39

NEEDLE SEAT 1.5 - Call your local BRP dealership

404149500

Unavailable

40

O'Ring | Formula III 800.

404139400

Unavailable

41

Filter

404141200

Unavailable

42

Funnel (MAG) | Grand Touring SE.

404156000

Unavailable

Funnel (CTR) | Grand Touring SE.

404156100

Unavailable

Funnel (PTO) | Grand Touring SE.

404156200

Unavailable

43

Gasket

404143700

Unavailable

44

Piston Valve 2.0

404152900

Unavailable

45

Packing

404137600

$6.38

46

Circlip

404113300

Unavailable

47

Throttle Lever (PTO/Center)

404143000

Unavailable

Throttle Lever (MAG)

404143100

Unavailable

48

Clip

404144100

Unavailable

49

Bolt (MAG)

404138000

Unavailable

50

Plate

404144000

Unavailable

51

Packing

404138100

Unavailable

52

E-Ring

404138300

$11.18

53

Washer

404139500

Unavailable

54

CAP - Call your local BRP dealership

404154900

Unavailable

55

BOLT - Call your local BRP dealership | Formula III 800.

404137400

Unavailable

56

Ring (MAG)

404141800

Unavailable

57

Screw

404138800

$6.06

58

Adjustment Screw

404137500

$19.49

59

Spring (MAG)

404138200

Unavailable

60

Ring

404144200

Unavailable

61

Screw

404145100

Unavailable

62

Plunger Ass'y | Formula III 800.

404140400

Unavailable

63

Spring

404141100

Unavailable

64

O-Ring

404140200

Unavailable

65

Guide Holder

404136900

$16.49

66

Cap

404140000

$11.18

67

Cap

270500095

$9.59

68

Bracket (MAG)

404142600

Unavailable

69

Screw

404138700

$4.14

70

O-RING - Call your local BRP dealership

404139900

Unavailable

71

Washer

404140900

Unavailable

72

SPRING - Call your local BRP dealership

404139800

Unavailable

73

Adjuster Screw

404154200

Unavailable

74

Plate Ass'y

404142000

Unavailable

75

Nut (MAG)

404139600

Unavailable

76

Air Vent Tube

404161802

Unavailable

77

Plate

404144900

Unavailable

78

TOOL KIT - Call your local BRP dealership

404112000

Unavailable

79

High Altitude Kit (Not Shown)

861760900

Unavailable
