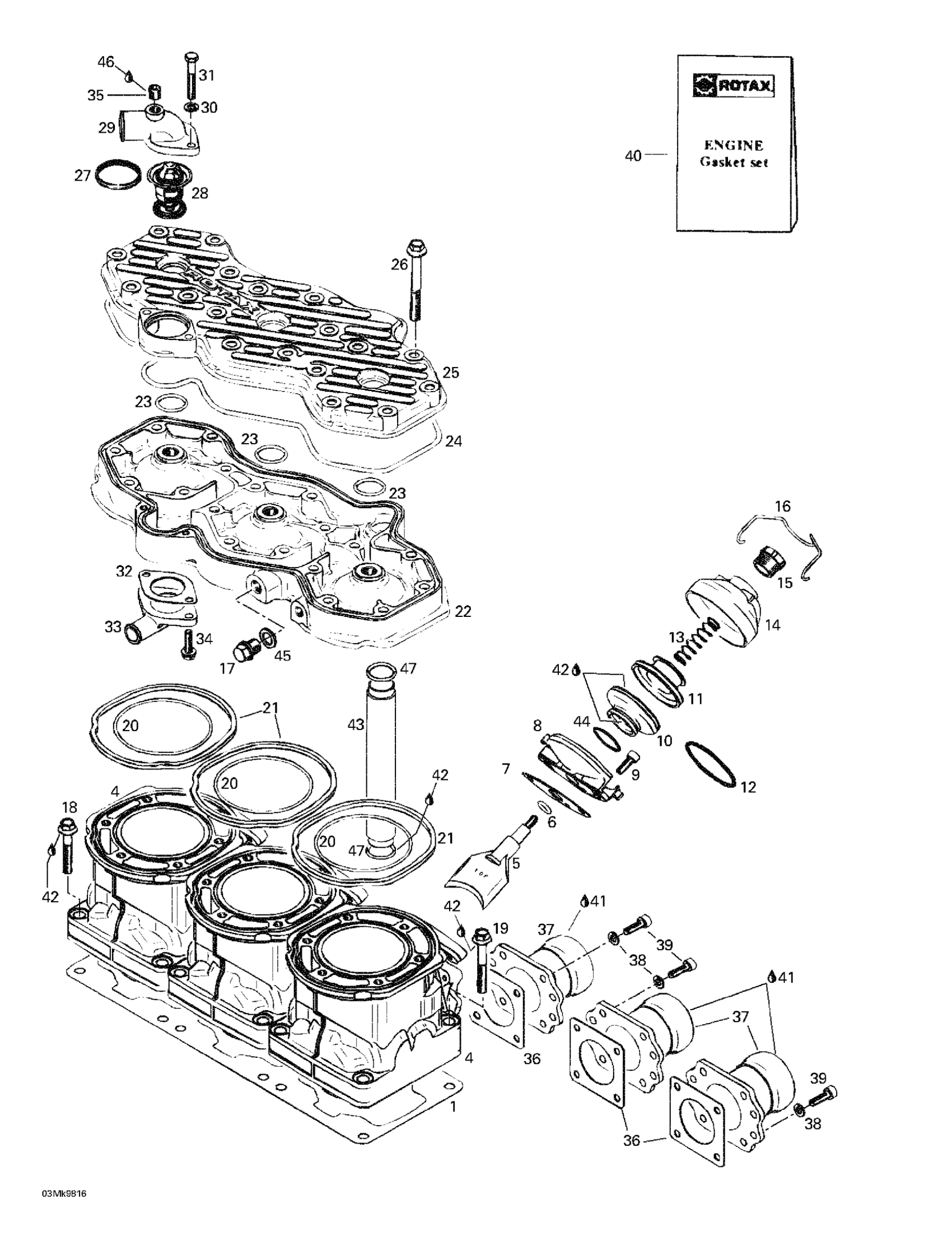

Ski-Doo Mach Z LT (SV Track), 1998 Cylinder, Exhaust Manifold Diagram

#

Description
Price

1

BASE GASKET SET - Call your local BRP dealership | Includes 1 - 3.

420931625

Unavailable

1

GASKET 0.6 MM - Call your local BRP dealership

420931622

Unavailable

2

GASKET 0.4 MM - Call your local BRP dealership

420931621

Unavailable

3

GASKET 0.3 MM - Call your local BRP dealership

420931620

Unavailable

4

Cylinder (Nicasil Coated)

420923480

Unavailable

5

Exhaust Valve

420854303

Unavailable

6

O-Ring

420430110

$3.61

7

Gasket

420250239

$6.62

8

Valve Housing | Grand Touring 600.

420854265

Unavailable

9

Socket Head Screw M6 x 16

420241237

$1.85

10

Exhaust Bellows

420260723

$35.07

11

Exhaust Valve This part replaces 290253257.

420854449

$29.87

12

Hose Spring This part replaces 420239048.

420939281

$5.99

13

Spring This part replaces 420239944.

420239954

$7.31

14

Valve Cover

420911552

$37.66

15

Adjuster Screw

420241221

$12.52

16

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

17

Plug screw

420841924

$13.58

18

Hex. Collar Screw M8 x 45

420640432

$1.94

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-Ring | Grand Touring 500.

420831792

$15.35

21

SEAL RING - Call your local BRP dealership

420931320

Unavailable

22

Cylinder Head (Charcoal) | Formula III 800.

420913637

Unavailable

23

O-Ring

420430782

$4.41

24

O-RING - Call your local BRP dealership

420950310

Unavailable

25

Cylinder Head Cover (Charcoal) | Formula III 800.

420923492

Unavailable

26

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$6.09

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

Thermostat This part replaces 414834100.

420922519

$59.20

29

Exhaust Socket

420922485

Unavailable

30

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

31

Hex. Screw M6 X 40

207064044

$1.48

32

Gasket

420850338

$10.28

33

Bent Outlet Socket | Formula III 600. Formula III 600 R. Formula III 600 LT.

420922600

Unavailable

34

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.65

35

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

36

Gasket

420850552

$7.92

37

Exhaust Socket | Formula III 600.

420978816

Unavailable

38

Lock Washer M6, Black

234161471

$0.52

39

Socket Head Screw M6 X 25

205062544

$0.88

40

Gasket Set | Formula III 800.

420886249

Unavailable

41

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Water Tube

420922450

Unavailable

44

Hose Spring This part replaces 420838253.

420838255

$6.11

45

Aluminum Sealing Ring

420250016

$4.41

46

Loctite 243, 10 ml

293800060

$20.77

47

O-Ring

420430373

$2.63
