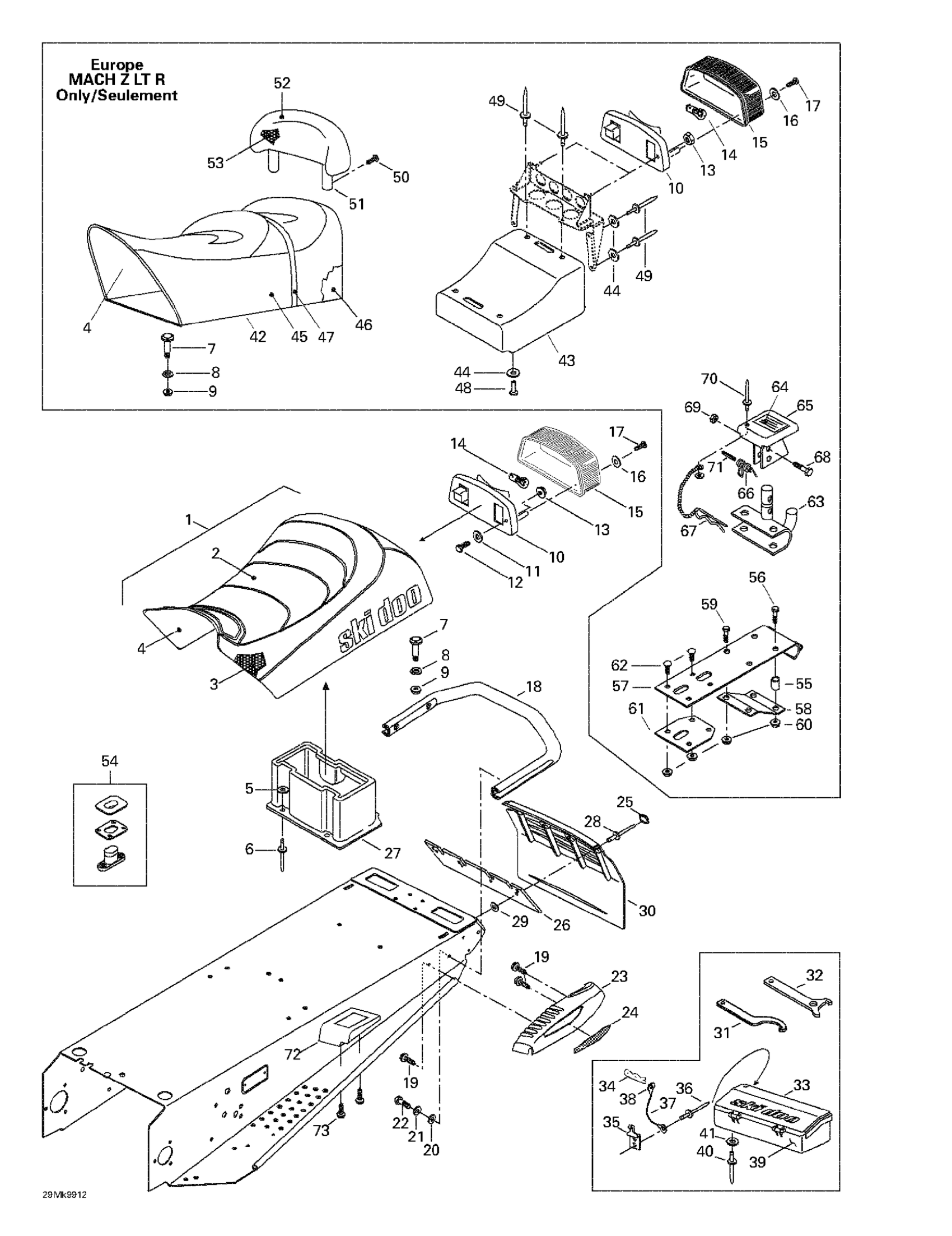

Ski-Doo Mach Z LT R, 1999 Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover | Mach Z. Mach Z R. Mach Z LT. Mach Z LT R.

510003555

Unavailable

Seat Cover | Mach Z M.H. R.

510003645

Unavailable

3

Foam Seat

415046302

Unavailable

4

Sub-Seat

572088200

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

Rear Bumper

517243800

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

RH Moulding

572092200

Unavailable

RH Moulding | RENEGADE

572097300

Unavailable

LH Moulding

572092300

Unavailable

LH Moulding | RENEGADE

572097400

Unavailable

24

RH Reflector, Red

516000237

Unavailable

LH Reflector, Red

516000238

Unavailable

RH Reflector, Yellow, Europe | SE GT Europe

516000241

Unavailable

LH Reflector, Yellow, Europe | SE GT Europe

516000242

Unavailable

25

Cap

415073300

Unavailable

26

REINFORCEMENT - Call your local BRP dealership

572108200

Unavailable

27

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

28

Pop Rivet 3/16"

293150100

$1.09

29

Flat Washer

517225900

$0.18

30

SNOW GUARD - Call your local BRP dealership

572092100

Unavailable

Snow Guard

572103804

Unavailable

Snow Guard

520000000

Unavailable

31

ADJUSTER WRENCH (SUSPENSION) - Call your local BRP dealership

529034100

Unavailable

32

Adjustment Wrench

529000035

$2.09

33

Tool Box Ass'y | Includes 35 - 40.

520000107

Unavailable

34

HAIR PIN - Call your local BRP dealership

414112400

Unavailable

35

Latch

517168500

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Wire

414407400

Unavailable

38

Terminal Ring

561502800

Unavailable

39

Tool Kit (Not Shown)

529032000

Unavailable

Tool Kit (Not Shown) | Includes 44 - 55.

529035592

Unavailable

Tool Kit (Not Shown) | Includes 44 - 55.

529035592

Unavailable

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

41

Washer

517124300

$0.19

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Rear Trunk | GT 700.

572051200

Unavailable

44

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

45

Seat Cover (Europe) | Mach Z LT R.

510003625

Unavailable

46

Foam Seat (Europe) | Mach Z LT R.

415098402

Unavailable

47

Seat Belt

415095600

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

PAN HEAD FORMING SCREW M6 X 18 - Call your local BRP dealership

732600009

Unavailable

51

Backrest (Europe) | Includes 51 - 53. Mach Z LT R.

414897500

Unavailable

52

Cover (Europe) | Legend 800.

414897300

Unavailable

53

Foam (Europe) | Legend 800.

414916100

Unavailable

54

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

55

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

56

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

57

Support

511000019

Unavailable

58

REINFORCEMENT - Call your local BRP dealership | Europe

511000022

Unavailable

59

Hex. Screw M6 X 18

207161844

$0.76

60

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

61

Inner Plate

517256100

Unavailable

62

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

63

Hitch | Europe

517199300

Unavailable

64

Instruction Label (Hitch)

414998500

Unavailable

65

Hitch Protector | Europe

517152700

Unavailable

66

SPRING - Call your local BRP dealership | Europe

517152800

Unavailable

67

Hair Pin

114045200

$11.11

68

Hex. Screw M6 X 30

207063044

$1.26

69

Elastic Stop Nut M6

232561414

$0.55

70

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

71

SPRING PIN M3 X 24 - Call your local BRP dealership | Europe

732804000

Unavailable

72

RH Footrest | Sport GT / SE GT

572088700

Unavailable

LH Footrest | Sport GT / SE GT

572088800

Unavailable

73

Hex. Plastic Screw M4.8 X 16

243141630

$2.11
