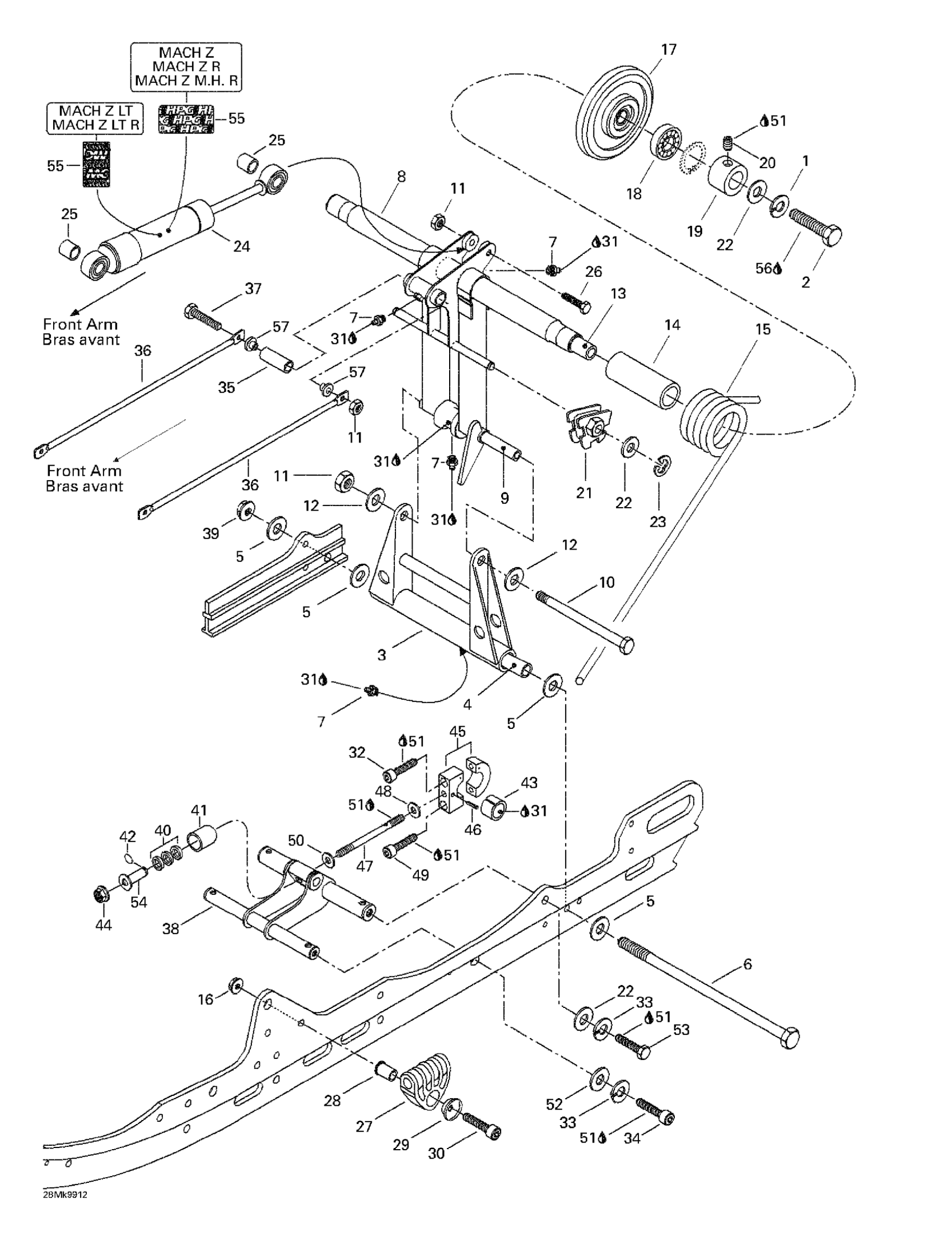

Ski-Doo Mach Z LT R, 1999 08- Rear Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Screw M10 X 35

207103544

$1.58

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$30.49

7

Grease Fitting

408200700

$3.49

8

Rear Arm

503188961

Unavailable

Rear Arm

503188974

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.65

10

Bolt M8, Short

732601197

$15.36

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

Flat Washer 8 mm

234081410

$0.83

13

Rear Cross Shaft

503168700

Unavailable

14

Bushing

572080700

$17.39

15

RH Spring

503189241

Unavailable

RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010500

Unavailable

RH SPRING - Call your local BRP dealership | Grand Touring 700.

415060700

Unavailable

LH Spring

503189242

Unavailable

LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010600

Unavailable

LH SPRING - Call your local BRP dealership | Grand Touring 700.

415060800

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.47

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

$12.11

19

Retaining Ring

503168800

$14.99

20

Socket Set Screw M6 X 8

206260844

$1.48

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

$1.26

23

e Circlip

371907100

Unavailable

24

Rear Shock

503189228

Unavailable

Shock | Mach Z LT. Mach Z LT R.

503189206

Unavailable

Rear Shock Kit (Incl. it. 3, 45, 47) (Eu | Grand Touring 700.

860304600

Unavailable

25

Bushing

414936000

$13.99

26

Hex. Screw M8 X 50

207085044

$1.48

27

Spring Support

503189657

$11.99

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.90

31

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

32

Socket Head Screw M8 X 30

205083044

$1.15

33

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

34

Socket Screw M10 X 35

205003544

$1.69

35

Tie Rod Shaft

503158600

Unavailable

Tie Rod Shaft

503171600

Unavailable

36

Tie Rod

503187100

Unavailable

Tie Rod

503184900

Unavailable

37

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Hex. Screw M8 X 90

207089044

$3.48

38

Bracket

503188969

Unavailable

39

Hex. Flange Elastic Nut M8

233281414

$1.47

40

RUBBER STOPPER - Call your local BRP dealership

570049600

Unavailable

41

Cup

503103600

Unavailable

42

Circlip

371910700

Unavailable

43

CUSHION - Call your local BRP dealership

415027800

Unavailable

44

Hex. Flange Elastic Nut M10

233201414

$1.58

45

Pivot Block Ass'y | Includes 45 - 49.

503189044

Unavailable

46

Rolled Pin M3 x 18

732804011

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Socket Head Screw M8 X 30

205083044

$1.15

50

WASHER - Call your local BRP dealership

503183400

Unavailable

51

Loctite 271, 10 ml

293800005

$26.99

52

Hardened Washer 10 mm

503176700

Unavailable

53

Hex. Screw M10 X 30

207103044

$1.48

54

Bushing

503172900

Unavailable

55

HPG Decal (Europe)

516000182

Unavailable

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

56

Loctite 243, 10 ml

293800060

$21.49

57

Plastic Cushion

415052300

Unavailable
