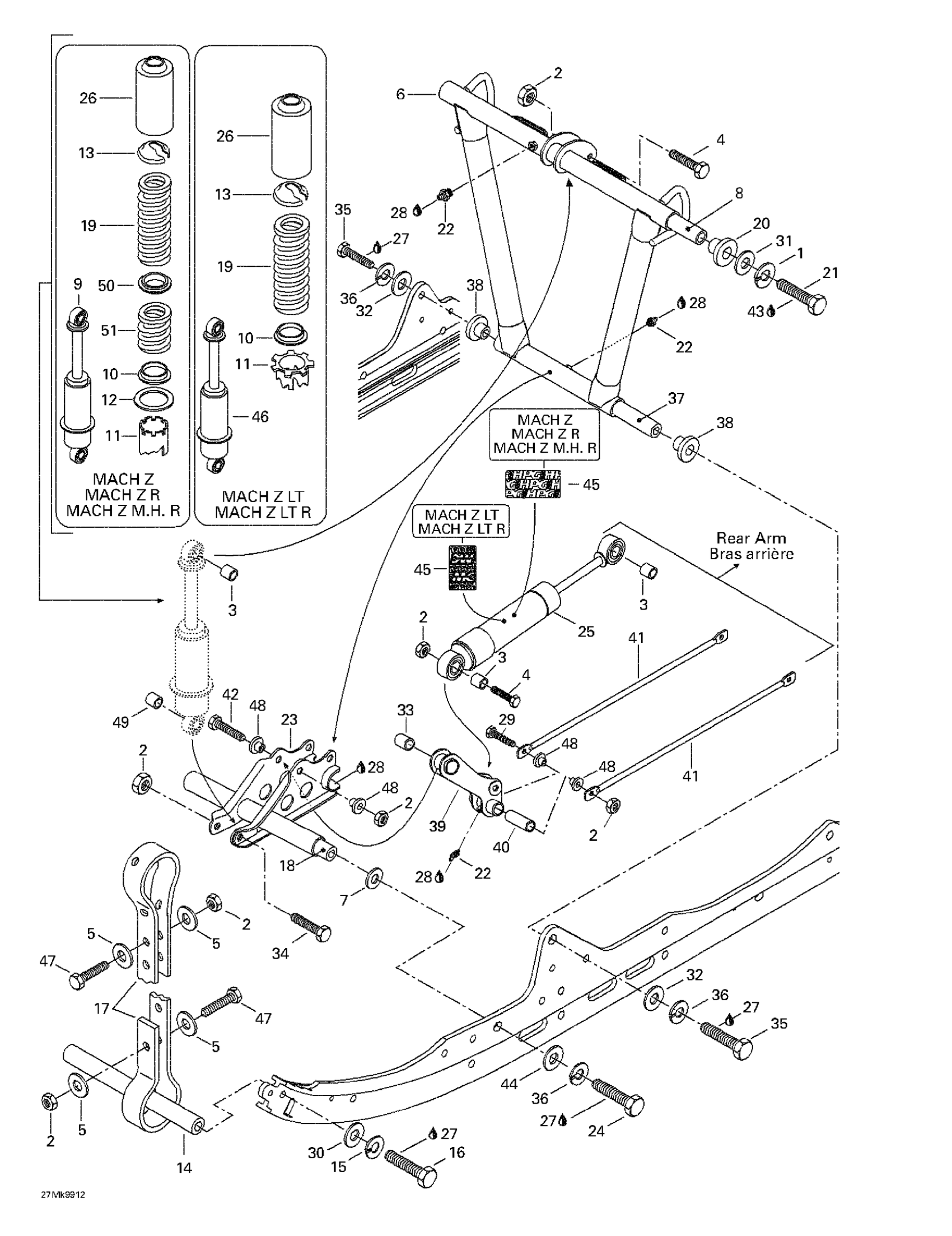

Ski-Doo Mach Z LT R, 1999 08- Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

2

Hex. Elastic Stop Nut M8

232581414

$0.56

3

Bushing

414936000

$13.99

4

Hex. Screw M8 X 40

207084044

$1.15

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503171100

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock

415033500

Unavailable

10

Spring Guide

415052800

Unavailable

Spring Guide

572092600

Unavailable

11

Cam | Formula III 600.

415052700

Unavailable

Cam

503169000

Unavailable

12

Thrust Washer

415052900

Unavailable

13

Spring Stopper

706200881

$12.99

14

Axle

503151600

$18.49

15

Lock Washer 8 mm

234181401

$0.92

16

Hex. Screw M8 X 30

207183044

$1.15

17

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring

415090600

Unavailable

Spring

415057600

Unavailable

20

Bushing

503189324

$14.15

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

$3.49

23

Welded Shock Support

503188976

Unavailable

24

Hex. Screw M12 x 40

222024065

Unavailable

25

Rear Shock

503189228

Unavailable

Shock | Mach Z LT. Mach Z LT R.

503189206

Unavailable

Rear Shock Kit (Incl. it. 3, 45, 47) (Eu | Grand Touring 700.

860304600

Unavailable

26

Protector

503193663

$37.99

27

Loctite 271, 10 ml

293800005

$26.99

28

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

Hex. Screw M8 x 90 | Mach Z LT. Mach Z LT R.

209089044

Unavailable

30

Flat Washer 8 mm

234081410

$0.83

31

Flat Washer 10 mm

234001410

$1.26

32

Flat Washer 12 mm

234021410

$0.72

33

Cushion

414917900

Unavailable

Pivot Axle

503171700

Unavailable

34

Hex. Screw M8 X 55

207085544

$1.68

35

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion

503188940

Unavailable

39

Lever

503158500

Unavailable

Lever

503171400

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

Tie Rod Shaft

503171600

Unavailable

41

Tie Rod

503187100

Unavailable

Tie Rod

503184900

Unavailable

42

Hex. Screw M8 X 50

207085044

$1.48

43

Loctite 243, 10 ml

293800060

$21.49

44

Flat Washer 12 mm

234021410

$0.72

45

HPG Decal (Europe)

516000182

Unavailable

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

46

Center Shock

503189196

Unavailable

Shock | Includes 9 - 11.

415102300

Unavailable

47

Hex. Screw M8 X 25

207182544

$0.90

48

Plastic Cushion

415052300

Unavailable

49

Cushion

414917900

Unavailable

50

Spring Spacer

503182200

Unavailable

51

Spring

415090500

Unavailable
