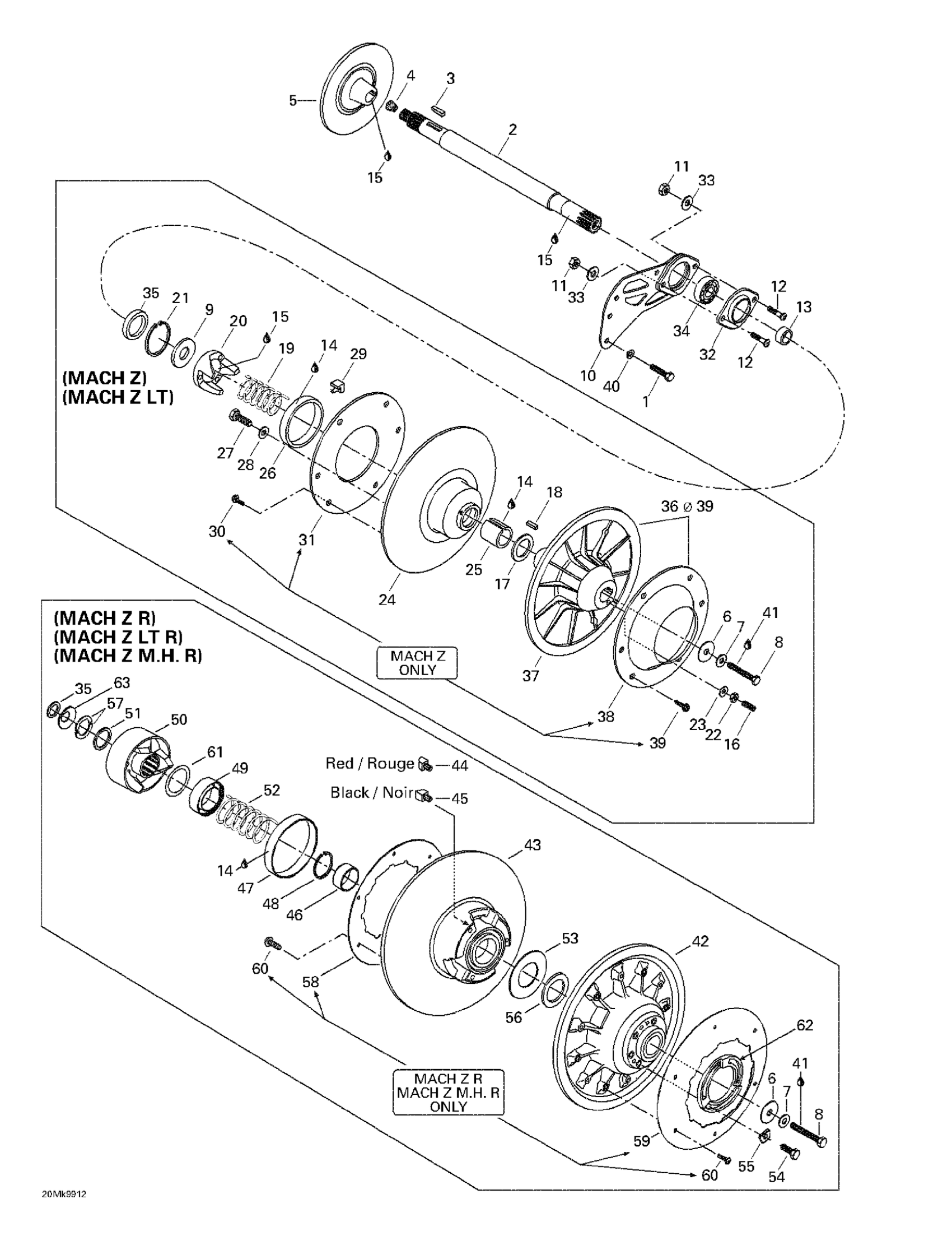

Ski-Doo Mach Z LT R, 1999 05- Driven Pulley Diagram

#

Description
Price

1

Hex. Screw M6 X 18

207161844

$0.76

2

COUNTER SHAFT - Call your local BRP dealership

501026300

Unavailable

3

KEY - Call your local BRP dealership

507021300

Unavailable

4

CORK - Call your local BRP dealership

414784800

Unavailable

5

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

6

Strength Washer

517302322

$12.63

7

Washer

503183100

$3.17

8

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

9

Washer

504141800

Unavailable

10

Spacer (Casting)

080039300

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

$0.56

12

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

13

Spacer

504149100

$12.99

14

Loctite 609, 10 ml

413703100

$26.99

15

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

16

Socket Set Screw M6 X 30

206263044

Unavailable

17

Thrust Washer

504141900

Unavailable

18

Key

414820800

Unavailable

19

RELEASE SPRING, BEIGE - Call your local BRP dealership | Beige

414558900

Unavailable

20

Cam | Mach Z (Sport).

417126387

Unavailable

21

CIRCLIP - Call your local BRP dealership

371903100

Unavailable

22

Hex. Nut M6

232061414

$0.53

23

WASHER - Call your local BRP dealership

420245370

Unavailable

24

Sliding Flange Ass'y | Includes 24 - 31.

504143600

Unavailable

24

Sliding Flange Ass'y | Includes 24 - 31. Formula III 800.

504143200

Unavailable

25

BUSHING - Call your local BRP dealership

415011200

Unavailable

26

Garlock Bushing Kit | Includes 14 - 16. Mach Z (Sport).

860423000

Unavailable

27

SCREW M5 X 12 - Call your local BRP dealership | 800 H.O. with DPM

205451286

Unavailable

28

Flat Washer

399910000

Unavailable

29

CAM SLIDER SHOE - Call your local BRP dealership

414918000

Unavailable

30

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

31

Ring

504142100

Unavailable

32

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

33

Flat Washer 8 mm

234081410

$0.83

34

BALL BEARING - Call your local BRP dealership

405408200

Unavailable

35

SPACER - Call your local BRP dealership

417126302

Unavailable

Spacer

417300265

$2.29

36

Fixed Flange Ass'y | Includes 36 - 39.

417010400

Unavailable

37

Fixed Flange

417010200

Unavailable

38

CUP - Call your local BRP dealership

504142000

Unavailable

39

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

40

Lock Washer M6, Black

234161471

$0.53

41

Loctite 243, 10 ml

293800060

$21.49

42

Fixed Flange Ass'y

417126317

Unavailable

43

Sliding Flange Ass’Y | INCLUDES ITEMS 43 TO 48

417126318

Unavailable

44

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

$4.65

45

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.38

46

Bushing

414978200

Unavailable

47

BUSHING - Call your local BRP dealership

417126902

Unavailable

48

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

49

GUARD - Call your local BRP dealership

417126381

Unavailable

50

Cam Ass'y

417126385

Unavailable

51

Spacer

417126375

Unavailable

52

Release Spring, Purple | North America

414978300

$33.99

53

STOPPER WASHER - Call your local BRP dealership

504099600

Unavailable

54

Hex. Screw M6 X 25

207162544

$1.15

HEX. SCREW M6 X 22 - Call your local BRP dealership

207162244

Unavailable

55

Adjustment Shim

415005900

Unavailable

56

SHIM - Call your local BRP dealership

504112300

Unavailable

57

HALF KEY - Call your local BRP dealership

371911000

Unavailable

58

Aerodynamic Cover

504149700

Unavailable

59

AERODYNAMIC COVER - Call your local BRP dealership

504151831

Unavailable

60

Screw M5 x 11

732600032

Unavailable

61

SWIVEL ABUTMENT - Call your local BRP dealership

417126322

Unavailable

62

Adjustment Ring

415005800

Unavailable

63

Protector

417300055

Unavailable
