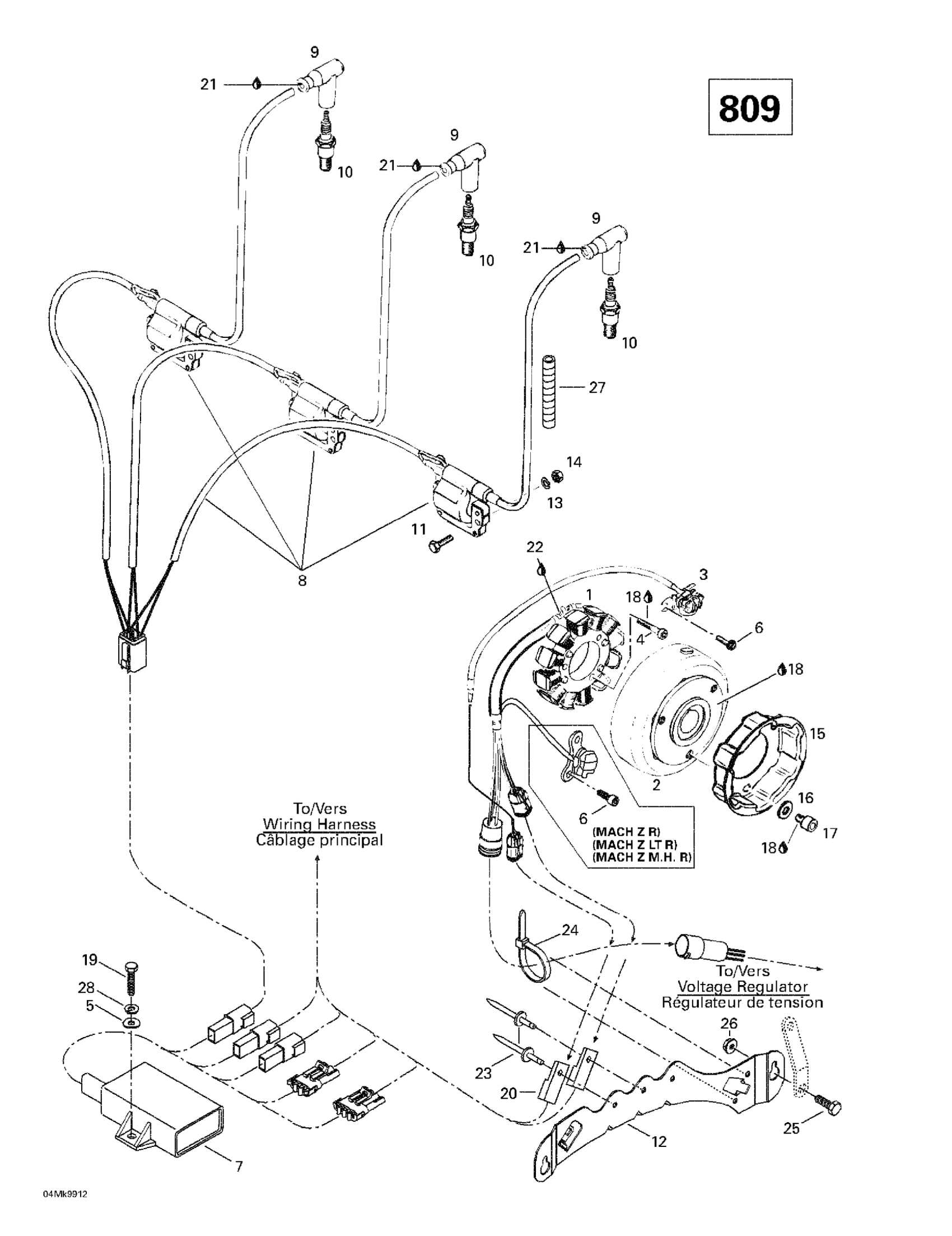

Ski-Doo Mach Z LT R, 1999 Magneto 12V 290W (809) Diagram

#

Description
Price

1

Magneto Ass'y 12V 290W | Includes 1 - 3.

410923000

Unavailable

Magneto Ass'y 12V 290W | Mach 1-R.

410923100

Unavailable

1

Stator Ass'y | Mach 1 R

410922913

Unavailable

1

Stator Ass'y

410922911

Unavailable

2

Magneto Flywheel | Mach 1 R

410922920

Unavailable

2

Magneto Flywheel

410922917

Unavailable

3

Pick Up Ass'y

410922918

Unavailable

4

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

5

Flat Washer 6 mm

234061410

$1.36

6

Allen Screw M6 X 14

420840391

$1.69

7

Calibration Module | Formula III 800.

512058995

Unavailable

Calibration Module | Mach Z R. Mach Z LT R. Mach Z M.H. R.

512058993

Unavailable

8

Ignition Coil | Includes 15 - 19.

420966705

Unavailable

9

SPARK PLUG CAP - Call your local BRP dealership

278000237

$16.99

10

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

$4.23

11

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

12

Housing Support

515175148

Unavailable

13

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

14

Hex. Nut M6

232061414

$0.53

15

Starting Pulley

420852418

Unavailable

16

Flat Washer

420827405

$1.69

17

Socket Head Screw M8 X 12

420841520

$1.69

18

Loctite 243, 10 ml

293800060

$21.49

19

Hex. Screw M6 X 16

207161644

$0.74

20

Clip

270000141

$11.49

21

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Tie-Rap 180 mm

414115200

$0.11

25

Hex. Screw M5 X 14

207151444

$0.87

26

Hex. Flange Elastic Nut M5

233251414

$1.04

27

Tubing 10 MM 1000MM Long

219704407

$2.79

28

Lock Washer M6, Black

234161471

$0.53

29

Hood harness (not shown)

515175136

Unavailable

29

Hood Harness (Not Shown)

515175150

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable
