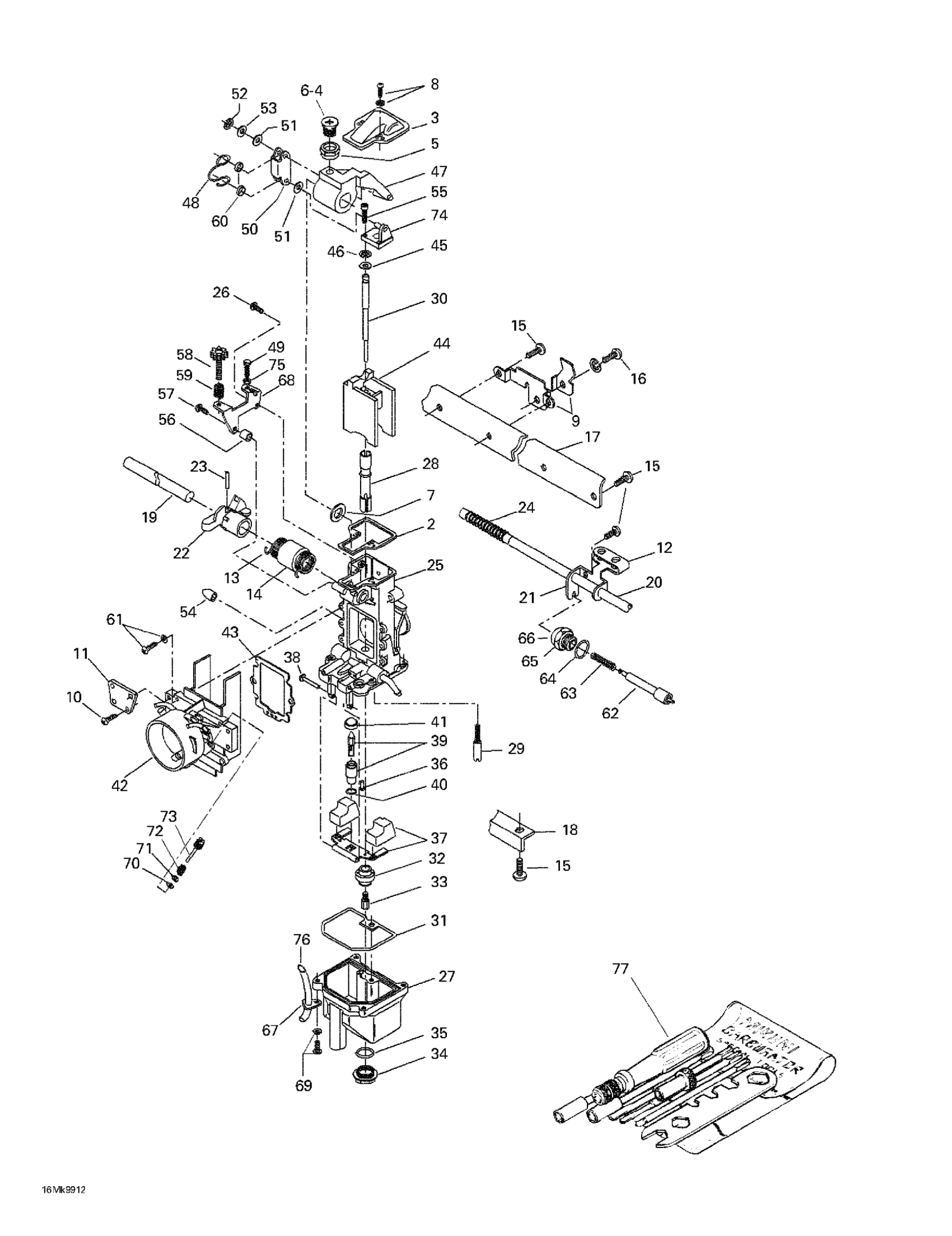

Ski-Doo Mach Z LT R, 1999 02- Carburetors Diagram
#
1
Carburetor Kit TM38-C224 | Includes 1 - 76.
403138555
Unavailable
2
Gasket
404143600
Unavailable
3
Cover
404142700
Unavailable
4
Screw (PTO/Center)
404139000
Unavailable
5
Ring (PTO/Center)
404143500
Unavailable
6
Screw (MAG)
404138900
Unavailable
7
Packing (MAG)
404144400
Unavailable
8
Screw
404139100
Unavailable
9
Bracket Ass'y
404155100
Unavailable
11
Plate
404142400
Unavailable
12
Lever
404143900
Unavailable
13
Spring
404143200
Unavailable
14
Ring
404141700
Unavailable
16
Screw
404140500
Unavailable
17
Plate
404142300
Unavailable
18
Plate
404142500
Unavailable
19
Throttle Shaft
404137100
Unavailable
20
Choke Shaft
404137200
Unavailable
21
Starter Lever
404140600
Unavailable
22
Lever Ass'y
404142100
Unavailable
23
Pin
404140100
Unavailable
24
Spring
404158000
Unavailable
25
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
26
Screw (MAG)
404135900
Unavailable
27
Float Body Ass'y
404161841
Unavailable
28
Needle Jet
404161830
Unavailable
29
Pilot Jet 50
404144800
Unavailable
30
Needle J8-8ADY01-41
404161829
Unavailable
31
O'Ring
404137000
Unavailable
32
Ring
404142900
Unavailable
36
Screw
404141000
Unavailable
37
Float
404149800
Unavailable
39
NEEDLE SEAT 1.5 - Call your local BRP dealership
404149500
Unavailable
40
O'Ring | Formula III 800.
404139400
Unavailable
41
Filter
404141200
Unavailable
42
Funnel (MAG) | Formula III 800.
404161831
Unavailable
Funnel (CTR) | Formula III 800.
404161832
Unavailable
Funnel (PTO) | Formula III 800.
404161833
Unavailable
43
Gasket
404143700
Unavailable
44
Piston Valve 2.0
404152900
Unavailable
46
Circlip
404113300
Unavailable
47
Throttle Lever (PTO/Center)
404143000
Unavailable
Throttle Lever (MAG)
404143100
Unavailable
48
Clip
404144100
Unavailable
49
Bolt (MAG)
404138000
Unavailable
50
Plate
404144000
Unavailable
51
Packing
404138100
Unavailable
53
Washer
404139500
Unavailable
54
CAP - Call your local BRP dealership
404154900
Unavailable
55
BOLT - Call your local BRP dealership | Formula III 800.
404137400
Unavailable
56
Ring (MAG)
404141800
Unavailable
59
Spring (MAG)
404138200
Unavailable
60
Ring
404144200
Unavailable
61
Screw
404145100
Unavailable
62
Plunger Ass'y
404161842
Unavailable
63
Spring
404141100
Unavailable
64
O-Ring
404140200
Unavailable
67
Plate
404144900
Unavailable
68
Bracket (MAG)
404142600
Unavailable
70
O-RING - Call your local BRP dealership
404139900
Unavailable
71
Washer
404140900
Unavailable
72
SPRING - Call your local BRP dealership
404139800
Unavailable
73
Adjuster Screw
404154200
Unavailable
74
Plate Ass'y
404142000
Unavailable
75
Nut (MAG)
404139600
Unavailable
76
Hose
404161828
Unavailable
77
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
78
High Altitude Kit (Not Shown)
861766600
Unavailable
