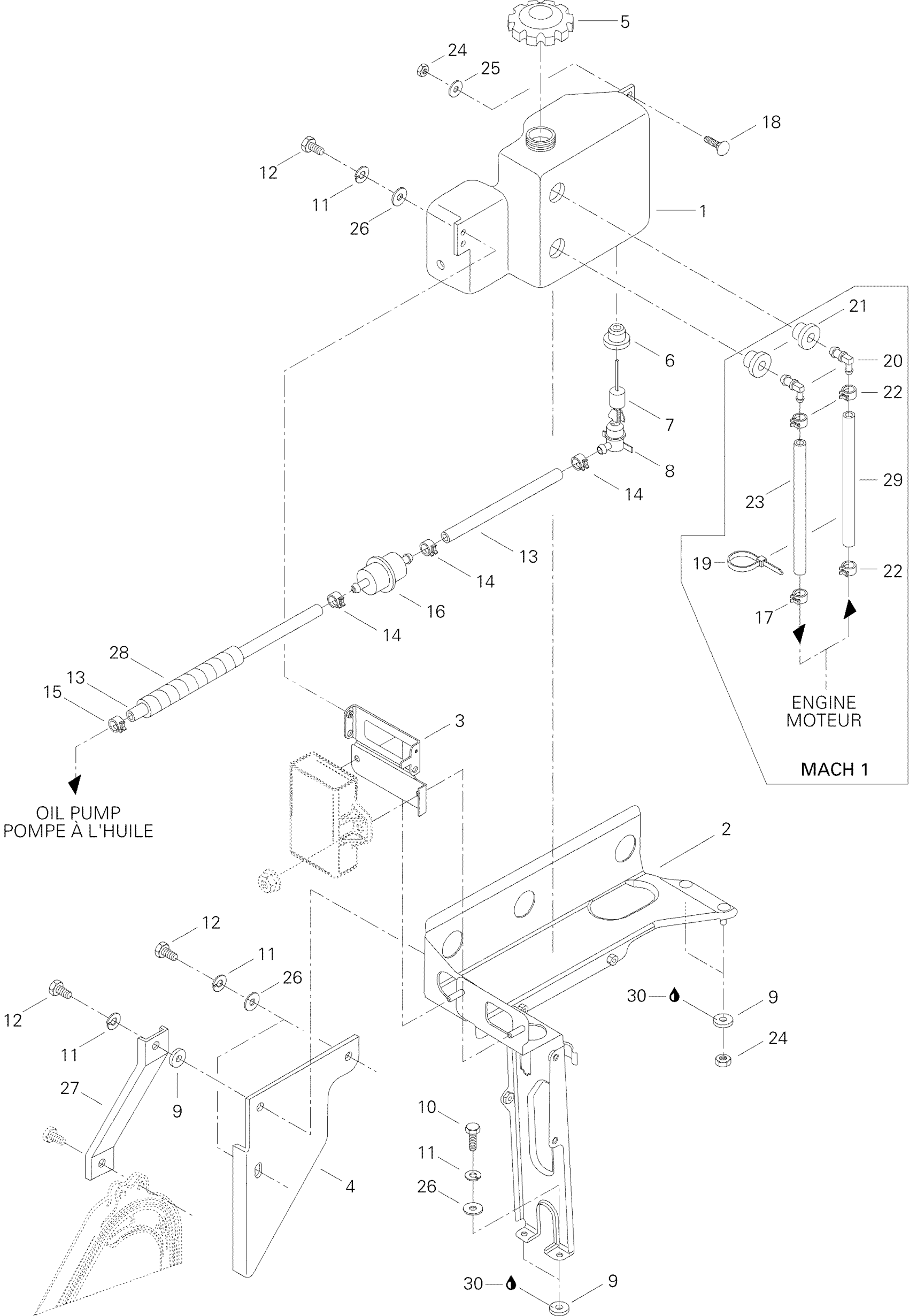

Ski-Doo Mach Z LT (2), 1996 02- Oil Tank And Support Mach Z, Z LT Diagram

#

Description
Price

1

Injection Oil Tank

572043100

Unavailable

2

Support

517285100

Unavailable

3

Upper Support

517260300

Unavailable

4

Deflector

517275900

Unavailable

5

CAP - Call your local BRP dealership

519000044

Unavailable

6

Insulating Ring

570023000

$5.61

7

Float

414681900

Unavailable

8

LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A

414681800

Unavailable

9

Rubber Spacer

414454400

Unavailable

10

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

11

Lock Washer M6, Black

234161471

$0.53

12

Hex. Screw M6 X 16

207161644

$0.74

13

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$32.99

14

Spring Clamp

414415200

$0.88

15

Spring Clamp

414420700

$0.72

16

Filter

414536500

$4.02

17

Not Available As Spare Parts

XXX

Unavailable

18

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

21

Not Available As Spare Parts

XXX

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Not Available As Spare Parts

XXX

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

25

Flat Washer

224061201

$1.37

26

Flat Washer 6 mm

234061410

$1.36

27

Welded Side Support

517254101

Unavailable

28

Was 409901800 Tubing (13 mm)

219704400

$14.49

29

Not Available As Spare Parts

XXX

Unavailable

30

LOCTITE 495, 3GR - Call your local BRP dealership

413703200

Unavailable
