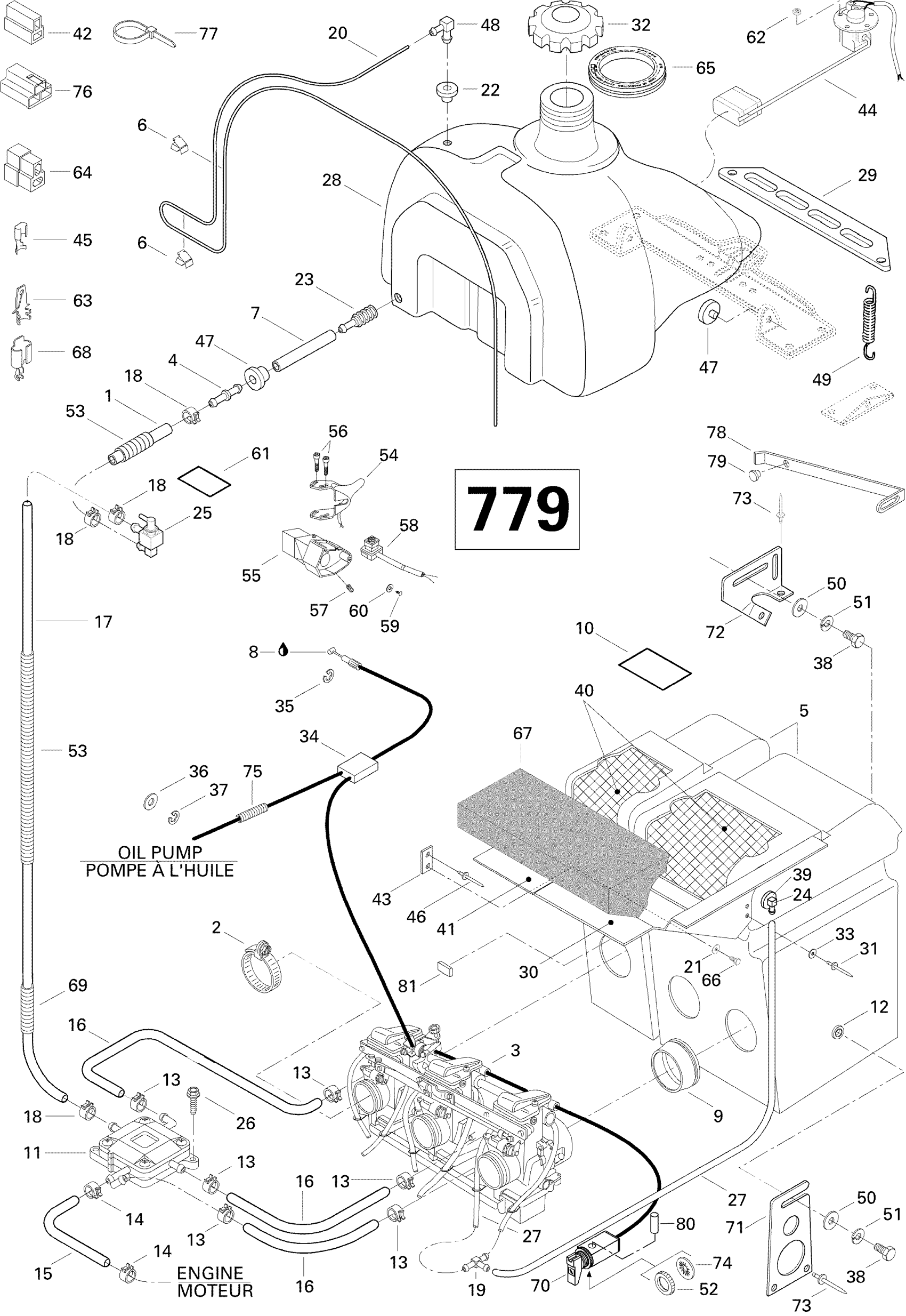

Ski-Doo Mach Z LT (2), 1996 02- Fuel System 779 Diagram

#

Description
Price

1

Hose | Formula Z. Formula 583.

414933900

Unavailable

2

Clamp

420951510

Unavailable

3

Carburetors Ass’y TM38-C152 | Includes 1 to 26

403125600

Unavailable

4

Male Connector

414872700

$1.90

5

Air Silencer Ass’y 2 Holes

580647601

Unavailable

5

Air Silencer Ass’y 1 Hole

580647701

Unavailable

6

Clip

414227300

$1.67

7

Hose

415005700

$11.58

8

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

9

Intake Adaptor | Mach Z. Mach Z-LT.

570046400

Unavailable

10

Warning Decal

414161500

Unavailable

11

Fuel Pump (70 Liters)

403901100

Unavailable

12

JACK NUT M6 - Call your local BRP dealership

732610057

Unavailable

13

Spring Clamp

414554800

$0.88

14

Spring Clamp

414415200

$0.88

15

Hose

219704549

$50.99

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

17

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

18

Spring Clamp

414655700

$0.72

19

T-Fitting

414222400

$1.69

20

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

21

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

22

Grommet

709200285

$9.69

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Elbow Fitting | Mach Z. Mach Z-LT.

572075200

Unavailable

25

Shut Off Valve | MX Z 670 HO.

414872200

Unavailable

26

Hexagonal Head Screw

210262050

$2.11

27

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

28

Fuel Tank

572057100

Unavailable

29

Fuel Tank Bracket

517249200

Unavailable

30

Deflector (2 Holes Silencer)

517284900

Unavailable

31

Rivet

390406600

Unavailable

32

Fuel Tank Cap 91 Octane

513033722

$22.49

33

Flat Washer

517225900

$0.18

34

Throttle Cable and Housing | Mach Z. Mach Z-LT.

414966301

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

Hex. Screw M6 X 20 | XT Models

207162044

$0.76

39

Grommet | Mach Z. Mach Z-LT.

570047400

Unavailable

40

Air Filter Foam (1 Holes Silencer)

572029103

Unavailable

40

Air Filter Foam (2 Holes Silencer)

572029007

Unavailable

41

Deflector (1 Holes Silencer)

517285000

Unavailable

42

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

43

Plate

517278500

Unavailable

44

Fuel Level Sensor

410108400

Unavailable

45

Female Terminal

561503100

$2.41

46

Pop Rivet 3/16"

390402400

$0.35

47

Grommet | Europe

707800347

$10.49

48

Male Connector

414814100

$2.22

49

Spring

415107100

$6.35

50

Flat Washer

224061121

$0.53

51

Lock Washer M6, Black

234161471

$0.53

52

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

53

Tubing 16 Mm 1000Mm Long

219704408

$7.49

54

Heat Throttle Handle (26 mm) | Formula III 800.

572073300

Unavailable

54

Heat Throttle Handle (26 mm) | Formula III 800.

572073100

Unavailable

55

Throttle Handle Housing | Mach 1. Mach Z-LT. .

572073400

Unavailable

56

Flange Screw

732601143

$4.12

57

Socket Set Screw M8 X 10

414440800

$4.12

58

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

59

Screw

414473200

Unavailable

60

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

61

Security Label | MX Z 670 HO.

414931500

Unavailable

62

Elastic Stop Nut M5

232551414

$0.87

63

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

64

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

65

Rubber Ring

570276900

Unavailable

66

Screw M5 x 14

222851465

Unavailable

67

Air Filter

415027600

Unavailable

68

Female Terminal PACKARD

561503200

Unavailable

69

Tubing

414942900

Unavailable

70

Choke Cable Ass'y | Includes 13 - 14.

561205500

Unavailable

71

External Bracket

517252000

Unavailable

72

Internal Bracket

518313900

Unavailable

73

Pop Rivet 3/16"

390402200

$0.35

74

Lock Washer, Interior Teeth

394103300

Unavailable

75

Was 409901800 Tubing (13 mm)

219704400

$14.49

76

Female Terminal Housing (3 circuits)

409008500

Unavailable

77

Tie-Rap 180 mm

414115200

$0.11

78

Support | Mach Z. Mach Z-LT.

517279700

Unavailable

79

Rubber Bumper

293830005

$8.09

80

Spring Pin

372118400

Unavailable

81

Rubber Strip

293830012

Unavailable
