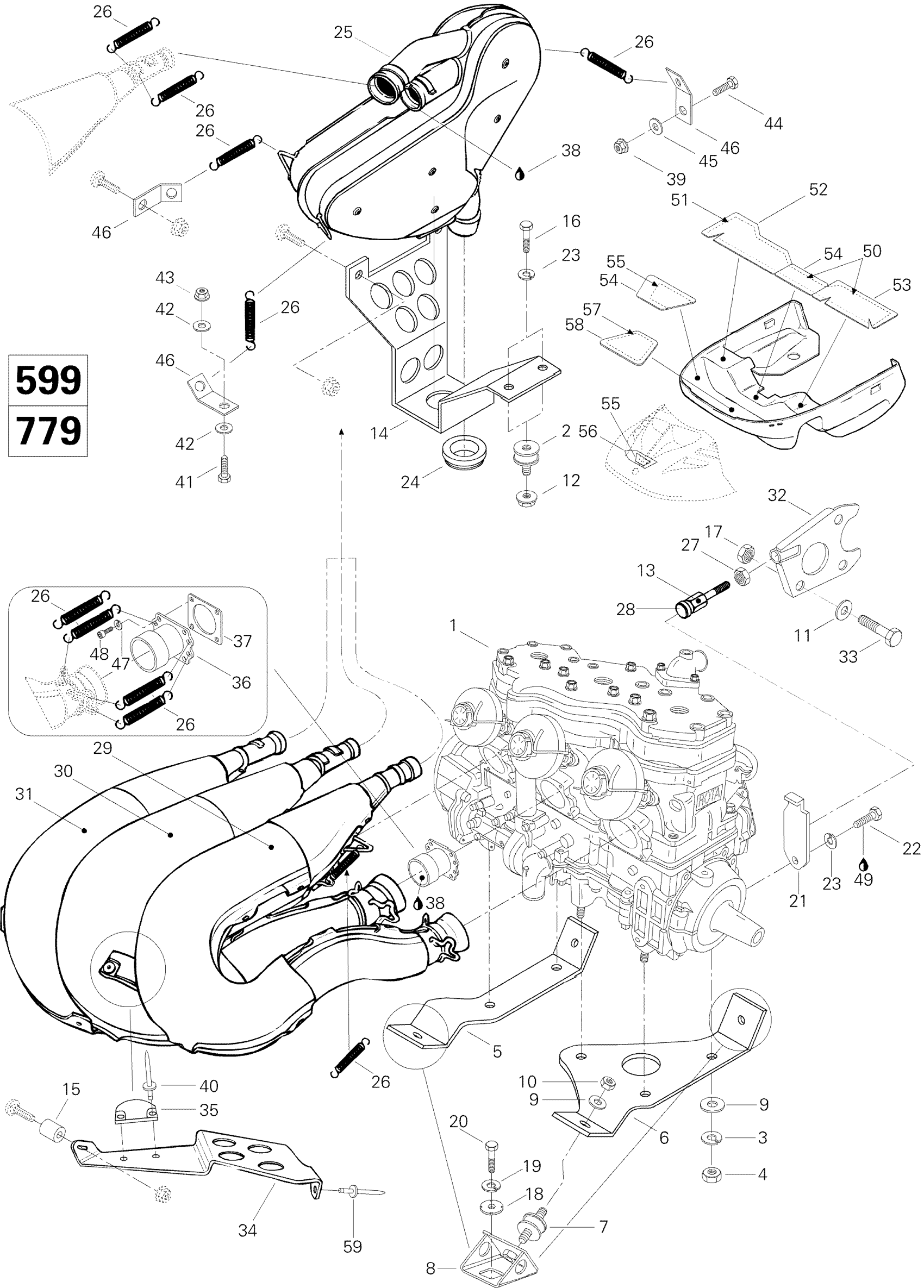

Ski-Doo Mach Z LT (2), 1996 01- Engine And Engine Support 779 Diagram

#

Description
Price

1

Engine «799»

400702600

Unavailable

2

Rubber Mount | Formula 500. Formula 500 Deluxe.

570016100

Unavailable

3

Lock Washer 10 mm

224701170

Unavailable

4

Hex. Nut M10 X 1.5

232006414

$1.37

5

Engine Support (MAG) | Mach Z. Mach Z-LT.

512047500

Unavailable

6

Engine Support (PTO) | Mach Z. Mach Z-LT.

512049200

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Engine Support

512050900

Unavailable

9

Flat Washer 10 mm

234001410

$1.26

10

Elastic Locking Nut M10 X 1.5

233601416

$1.69

11

Flat Washer 8 mm

234081410

$0.83

12

Hex. Flange Elastic Nut M8

233281414

$1.47

13

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

14

Support (Muffler)

514031900

Unavailable

15

Spacer

517277700

Unavailable

16

Screw Hex. M8 x 12 | Formula 500. Formula 500 Deluxe.

222081265

Unavailable

17

Hex. Elastic Stop Nut M8

232581414

$0.56

18

Lock Washer

512056700

$3.17

19

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

20

Hex. Screw M10 X 25

207102544

$1.37

21

Stopper Plate | Formula Deluxe 583.

512049100

Unavailable

22

Not Available As Spare Parts

XXX

Unavailable

23

Lock Washer 8 mm

234181401

$0.92

24

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

25

Muffler

580648000

Unavailable

26

Spring

415107100

$6.35

27

Nut Hexagonal RH.

232026414

$1.48

28

Rod retainer

570025100

Unavailable

29

Tuned Pipe (PTO) | Mach Z. Mach Z-LT.

514040600

Unavailable

30

Tuned Pipe (Central) | Mach Z. Mach Z-LT.

514040700

Unavailable

31

Tuned Pipe (MAG)

514040800

Unavailable

32

Plate | Mach Z. Mach Z-LT.

512053500

Unavailable

33

Hex. Screw M8 X 25

207182544

$0.90

34

Support,Tuned Pipe

514043000

Unavailable

35

Rubber Pad

570044100

Unavailable

36

Exhaust Socket | Formula III 600.

420978816

Unavailable

37

Gasket

420850552

$8.85

38

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

40

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

41

Hex. Screw M5 X 20

207152044

$0.90

42

Flat Washer

224061201

$1.37

43

Hex. Flange Elastic Nut M5

233251414

$1.04

44

Hex. Screw M6 X 16

207161644

$0.74

45

Flat Washer

224060201

$1.26

46

Spring Bracket

514054522

$8.45

47

Lock Washer M6, Black

234161471

$0.53

48

Socket Head Screw M6 X 25

205062544

$1.15

49

Loctite 271, 10 ml

293800005

$26.99

50

Insulator

514043700

Unavailable

51

Insulator

514043600

Unavailable

52

Sheet-Reflective

414917100

Unavailable

53

Sheet-Reflective

414918300

Unavailable

54

Sheet-Reflective

414918400

Unavailable

55

Insulator

514039000

Unavailable

56

Sheet-Reflective

414947400

Unavailable

57

Insulator

514039000

Unavailable

58

Sheet-Reflective

414930900

Unavailable

59

Pop Rivet 3/16"

390906800

$0.93
