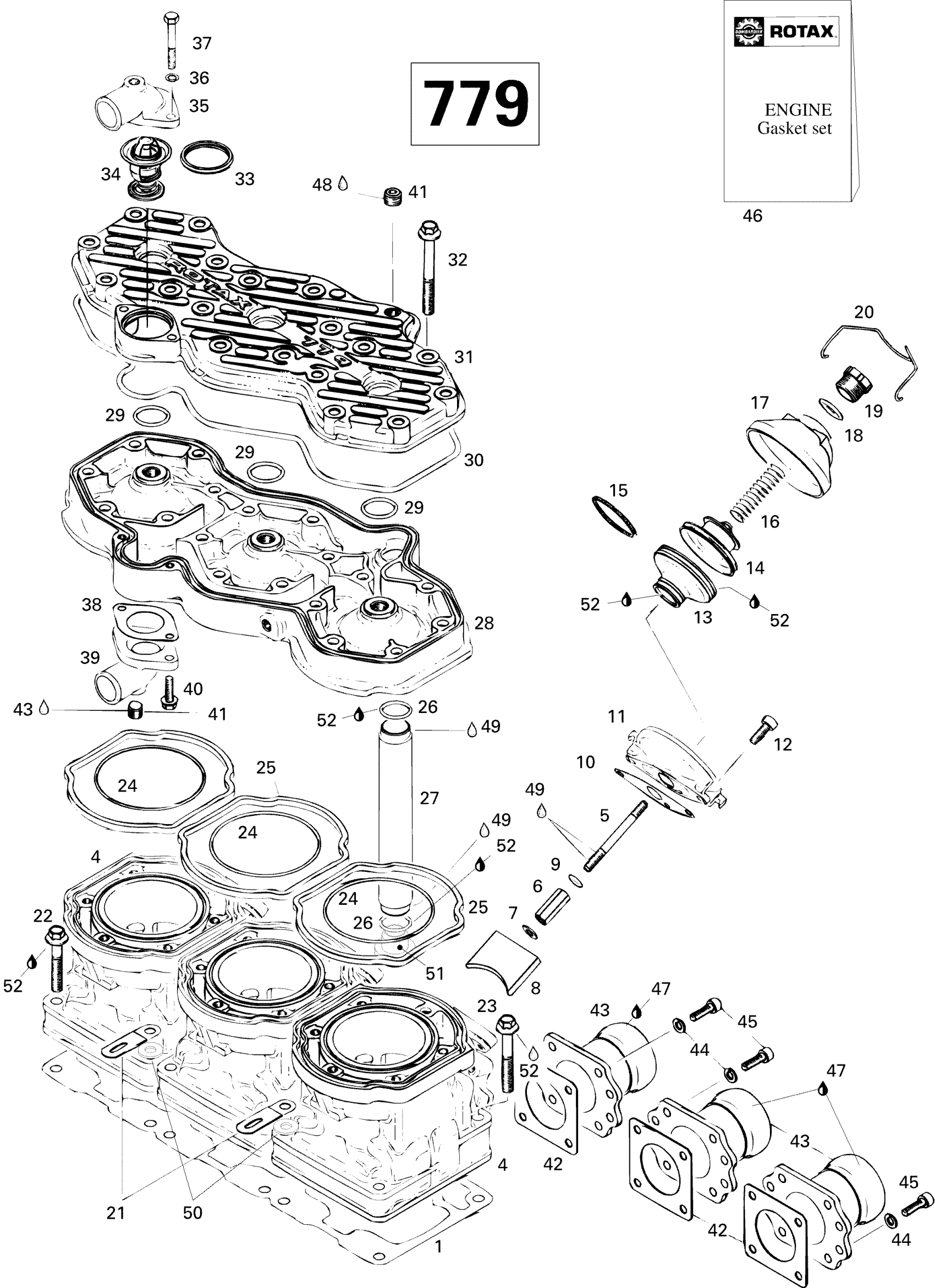

Ski-Doo Mach Z LT (2), 1996 01- Cylinder And Exhaust Manifold 779 Diagram

#

Description
Price

1

Base Gasket Set | Includes 1 to 3

420950275

Unavailable

1

Gasket 0.4 mm

420950271

Unavailable

2

Gasket 0.6 mm

420950272

Unavailable

3

Gasket 0.3 mm

420950273

Unavailable

4

Cylinder With Sleeve Ass‘y

420913339

Unavailable

5

Valve Rod

420854270

Unavailable

6

Distance Nut M6

420842734

Unavailable

7

Flat Washer

224061121

$0.53

8

Exhaust Valve

420854252

Unavailable

9

O-RING - Call your local BRP dealership

420230260

Unavailable

10

Gasket

420250233

Unavailable

11

Valve Rod Housing

420854262

Unavailable

12

Socket Head Screw M6 x 16

420241237

$2.22

13

Exhaust Bellows

420260723

$42.49

14

EXHAUST VALVE - Call your local BRP dealership

420253255

Unavailable

15

Hose Spring This part replaces 420239048.

420939281

$7.41

16

SPRING - Call your local BRP dealership

420239941

$6.99

17

Valve Cover

420911552

$38.99

18

O-Ring

420430225

Unavailable

19

Adjuster Screw

420241221

$14.22

20

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

21

Cable Fixation

420953140

Unavailable

22

Hex. Collar Screw M8 x 45

420640432

$8.57

23

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

24

O-Ring | Grand Touring 500.

420831792

$15.89

25

Rubber Ring

420230960

Unavailable

26

O-Ring

420430373

$3.17

27

Water Tube

420922450

Unavailable

28

Cylinder Head (Plum)

420913631

Unavailable

29

O-Ring

420430782

$5.39

30

O-RING - Call your local BRP dealership

420950310

Unavailable

31

Cylinder Head Cover (Plum)

420913646

Unavailable

32

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

33

SEALING RING - Call your local BRP dealership

420931270

Unavailable

34

Thermostat This part replaces 414834100.

420922519

$63.99

35

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

36

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

37

Hex. Screw M6 X 40

207064044

$1.48

38

Gasket

420850338

$11.60

39

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

40

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

41

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

42

Gasket

420850552

$8.85

43

Exhaust Socket | Formula III 600.

420978816

Unavailable

44

Lock Washer M6, Black

234161471

$0.53

45

Socket Head Screw M6 X 25

205062544

$1.15

46

Gasket Set

420886246

Unavailable

47

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

48

Loctite 243, 10 ml

293800060

$21.49

49

Sealant Loctite 648

219703000

$45.99

50

Flat Washer 8.4 mm

420250315

$1.15

51

Stop Plug | Mach Z. Mach Z-LT.

420922590

Unavailable

52

Dow Corning 111, 150 g

413707000

$59.99
