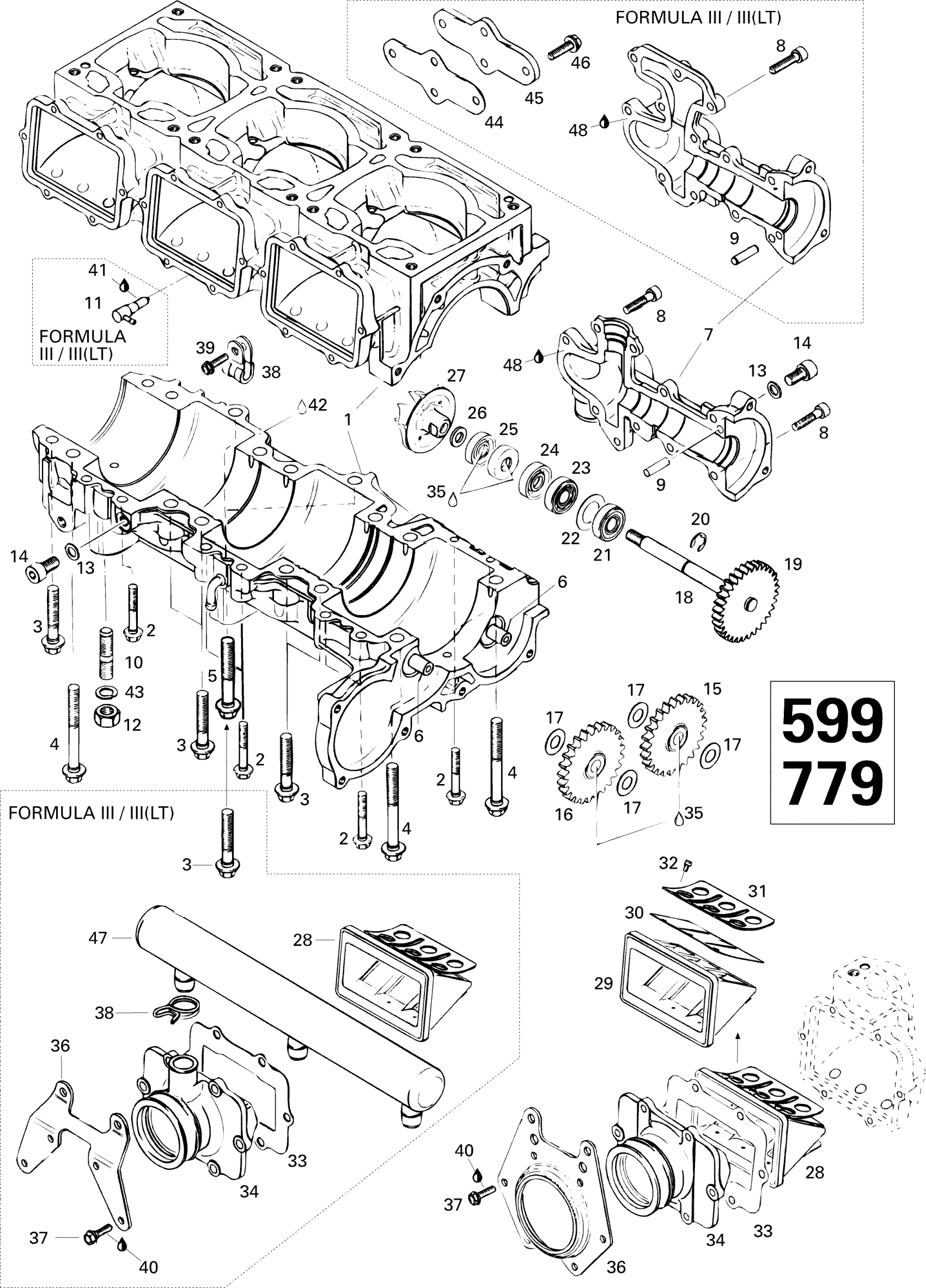

Ski-Doo Mach Z LT (2), 1996 01- Crankcase (779) Diagram

#

Description
Price

1

Crankcase Water Pump Cover Ass‘y | Includes 1 to 10

420887361

Unavailable

2

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

3

Hex. Collar Screw M8 x 45

420640432

$8.57

4

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

$7.65

5

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

6

INTERMEDIATE GEAR SHAFT - Call your local BRP dealership

420929935

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Socket Head Screw M6 X 25

205062544

$1.15

9

Dowel Pin

420429230

Unavailable

10

Stud M10 x 25

420940400

Unavailable

11

Not Available As Spare Parts

XXX

Unavailable

12

Hex. Nut M10 X 1.5

232006414

$1.37

13

Sealing Ring

420950141

$2.00

14

Socket Head Screw M8 x 16

420440191

Unavailable

15

Sprocket 32 T | Formula III 700 R.

420834266

Unavailable

16

SPROCKET, 32 TEETH - Call your local BRP dealership

420834267

Unavailable

17

THRUST WASHER - Call your local BRP dealership

420927952

Unavailable

18

Waterpump - Shaft/Gear Ass'y | Includes 18 - 19.

420837325

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

RETAINING RING - Call your local BRP dealership

420845390

Unavailable

21

Bearing_Ball - Call your local BRP dealership

420832490

Unavailable

22

SHIM 1 MM - Call your local BRP dealership

420944466

Unavailable

23

Ball Bearing

420232100

$20.99

24

Oil Seal

420230195

$15.36

25

OIL SEAL - Call your local BRP dealership

420950400

Unavailable

26

Distance Shim

420827795

Unavailable

27

Water Impeller | Formula III 600.

420922440

Unavailable

28

Reed Valve Ass‘y | Includes 28 to 32

420924518

Unavailable

29

Reed Valve

420924512

Unavailable

30

Reed Pedal

420924532

$42.49

31

Reed Pedal Stop

420924537

Unavailable

32

Phillips Screw M3 X 5

420941215

$1.69

33

GASKET 1 MM - Call your local BRP dealership

420950292

Unavailable

34

Carburetor Adaptor

420867770

Unavailable

35

Dow Corning 111, 150 g

413707000

$59.99

36

Carburetor Socket Carrier

420851220

Unavailable

37

Hex. Tapping Screw M5 X 20

420841555

$1.69

38

Clamp

420851110

$14.22

39

Tapping Screw M5 X 22

420841550

$1.69

40

Loctite 243, 10 ml

293800060

$21.49

41

Not Available As Spare Parts

XXX

Unavailable

42

Sealant, 100 gr

413707100

Unavailable

43

Lock Washer | Touring E. Touring E LT (2). Touring LE.

420945753

Unavailable

44

Not Available As Spare Parts

XXX

Unavailable

45

Not Available As Spare Parts

XXX

Unavailable

46

Not Available As Spare Parts

XXX

Unavailable

47

Not Available As Spare Parts

XXX

Unavailable

48

Not Available As Spare Part - Friction Washer

Unavailable

49

Fittin 90D

420924802

$3.49
