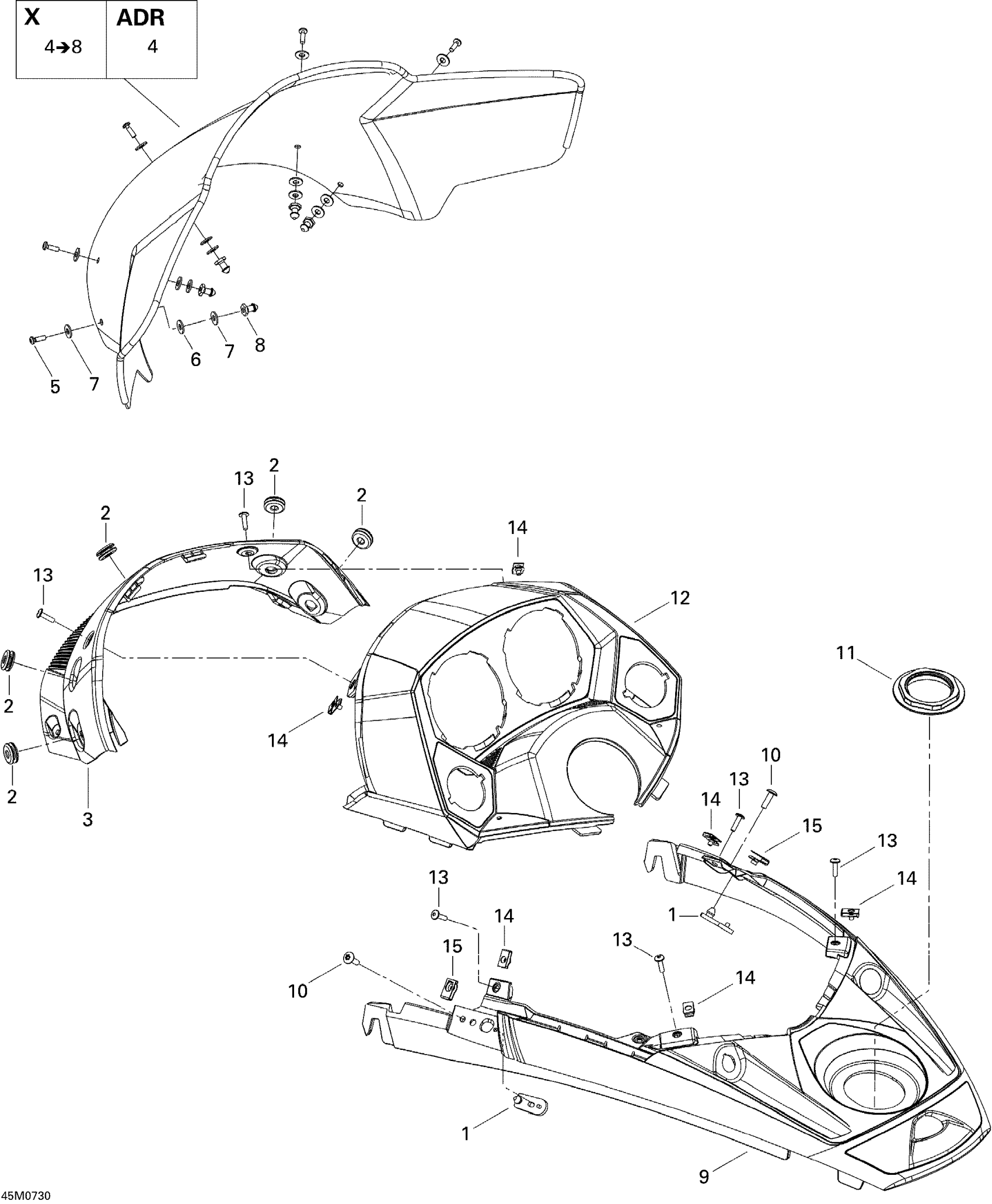

Ski-Doo MACH Z Adrenaline, 2007 09- Windshield And Console ADR Diagram

#

Description

Price

1

HOOD LATCH - Call your local BRP dealership

517302616

Unavailable

2

Grommet

517302841

$7.89

3

INDICATOR SUPPORT DOOR - Call your local BRP dealership

517303219

Unavailable

4

Low Windshield

517303140

Unavailable

5

Torx Screw K50 X 16

250000720

$1.69

6

Rubber Washer 5 mm

250200024

$2.19

7

Washer M5

250200025

$0.74

8

Knob

517303439

$4.55

9

CENTER CONSOLE - Call your local BRP dealership

517303086

Unavailable

10

Torx Screw M6 X 20

250000722

$1.68

11

CONSOLE NUT - Call your local BRP dealership

517302575

Unavailable

12

INDICATOR SUPPORT - Call your local BRP dealership

517303357

Unavailable

13

Torx Screw M5 X 20

250000724

$1.69

14

Panel Nut M5 X 0.8

250000958

$4.23

15

Panel Nut M6 X 1.0

250100198

$2.11
