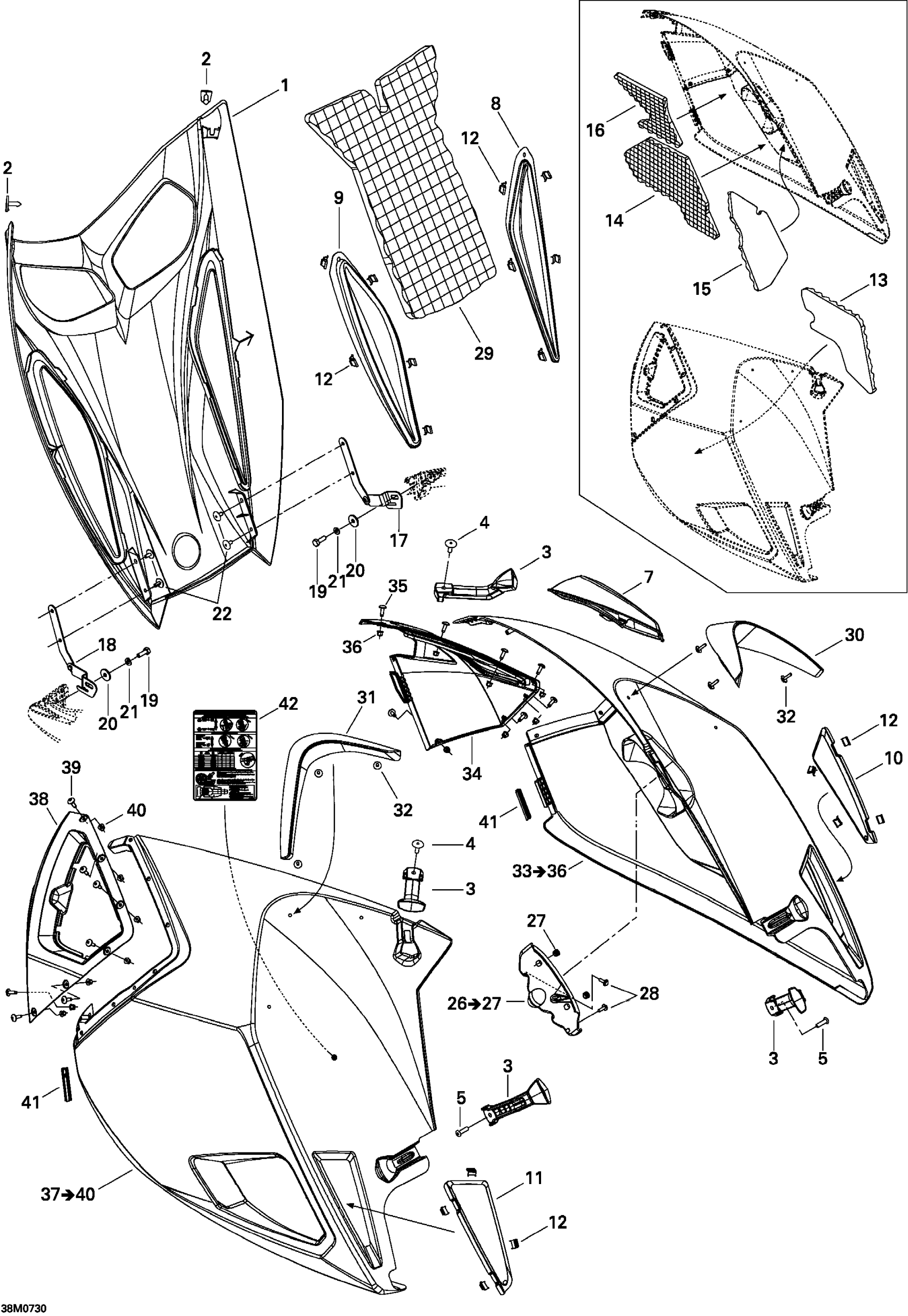

Ski-Doo MACH Z Adrenaline, 2007 09- Hood Diagram

#

Description
Price

1

Hood, Black

517302788

$234.99

2

ROD_RETAINING - Call your local BRP dealership

517302543

Unavailable

3

Panel Latch

517302448

$14.99

4

Pop Rivet 3/16”

293150087

$0.93

5

Pop Rivet 3/16”

390410100

$0.57

7

MUFFLER GRILL - Call your local BRP dealership

517303434

Unavailable

8

RH HOOD GRILL - Call your local BRP dealership

517303710

Unavailable

9

LH HOOD GRILL - Call your local BRP dealership

517303709

Unavailable

10

RH PANEL GRILL - Call your local BRP dealership

517303227

Unavailable

11

LH PANEL GRILL - Call your local BRP dealership

517303228

Unavailable

12

CLIP - Call your local BRP dealership

517302789

Unavailable

13

LH PANEL FOAM - Call your local BRP dealership

517303392

Unavailable

14

RH PANEL FOAM - Call your local BRP dealership

517303393

Unavailable

15

RH PANEL FOAM - Call your local BRP dealership

517303394

Unavailable

16

RH PANEL FOAM - Call your local BRP dealership

517303454

Unavailable

17

RH HINGE ASS'Y - Call your local BRP dealership

517303668

Unavailable

18

LH HINGE ASS'Y - Call your local BRP dealership

517303669

Unavailable

19

Hex. Screw M6 X 18

207161844

$0.76

20

Flat Washer

224061121

$0.53

21

Lock Washer M6, Black

234161471

$0.53

22

Pop Rivet 3/16"

390406500

$0.88

26

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

27

Black, Cap

275500241

$3.49

28

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

29

HOOD FOAM - Call your local BRP dealership

517303493

Unavailable

30

RH AIR DEFLECTOR, KNEES - Call your local BRP dealership

517303143

Unavailable

31

LH AIR DEFLECTOR, KNEES - Call your local BRP dealership

517303142

Unavailable

32

Screw M4 X 16

250000725

$3.49

33

RH Panel Ass'y | Includes 33 to 36

517303361

Unavailable

34

RH Pannel Hub

517303106

Unavailable

35

TORX SCREW M5 - Call your local BRP dealership

250000255

Unavailable

36

HEX NUT NYLON 10/32 - Call your local BRP dealership

250100058

Unavailable

37

LH PANEL ASS'Y - Call your local BRP dealership | Includes 37 to 40

517303359

Unavailable

38

LH PANNEL HUB - Call your local BRP dealership

517303105

Unavailable

39

TORX SCREW M5 - Call your local BRP dealership

250000255

Unavailable

40

HEX NUT NYLON 10/32 - Call your local BRP dealership

250100058

Unavailable

41

Hinge Lock

517302823

$13.99

42

DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership

516002616

Unavailable
