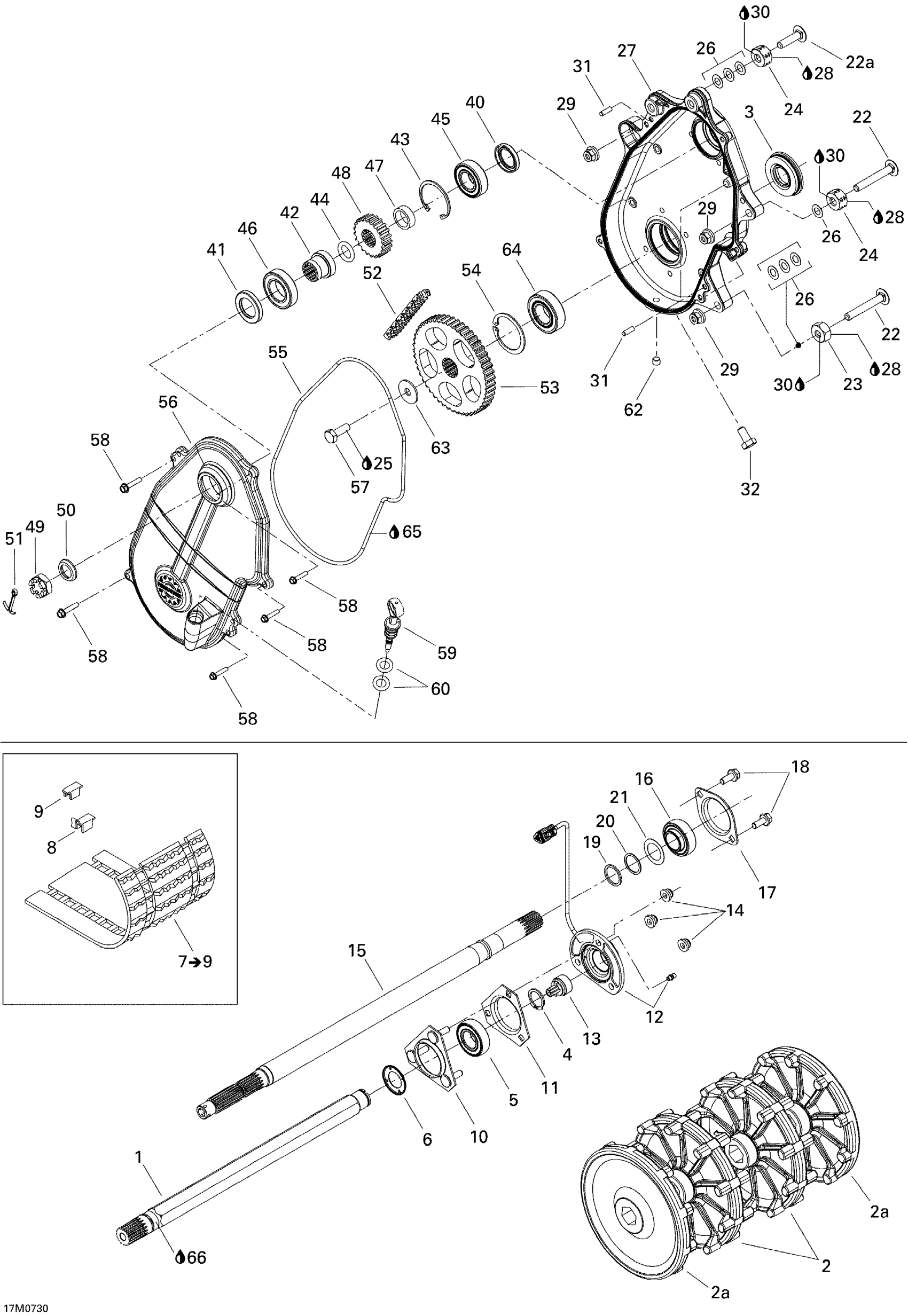

Ski-Doo MACH Z Adrenaline, 2007 05- Drive System ADR Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

504152424

Unavailable

2

SPROCKET, 10 TEETH - Call your local BRP dealership

504152198

Unavailable

2a

HALF SPROCKET, 10 TEETH - Call your local BRP dealership

504152199

Unavailable

3

Oil Seal Ass'y

504151918

$20.49

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 15" X 121" X 1" Ass'y

504152446

Unavailable

8

Track Guide | Track Width 16''

415129528

$3.29

9

Cleat

504152651

$9.69

10

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

SENSOR - Call your local BRP dealership

504152409

Unavailable

13

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

14

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Counter Shaft

504152432

Unavailable

16

Ball Bearing Kit This part replaces 504152535.

415129555

$56.99

17

BEARING HOUSING ASS'Y - Call your local BRP dealership

504153089

Unavailable

18

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

19

Spacer

417300252

$5.49

20

Spacer

417300265

$2.29

21

Shim

504112000

$8.59

22

CARRIAGE BOLT M10 - Call your local BRP dealership

250000164

Unavailable

22a

CARRIAGE BOLT M10 - Call your local BRP dealership

250000165

Unavailable

23

Spacer

504083800

Unavailable

24

SPACER - Call your local BRP dealership

504152524

Unavailable

25

Loctite 271, 10 ml

293800005

$26.99

26

WASHER - Call your local BRP dealership

504073700

Unavailable

27

CHAIN CASE - Call your local BRP dealership

504152308

Unavailable

28

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

29

Hex. Flange Elastic Nut M10

233201414

$1.58

30

Loctite 243, 10 ml

293800060

$21.49

31

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

Unavailable

32

Hex. Screw M10 X 20, Scotch Grip

207302044

Unavailable

40

OIL SEAL - Call your local BRP dealership

504152544

Unavailable

41

OIL SEAL - Call your local BRP dealership

504152545

Unavailable

42

SPACER - Call your local BRP dealership

504152400

Unavailable

43

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

44

O-RING - Call your local BRP dealership

293300109

Unavailable

45

Ball Bearing

293350115

$12.11

46

Ball Bearing

504152418

$23.99

47

SHIM - Call your local BRP dealership

504152398

Unavailable

48

SPROCKET, 29 TEETH - Call your local BRP dealership

504152442

Unavailable

49

HEX. CASTLE NUT 20 X 1.5 - Call your local BRP dealership

250100079

Unavailable

50

Cap

504152523

Unavailable

51

PIN COTTER - Call your local BRP dealership

371006300

Unavailable

52

CHAIN, 82 LINKS - Call your local BRP dealership

504152415

Unavailable

53

SPROCKET, 49 TEETH - Call your local BRP dealership

504152412

Unavailable

54

CIRCLIP, INTERIOR - Call your local BRP dealership

415064300

Unavailable

55

O-RING - Call your local BRP dealership

504152299

Unavailable

56

COVER - Call your local BRP dealership

504152416

Unavailable

57

Hex. Screw M10 X 30

207103044

$1.48

58

Hex. Flange Screw M6 X 30 | International

210263050

$2.09

59

FILLER CAP ASSY. - Call your local BRP dealership

504152322

Unavailable

60

O-RING - Call your local BRP dealership

414969400

Unavailable

62

Plug 1/8”-27

504151921

$4.19

63

Washer 10 mm

506150000

$2.74

64

Ball Bearing

504152005

$46.49

65

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

66

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
